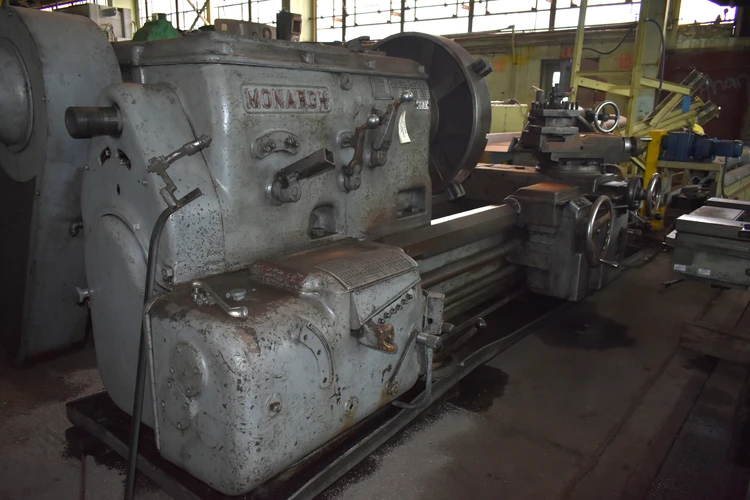

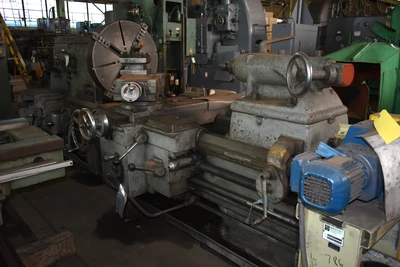

40/40.5" X 60" MONARCH "32NN" HEAVY-DUTY ENGINE LATHE w/32” 4-JAW CHUCK - POWER RAPID TRAVERSE
Have one to sell?
$19,500.00 USD
ConditionUsed
1 available
40"/40.5" x 60" MONARCH "32NN HEAVY-DUTY"
ENGINE LATHE
Serial No 41820, Model 32NN, Series "NN32 HEAVY-DUTY"
32" 4-Jaw Chuck
Hard Ways - 4-Way Tool Post
Threading Dial - Power Rapid Traverse
Tailstock (Heavy-Duty Design)
Hole Thru Spindle 2.1875"
Swing Over Bed Ways, Rated 40"
Swing Over Bed Ways, Actual 40.5"
Swing Over Cross-Slide 28"
Distance Between Centers 60"
Cross-Slide Cross-Feed Travel 19"
Cross-Slide Compound-Rest Travel 7"
(16) Spindle Speeds, Range 8 to 405 RPM
(48) Carriage Longitudinal Feeds .006 to .383 IPR
(48) Thread Changes, Range 1/2 to 28 TPI
Overall Dimensions, L x D 15'8" x 8'8"
Weight, Approximately 23300 LBS
F.O.B. OUR WAREHOUSE
