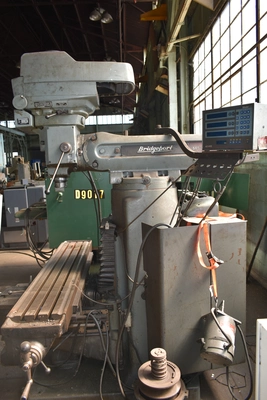

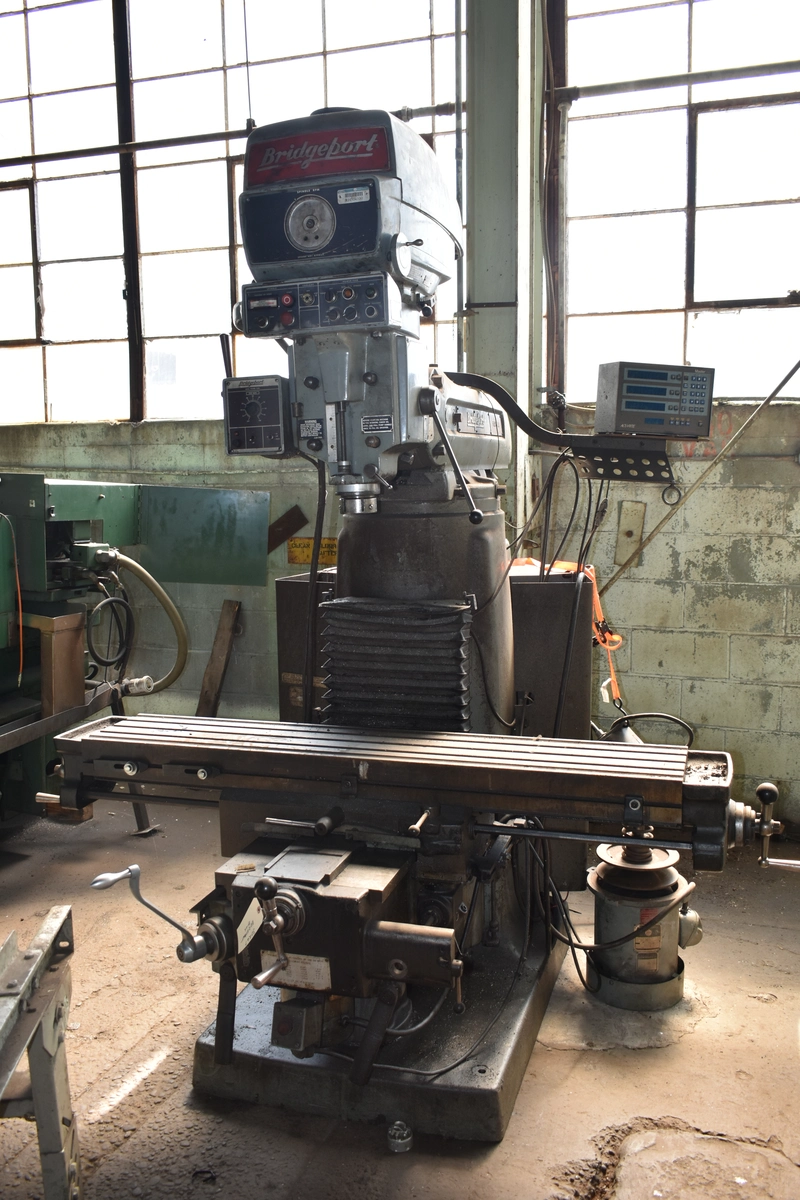

4 HP BRIDGEPORT "4J” SERIES-II MANUAL VERTICAL MILL - MANUAL TABLE TRAVELS ONLY - POWER DOWN FEED TO SPINDLE

Table Dimensions (Overall), W x L 11" x 58"

Table Longitudinal Travel (X-Axis) 30"

Saddle Cross Travel (Y-Axis) 15"

Knee Vertical Travel (Z-Axis) 16"

Quill Travel 5"

Throat Distance, Minimum 10.625"

Throat Distance, Maximum 26.625"

Workpiece Load Capacity, Maximum 1500 LBS

Quill Diameter 4.25"

Spindle-Nose, Diameter 2.125"

Spindle Taper #40

Spindle-Head Swivel Degrees, L-R 90-DEGREES

Spindle-Head Swivel Degrees, F-B 30-DEGREES

Spindle Speeds, Infinitely Variable 50 to 3500 RPM

Spindle Motor, Horsepower/RPM 4 HP/ 1740 RPM

Floor Space Required, W x D 10' x 7'

Overall Height 7'9"

Weight, Approximately 5220 LBS

NOTE: Power Table Travels Have Been Disabled. Machine Can

Be Used Manually And We Are Selling AS-IS

F.O.B. OUR WAREHOUSE
