8-5/8" x 8-5/8" AMADA "CSW-220" HYDRAULIC CORNER & EDGE NOTCHER w/8 TON CAPACITY - FOOT PEDAL CONTROL
Have one to sell?
$3,450.00 USD
ConditionUsed
1 available

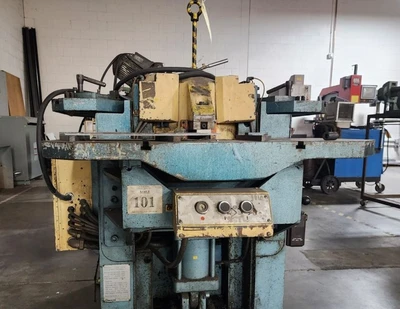

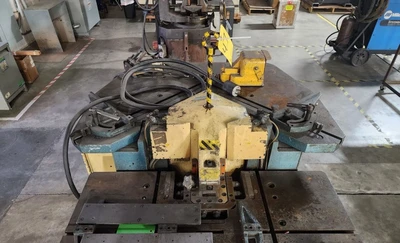

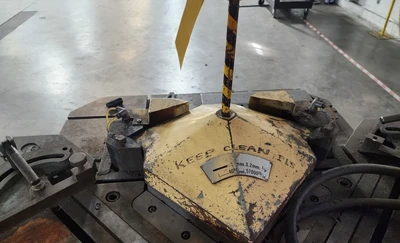

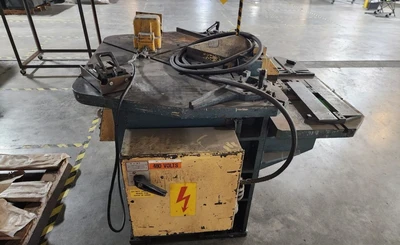

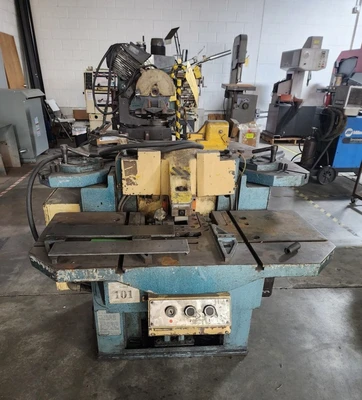

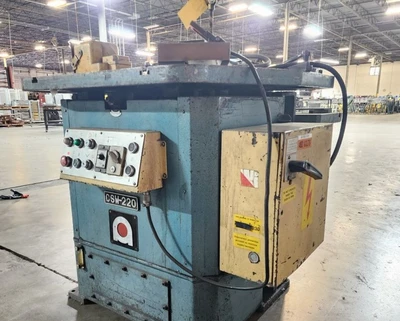

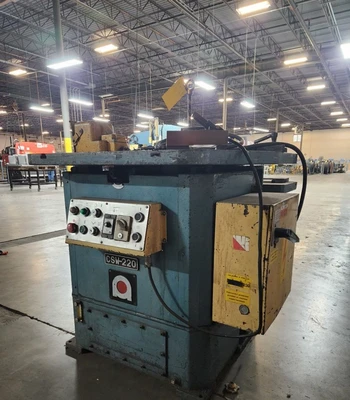

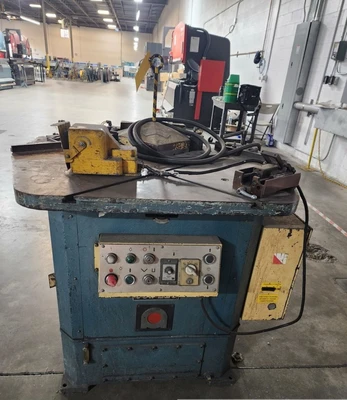

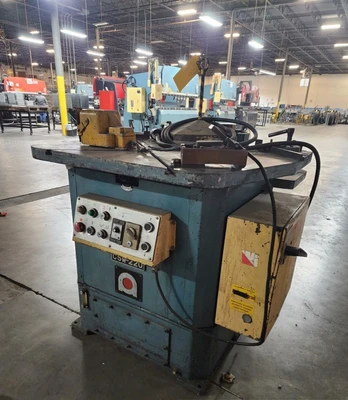

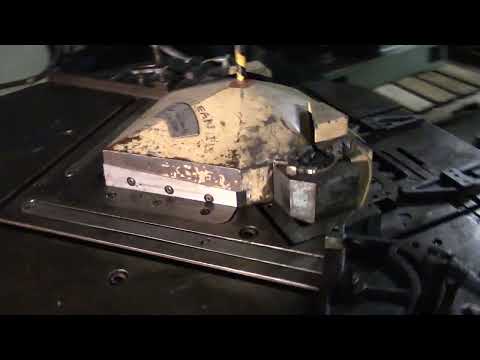

CSW-220 AMADA HYDRAULIC CORNER & EDGE NOTCHER

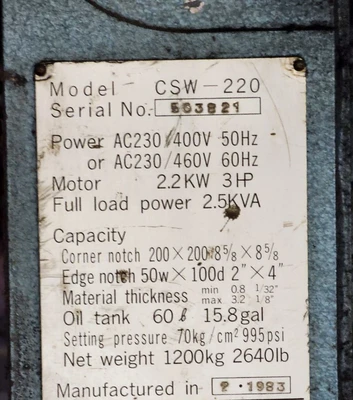

Serial No 503821, Model CSW-220,
Corner Notcher - Edge Notcher

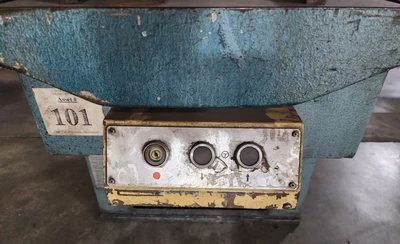

Foot Pedal
Tonnage Capacity, Maximum 8 TONS
Ram Stroke Length, Maximum 7/8" 22 MM
Thickness Capacity, Maximum 1/8" 3.2 MM
Thickness Capacity, Minimum 1/32" 0.8 MM
Corner Notch Capacity 8-5/8" x 8-5/8"
Corner Notch Capacity 200 MM x 200 MM
Edge Notch Capacity, W x D 2" x 4"
Edge Notch Capacity, W x D 50 MM X 100 MM
Strokes Per Minute 36 SPM
Operating Pressure 1000 PSI
Oil Tank Capacity 15.8 GALLONS 60 L
Motor Horsepower 3 HP 2.2 KW
Overall Dimensions, W x D 42" x 32"
Overall Height 45"
Weight, Approximately 2640 LBS 1200 KG
F.O.B. OUR WAREHOUSE
