36" BLANCHARD "18C36" VERTICAL-SPINDLE ROTARY SURFACE GRINDER w/SEGMENTED GRINDING WHEEL - 25 HP MOTOR - BUILT-IN COOLANT SYSTEM

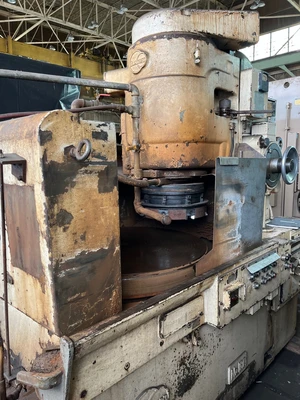

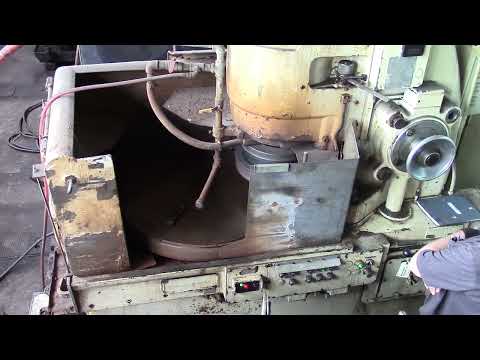

36" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER

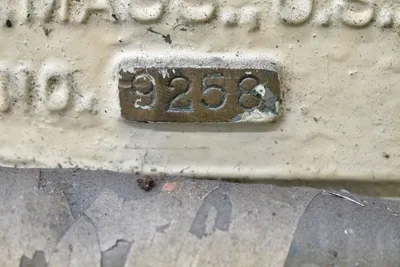

Serial No 9258, Model 18C36

EQUIPPED WITH:
Vertical-Spindle Machine Design

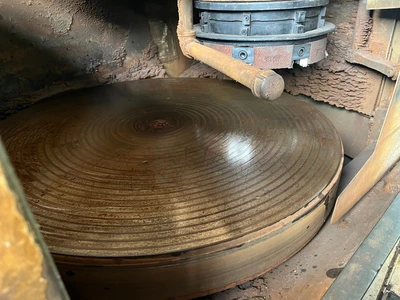

36" Diameter Magnetic Chuck

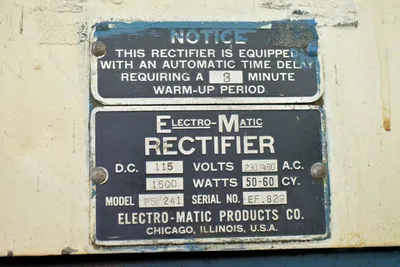

w/Rectifier and Neutrol
Segmented Grinding Wheel
Built In Coolant System

CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 36"
Magnetic Chuck Work Load Capacity 3000 LBS
Height Under Grinding Wheel, Maximum 12"
Grinding Wheel Diameter, Maximum 18"
Grinding Wheel Speed 720 RPM
(6) Chuck Speeds, Range 6 to 33 RPM
Spindle Motor, Horsepower 25 HP
Table Motor, Horsepower/RPM 2 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 9'7" x 4'10"
Weight, Approximately 12900 LBS
F.O.B. OUR WAREHOUSE
