10' x 16 GA ROTO-DIE "10" HYDRAULIC PRESS BRAKE w/FOOT PEDAL CONTROL - 3” STROKE - 7.5 HP MOTOR
Have one to sell?
$8,950.00 USD
ConditionUsed
1 available

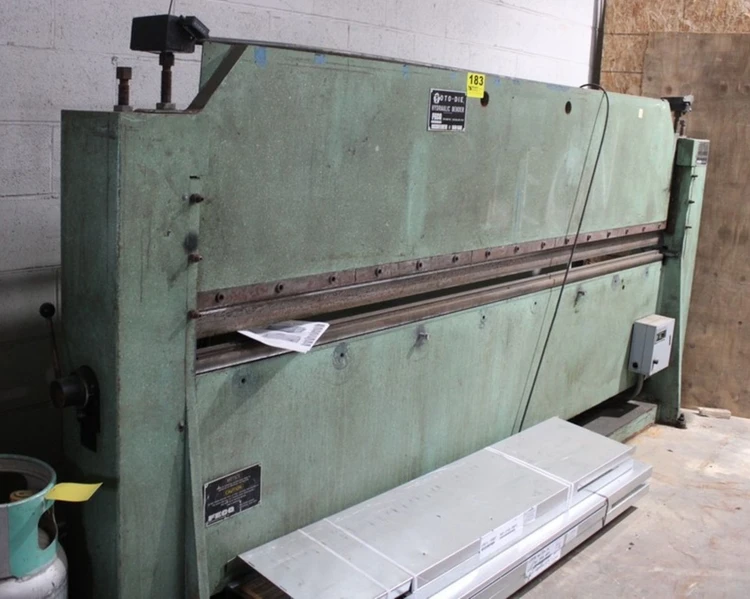

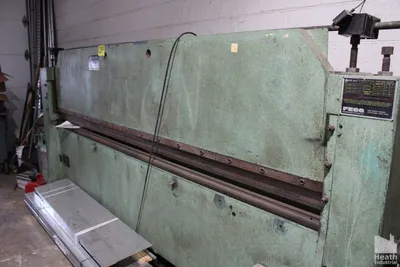

10' x 16 GA ROTODIE HYDRAULIC PRESS BRAKE

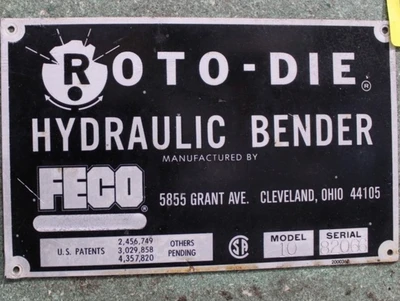

Serial No 82066, Model 10
Foot Pedal Control

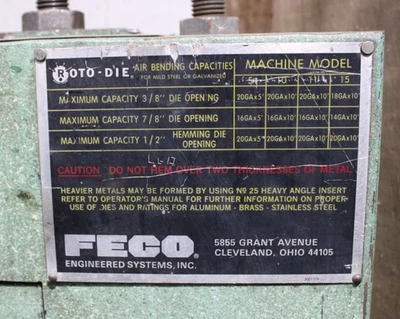

Bending Capacity, w/7/8" Die Opening 10' x 16 GA
Bending Capacity, w/1/2" Die Opening 10' x 20 GA
Bending Capacity, w/Angle Insert 6' x 10 GA
Stroke Length 3"
Die Space 7.5"
Die Clearance 2.125"
Strokes Per Minute, Range 20 to 50 SPM
Bed & Ram Plate, Thickness 2.25"
Bed & Ram Depth 25"
Bed & Ram Length 123"
Hydraulic Motor, Horsepower/RPM 7.5 HP/1755 RPM
Electrical System 208-230-460/3/60
Overall Dimensions, L x D 12'1" x 1'10"
Overall Height 5'4"
Weight, Approximately 5700 LBS
F.O.B. OUR WAREHOUSE
