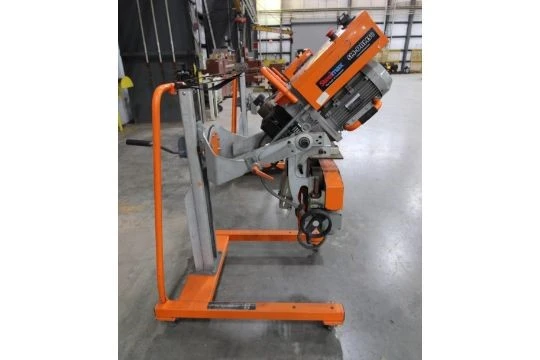

2-3/4" STEELMAX "DBM50" SELF-PROPELLED DOUBLE-SIDED PLATE BEVELER

2-3/4" STEELMAX DOUBLE-SIDED PLATE BEVELER
New 2014, Serial No 21914, Model DBM50

EQUIPPED WITH:
180-Degree Inversion For Double-Sided Bevel
Rotary Milling Head
Portable 3D Trolley

CATALOG SPECIFICATIONS:
Material Thickness, Range 1/4" to 2-3/4"
Material Thickness, Range 7 to 70 MM
Minimum Material Dimension 7-7/8" x 3-1/16"
Minimum Material Dimension 200 MM x 100 MM
Bevel Angle, Infinitely Variable 15 to 60-DEGREES
Automatic Feed Speed, Range 6 to 43 IPM
Automatic Feed Speed, Range .17 to 1.1 MPM
Bevel Width @15-Degrees, Maximum 2.44" 62 MM
Bevel Width @45-Degrees, Maximum 1.97" 50 MM
Bevel Width @60-Degrees, Maximum 2.05" 52 MM
Milling Head Motor, Horsepower 5.36 HP
(2) Auto-Feed Motors, Horsepower .16 HP EACH
Weight Approximately 386 LBS 175 KG
F.O.B. OUR WAREHOUSE
