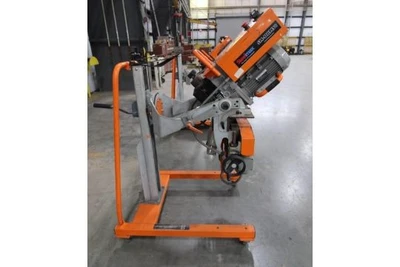

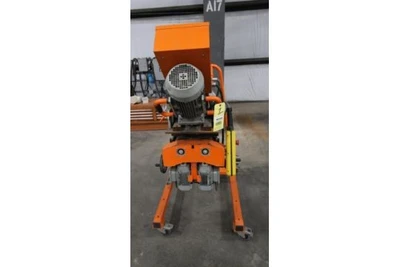

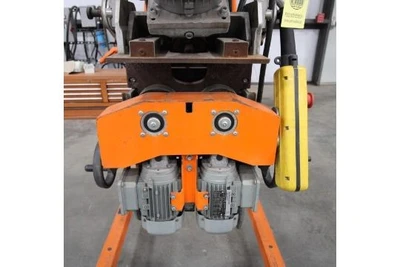

2-3/4" STEELMAX "DBM50" DOUBLE-SIDED PLATE BEVELING MACHINE w/ROTARY MILLING HEAD - 180-DEGREE INVERSION

Material Thickness, Range 1/4" to 2-3/4"

Material Thickness, Range 7 to 70 MM

Minimum Material Dimension 7-7/8" x 3-1/16"

Minimum Material Dimension 200 MM x 100 MM

Bevel Angle, Infinitely Variable 15 to 60-DEGREES

Automatic Feed Speed, Range 6 to 43 IPM

Automatic Feed Speed, Range .17 to 1.1 MPM

Bevel Width @15-Degrees, Maximum 2.44" 62 MM

Bevel Width @45-Degrees, Maximum 1.97" 50 MM

Bevel Width @60-Degrees, Maximum 2.05" 52 MM

Milling Head Motor, Horsepower 5.36 HP

(2) Auto-Feed Motors, Horsepower .16 HP EACH

Weight Approximately 386 LBS 175 KG

F.O.B. OUR WAREHOUSE
