12" X 40" TOS "4RB-1000A" FULLY-AUTOMATIC HYDRAULIC HORIZONTAL-SPINDLE SURFACE GRINDER w/ELECTRO-MAGNETIC CHUCK

Have one to sell?

sales@mohawkmachinery.com

$8,950.00 USD

ConditionUsed

Quantity

1 available

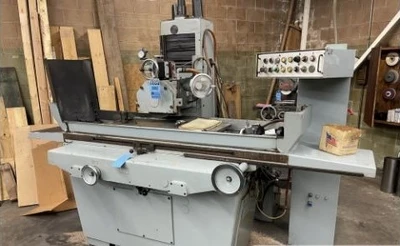

TOS URB-1000A Surface & Way Grinders | Mohawk Machinery (1)

TOS URB-1000A Surface & Way Grinders | Mohawk Machinery (2)

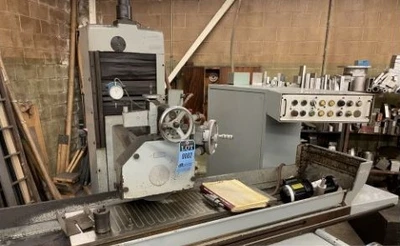

TOS URB-1000A Surface & Way Grinders | Mohawk Machinery (3)

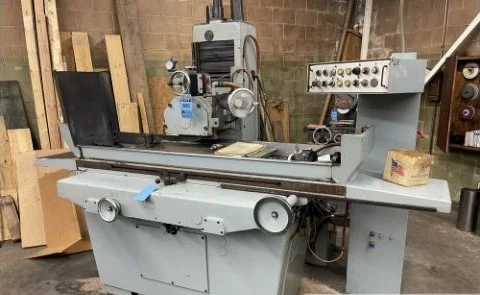

TOS URB-1000A Surface & Way Grinders | Mohawk Machinery (4)

TOS URB-1000A Surface & Way Grinders | Mohawk Machinery

Have one to sell?

Overview

Type:

Surface & Way Grinders

Manufacturer:

Model:

URB-1000A

Stock #:

TW348

Status:

For Sale

Description

12" x 40" TOS FULLY-AUTOMATIC HYDRAULIC-FEED

HORIZONTAL-SPINDLE SURFACE GRINDER

Serial No 7309-83, Model URB-1000A

Equipped With

Electro-Magnetic Chuck

Overhead Wheel Dresser

Automatic Power Down Feed (Coarse Or Fine)

Coolant System (Tank & Pump)

Specifications

ImperialMetric

Table-W	12"	304.8 mm
Table-L	59"	1,498.6 mm
Horz/Vert	'Horz'	'Horz'
Power	5.5 hp	4.1 kW
Grinding Wheel Width	2"	50.8 mm
Grinding Wheel Dia.	20"	508 mm
Dimensions	12'11'' x 6'	12'11'' x 6'
Weight	6150 LBS	6150 LBS

Table Working Surface, W x L 12" x 59"

Height Spindle to Table, Maximum 20"

Table Cross Travel, Maximum 12"

Grinding Wheel Diameter, Standard 20"

Grinding Wheel Width, Standard 2"

Grinding Wheel Hole Diameter 5"

Table Longitudinal Feeds, Range 3.3 to 82 FPM

Cross Feeds Variable, Range .080 to .800 IPM

Vertical Fine Feed Graduation .00008"

Grinding Wheel Spindle Motor 5.5 HP

Floor Space Required, L x D 12'11" x 6'

Overall Height 8'4"

Weight, Approximately 6150 LBS

F.O.B. OUR WAREHOUSE
