23” X 60” JOHNFORD “SL650+C+Y” HEAVY-DUTY SLANT-BED CNC TURNING CENTER w/C-AXIS LIVE TOOLING & Y-AXIS
Have one to sell?
$64,500.00 USD
ConditionUsed
1 available

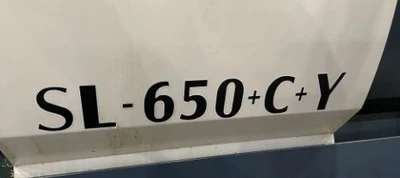

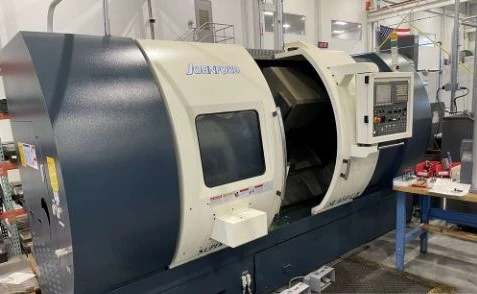

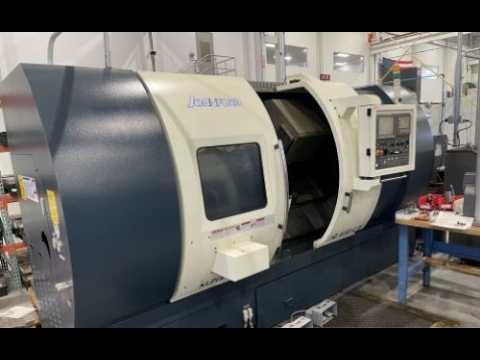

SL-650+C+Y JOHNFORD HEAVY-DUTY SLANT-BED CNC
TURNING CENTER w/C-AXIS & Y-AXIS
New 2013, Serial No TEQ130045, Model SL650+C+Y,

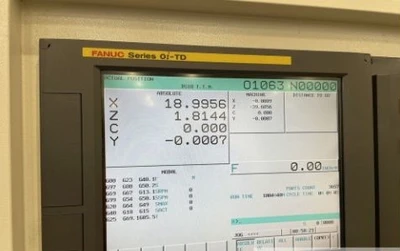

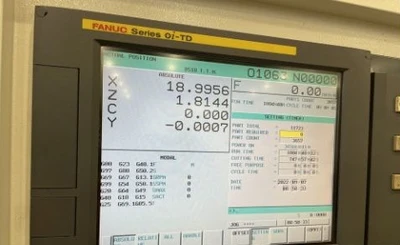

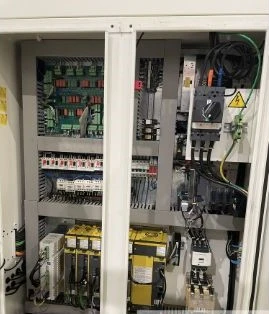

Fanuc Oi-TD CNC Control
C-Axis w/Live Tooling
Y-Axis Functionality

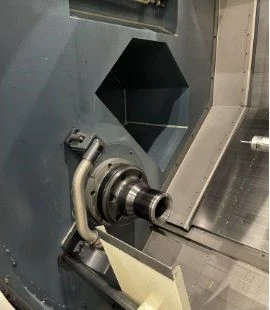

Collet Chuck - 10" 3-Jaw Chuck - Steady Rest

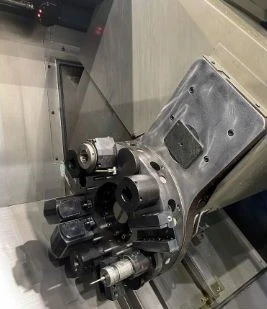

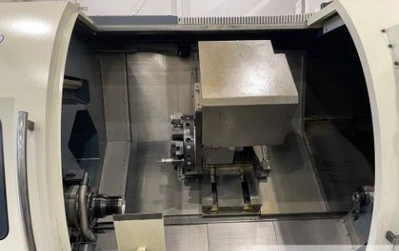

12-Position VSI Live Tooling Turret w/Tooling Shown
45-Degree Slant Bed Design
#A2-8 Spindle Nose
Hydraulic Programmable Tailstock

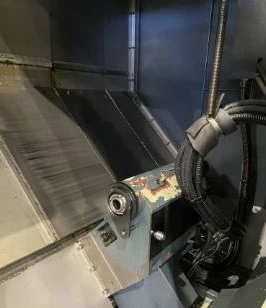

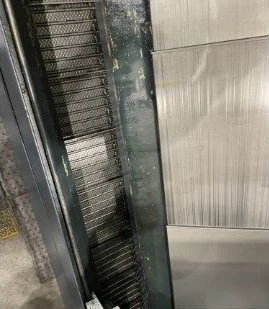

Chip Conveyor

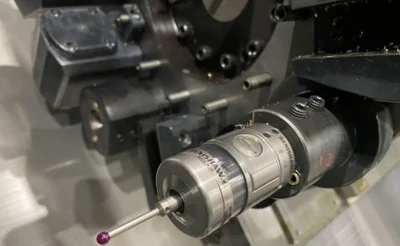

Renishaw Probe
Bar Capacity 3"
Swing Over Bed 22.8”
Swing Over Cross-Slide 17.7"
Distance Between Centers 60”
Cross Travel, X-Axis 9.8"
Longitudinal Travel, Z-Axis 55.1"
C-Axis Indexing 0.001-DEGREES
Spindle Speeds, Maximum 0 to 3500 RPM
Live Tooling Speed 3800 RPM
Rapid Traverse Rate, X Axis .......... 590 IPM
Rapid Traverse Rate, Z-Axis .......... 708 IPM
Main Motor Horsepower 25 HP
Live Tooling Motor Horsepower 7.5 HP
Floor Space Required, L x W x H 208" x 89" x 86"
Weight Approximately .......... 20000 Lbs.
F.O.B. OUR WAREHOUSE
