24" HEALD "361" HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER w/ELECTRO-MAGNETIC CHUCK - 15 HP SPINDLE MOTOR

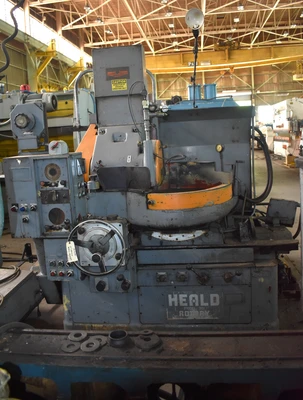

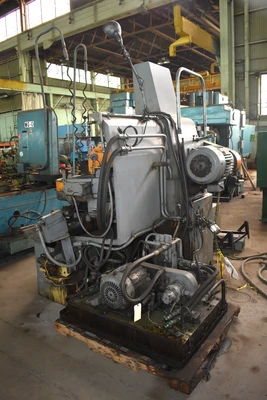

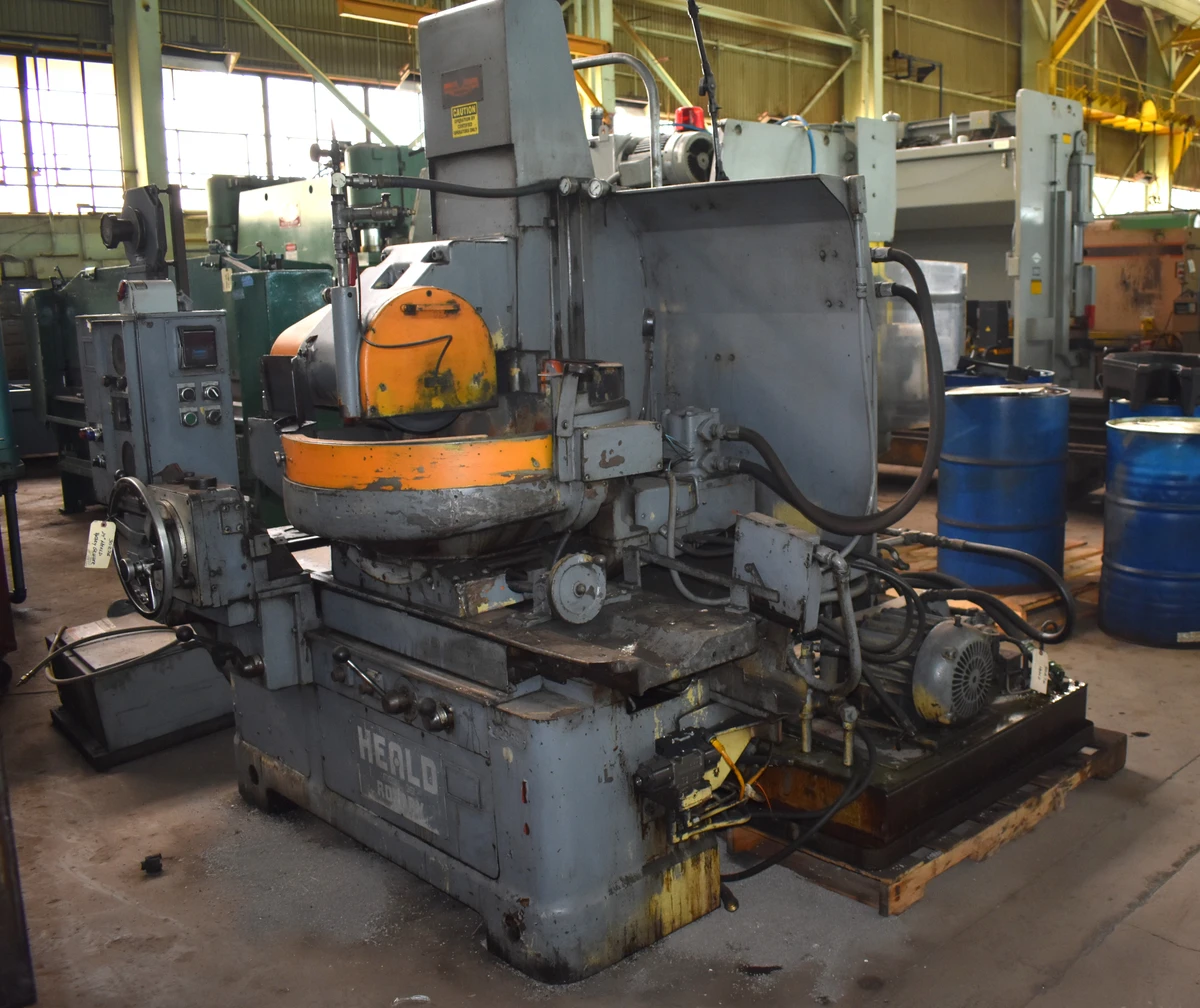

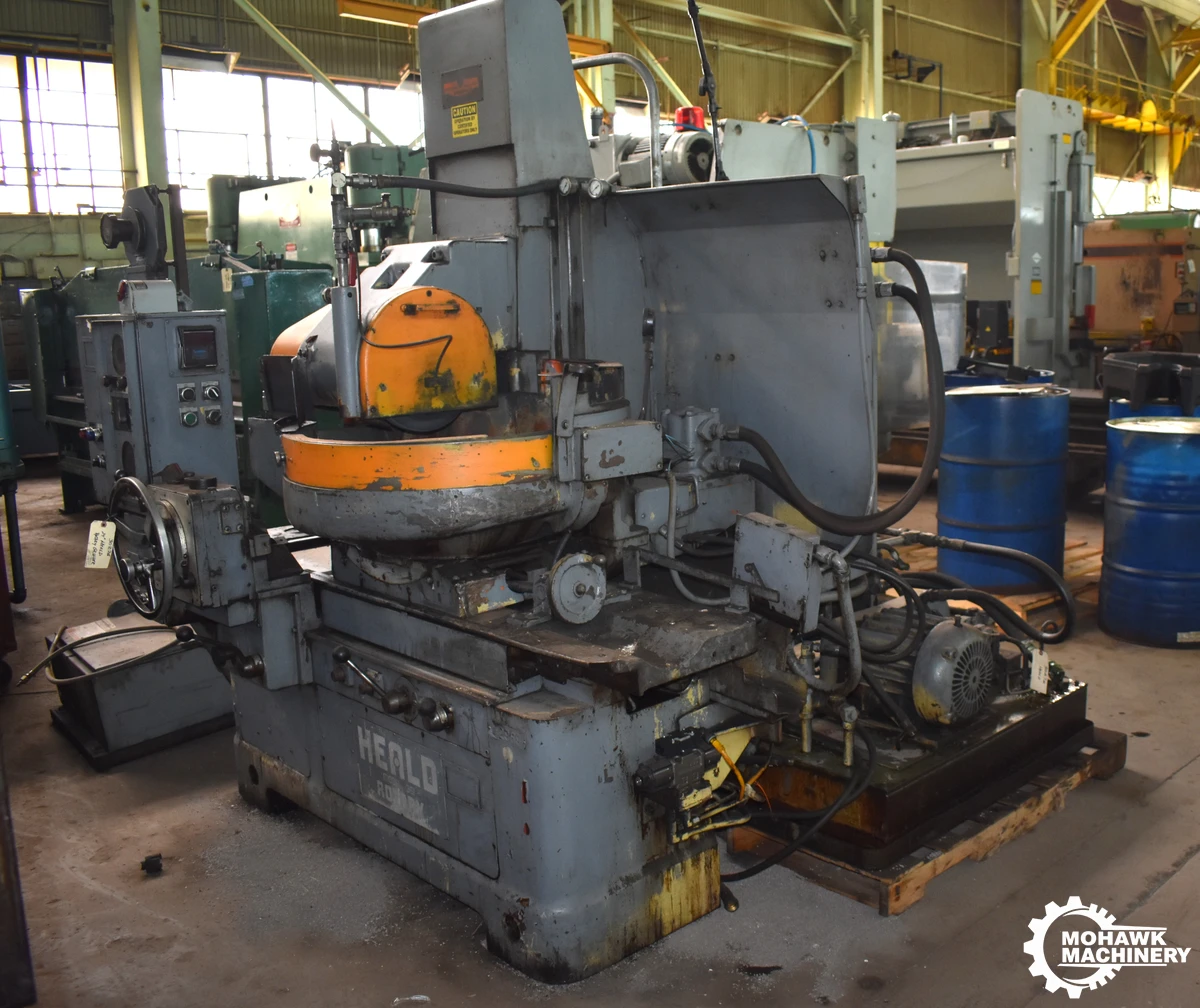

24" HEALD HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER
Serial No , Model 361

EQUIPPED WITH:
Horizontal-Spindle Machine Design

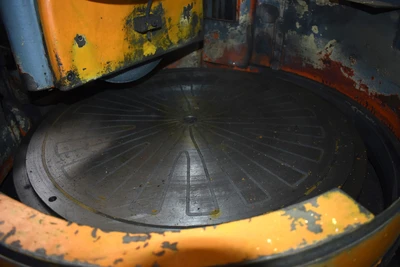

24" Diameter Electro-Magnetic Chuck

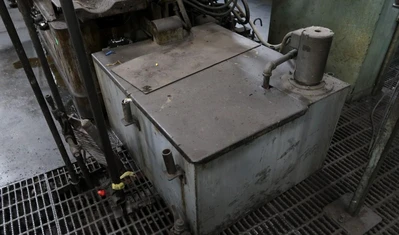

Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 24"
Swing With-in Coolant Guards 28"
Grinding Head Stroke, Horizontal 12"
Chuck Travel, Horizontal 16"
Spindle-Center to Chuck, Minimum 4.5"
Spindle-Center to Chuck, Maximum 17.5"
Grinding Wheel Diameter, Minimum 9"
Grinding Wheel Diameter, Maximum 14"
Grinding Wheel Width, Standard 1.5"
Grinding Wheel Hole Diameter 5"
Convex Table Angle Degrees, Maximum 17-DEGREES
Concave Table Angle Degrees, Maximum 10-DEGREES
Grinding Wheel Speeds, Maximum 1765 RPM
Chuck Speeds, Variable Range 38 to 100 RPM
Grinding Head Feeds, Range .0001 to .0005 IPM
Chuck Speeds for Grinding, Range 0 to 15 FPM
Chuck Speeds for Runout 20 FPM
Spindle Motor, Horsepower/RPM 15 HP/__ RPM
Hydraulic Motor, Horsepower/RPM 5 HP/__ RPM
Floor Space Required, W x D 9'7" x 6'7"
Overall Height 7'10"
Weight, Approximately 12000 LBS
F.O.B. OUR WAREHOUSE
