15" X 24" SUPERTEC "G38P-60NC" CNC UNIVERSAL CYLINDRICAL GRINDER w/MITSUBISHI PLC CONTROL & MITUTOYO DIGITAL READOUTS -COOLANT SYSTEM
Have one to sell?
$24,500.00 USD
ConditionUsed
1 available

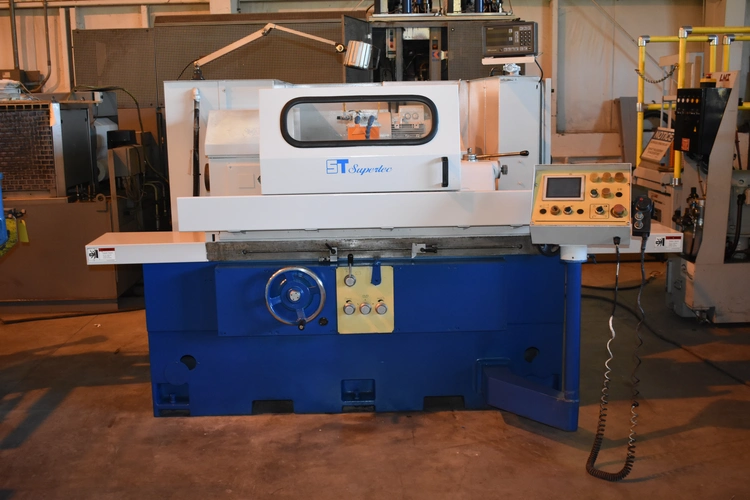

15" X 24" SUPERTEC UNIVERSAL CYLINDRICAL GRINDER

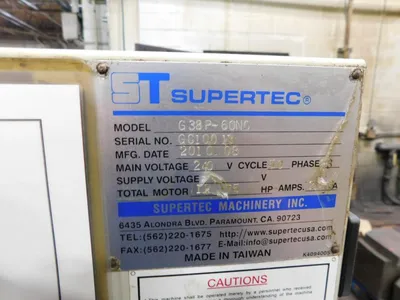

New 2010, Serial No. GC10013, Model G38P-60NC

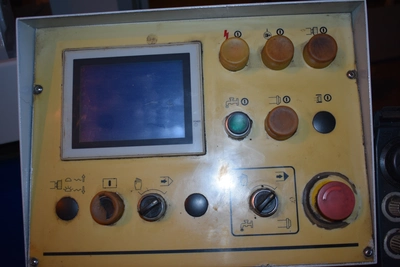

Mitsubishi PLC Control w/Mituttoyo DRO & Hand Held Pendant Control
Automatic Incremental Wheelhead Infeed

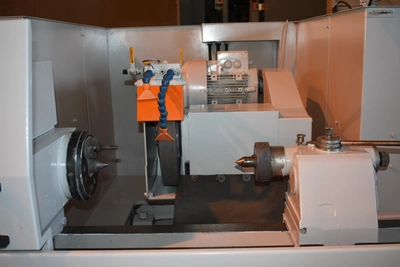

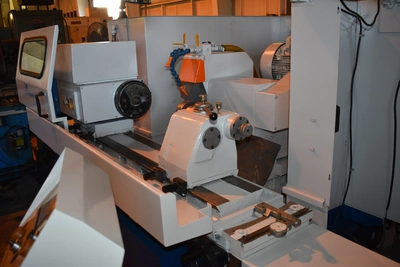

Combination Live/Dead Spindle Vari-Speed Workhead
Heavy-Ribbed Box-Type Meehanite Caste Base
Automatic Lubrication System

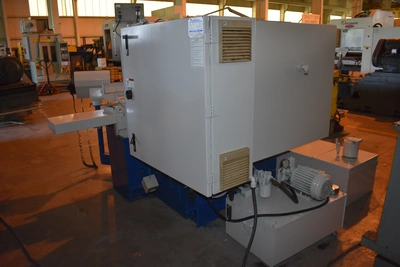

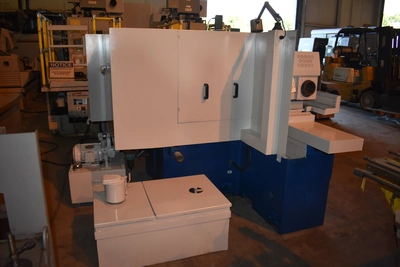

Coolant System (Tank & Pump)
Swing Over Table, Maximum 15"
Grinding Diameter, Maximum 14"
Distance Between Centers, Maximum 24"
Weight Capacity Between Centers 330 LBS
Grinding Wheel, Standard Diameter 16"
Grinding Wheel, Width 2"
Grinding Wheel, Hole Diameter 5"
Grinding Wheel Speeds 1650 RPM
Workhead Spindle Speeds 30 to 350 RPM
Longitudinal Table Feeds, Infinite 1.2 to 275 IPM
Wheelhead Incremental Feed, Range .002 to .0999"
Table Swivel Angle Range +/- 9 DEGREES
Workhead Swivel Angle, Range 90-DEGREES
Workhead & Tailstock Spindle Taper 4 MT
Wheelhead Motor, Horsepower 7.5 HP
Workhead Motor, Horsepower 2 HP
Electrical System 230/3/60
Overall Dimensions, L x W 119" x 90"
Overall Height 79"
Weight, Approximately 8560 LBS
F.O.B. OUR WAREHOUSE
