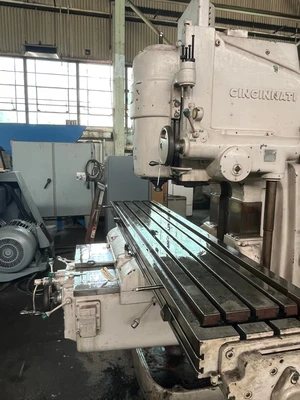

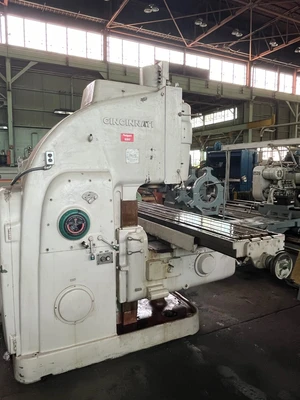

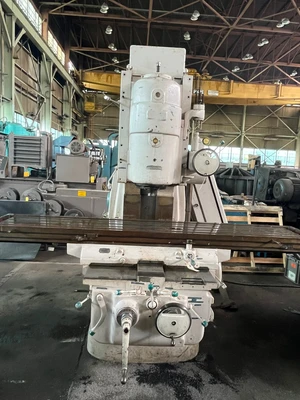

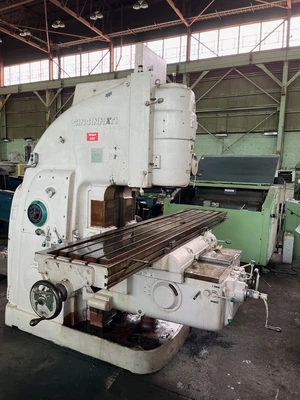

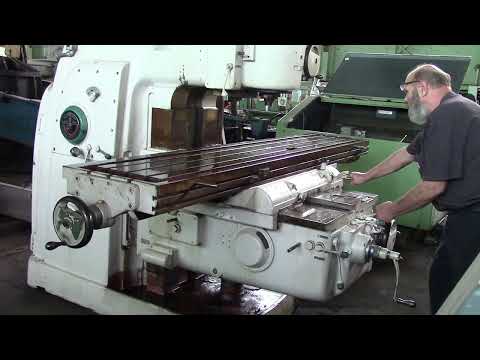

625-20 CINCINNATI-MILACRON "LA” HIGH-POWER DIAL-TYPE VERTICAL MILL w/20” x 105” TABLE - 25 HP SPINDLE MOTOR - WIDE KNEE & SADDLE

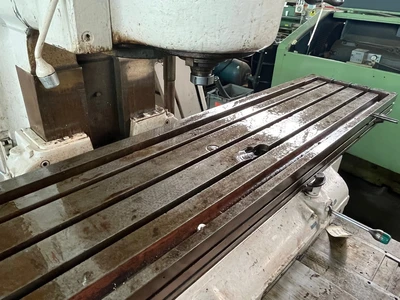

Table Size, Overall, L x W 20" x 104-1/2"

Table Working Surface, L x W 20" x 104-1/2"

Longitudinal Table Travel 60"

Cross Saddle Travel 18"

Vertical Knee Travel 16"

Spindle-Face to Table, Minimum 0"

Spindle-Face to Table, Maximum 22"

Spindle Taper #50 NSTD

(24) Spindle Speeds, Range 14 to 1400 RPM

(32) Longitudinal and Cross Feeds 3/8 to 90 IPM

(32) Vertical Feeds, Range 3/32 to 22.5 IPM

(32) Vertical Head Feeds, Range 3/16 to 45 IPM

Power Rapid Traverse, Long. & Cross 150 IPM

Power Rapid Traverse, Vertical 37.5 IPM

Power Rapid Traverse, Spindle Head 75 IPM

Spindle Motor, Horsepower 25 HP

Feed Motor, Horsepower 5 HP

Floor Space Required, W x D 11'3" x 15'3"

Weight, Approximately 18,100 LBS

F.O.B. OUR WAREHOUSE
