20" CLAUSING "2224" SINGLE-SPINDLE FLOOR-TYPE DRILL PRESS w/POWER DOWN FEED - ADJUSTABLE TABLE - #3 MT
Have one to sell?
$2,450.00 USD
ConditionUsed
1 available

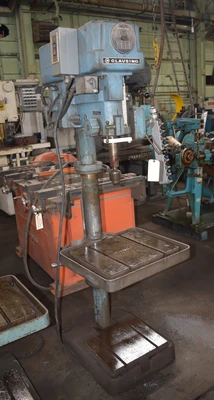

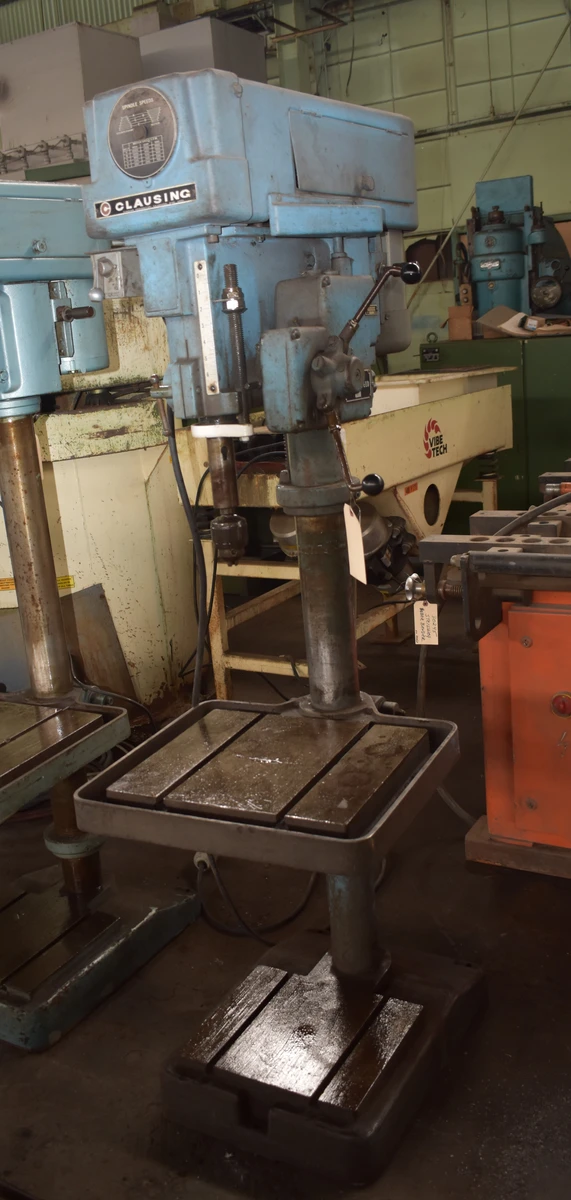

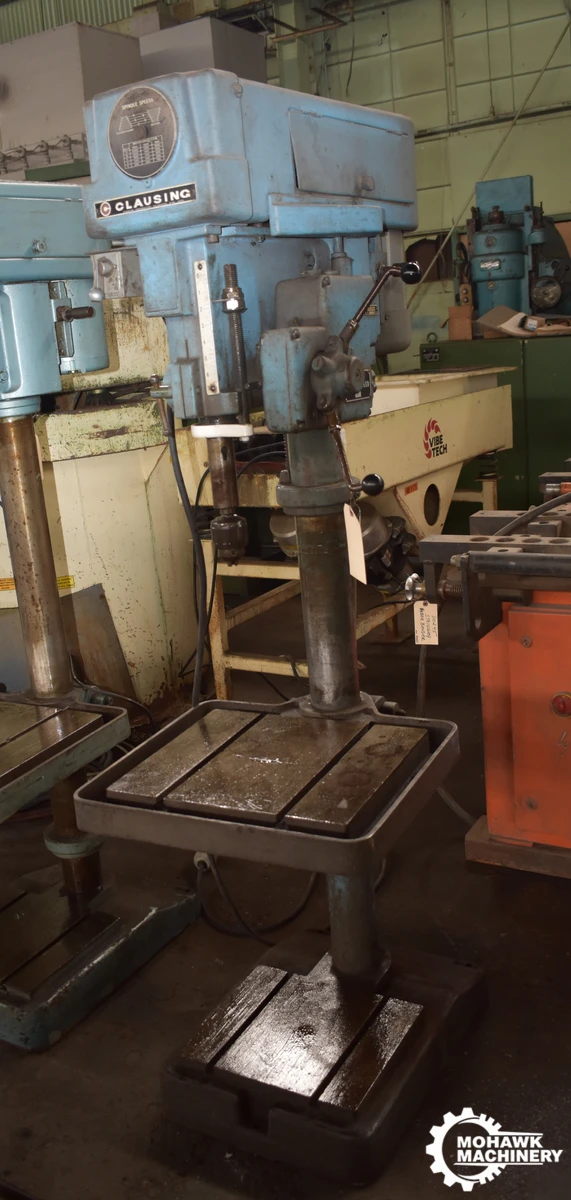

20" CLAUSING SINGLE-SPINDLE FLOOR DRILL
Serial No 106914, Model 2224
Power Down-Feed to Spindle
Adjustable Table
Round Column Design
Jacobs Chuck
Drilling Capacity, Hand Feed 1.25"
Drilling Capacity, Power Feed 1.125" CAST
Drilling Capacity, Power Feed .875" STEEL
Spindle Travel, Vertical 6.5"
Drill to Center of Circle, Maximum 20"
Table Working Surface, W x L 22" x 19.5"
Base Working Surface, W x L 15.5" x 13"
Spindle to Table, Maximum 33.125"
Spindle to Base, Maximum 43.375"
Quill Diameter 2.25"
Spindle Taper #3 MT
Spindle Speeds, Range, 150 to 2000 RPM
Spindle Feeds, Range .004 to .012 IPR
Spindle Motor, Horsepower 1.5 HP
Electrical System 220-440/3/60 Volts
Weight Approximately 650 LBS
F.O.B. OUR WAREHOUSE
