20" CLAUSING "2223" SINGLE-SPINDLE FLOOR-STANDING DRILL PRESS w/MANUAL DOWN FEED - ADJUSTABLE TABLE - #3 MT

Have one to sell?

sales@mohawkmachinery.com

$1,950.00 USD

ConditionUsed

Quantity

1 available

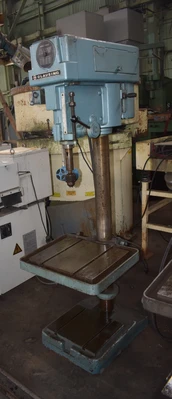

CLAUSING 2223 Single-Spindle Drills | Mohawk Machinery (1)

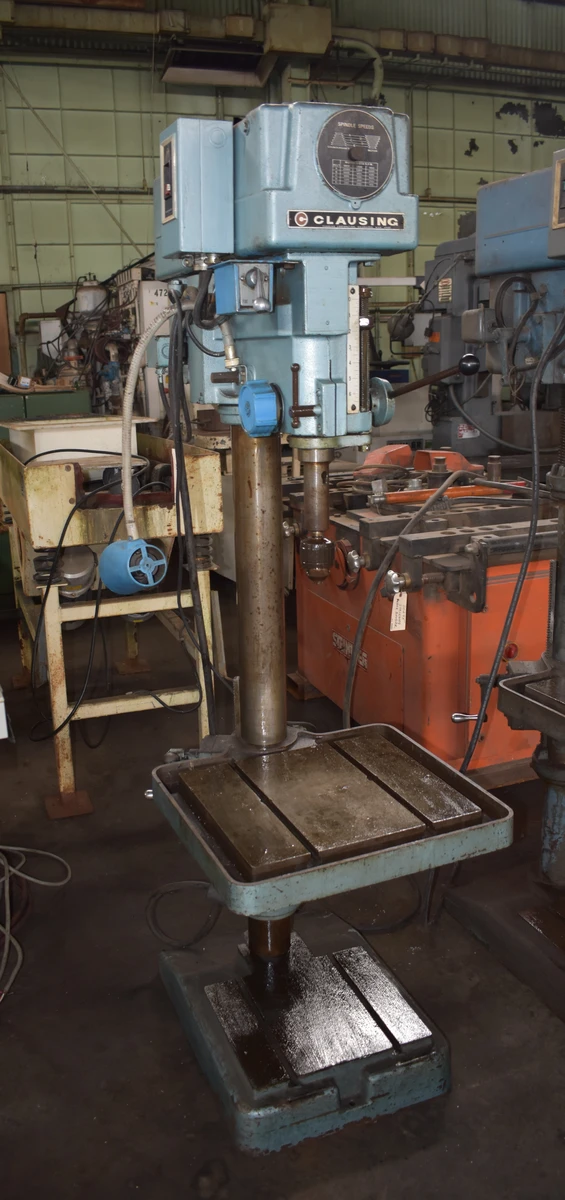

CLAUSING 2223 Single-Spindle Drills | Mohawk Machinery (2)

CLAUSING 2223 Single-Spindle Drills | Mohawk Machinery

Have one to sell?

Overview

Type:

Single-Spindle Drills

Manufacturer:

Model:

2223

Stock #:

30290

Status:

For Sale

Description

20" CLAUSING SINGLE-SPINDLE FLOOR DRILL

Serial No 106913, Model 2223

Equipped With

Manual Down-Feed to Spindle

Adjustable Table

Round Column Design

Jacobs Chuck

Specifications

ImperialMetric

Swing	20"	508 mm
Capacity (Mild Steel)	0.875"	22.225 mm
Capacity (Cast Iron)	1.125"	28.575 mm
Power	1 hp	0.7 kW
RPM	0 RPM	0 RPM
Weight	650	650

Drilling Capacity, Hand Feed 1.25"

Drilling Capacity, Power Feed 1.125" CAST

Drilling Capacity, Power Feed .875" STEEL

Spindle Travel, Vertical 6.5"

Drill to Center of Circle, Maximum 20"

Table Working Surface, W x L 22" x 19.5"

Base Working Surface, W x L 15.5" x 13"

Spindle to Table, Maximum 33.125"

Spindle to Base, Maximum 43.375"

Quill Diameter 2.25"

Spindle Taper #3 MT

Spindle Speeds, Range, 150 to 2000 RPM

Spindle Motor, Horsepower 1 HP

Electrical System 220-440/3/60 Volts

Weight Approximately 650 LBS

F.O.B. OUR WAREHOUSE
