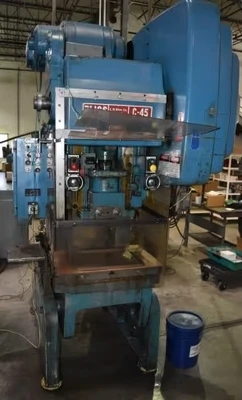

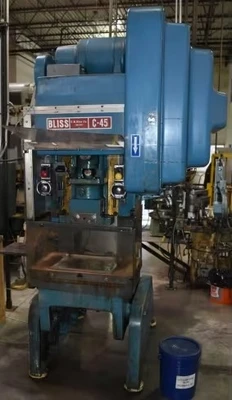

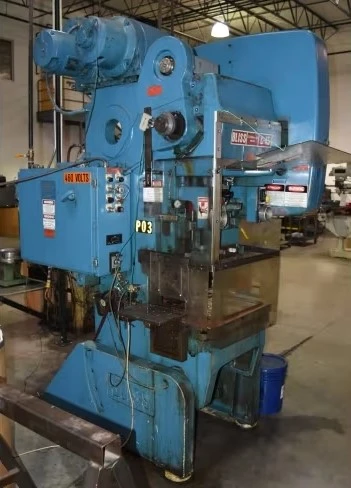

45 TON BLISS "C-45" FLYWHEEL-TYPE O.B.I. PRESS w/REEVES VARI-SPEED DRIVE - 29.5” X 18” BOLSTER PLATE - 3” STROKE
Have one to sell?
$19,500.00 USD
ConditionUsed
1 available
45 TON BLISS VARIABLE-SPEED O.B.I. PRESS
New 1985, Serial No. H70243, Order No. HP53581, Model C45

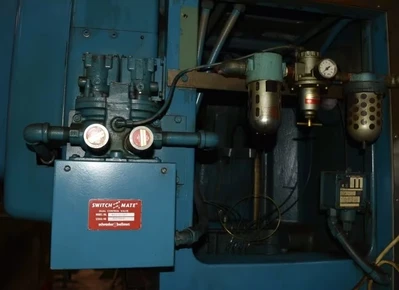

Air Clutch & Brake

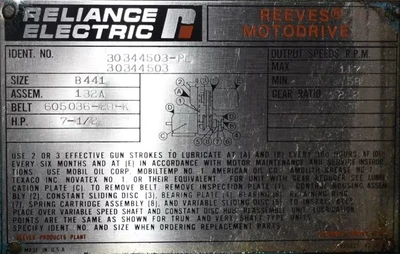

7-1/2 HP Reeves Vari-Speed Drive
2-1/3" T-Slotted Bolster Plate
Flywheel Type Design

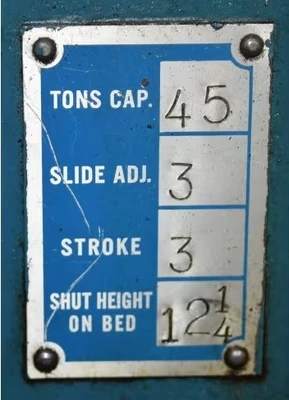

Tonnage Capacity (USA) 45 TON
Stroke Length 3"
Shut Height to Bed, (SDAU) 12-1/4"
Ram Adjustment, (Manual) 3"
Ram Area, L-R x F-B 16" x 10-1/2"
Bolster Area, L-R x F-B 29-1/2" x 18"
Bolster Thickness 2-1/2"
Throat Depth 9-1/2"
Incline Positions, Degrees 30-DEGREES
Strokes Per Minute Variable, Range 85 to 170 RPM
Drive Motor, Horsepower/RPM 7.5 HP
Overall Dimensions, W x D 4'4" x 5'3"
Overall Height 8'7"
Weight, Approximately 7700 LBS.
F.O.B. OUR WAREHOUSE
