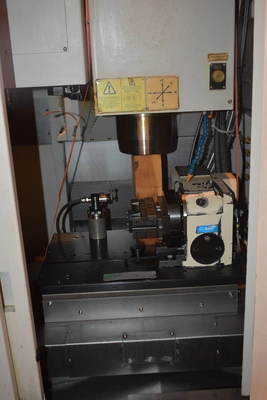

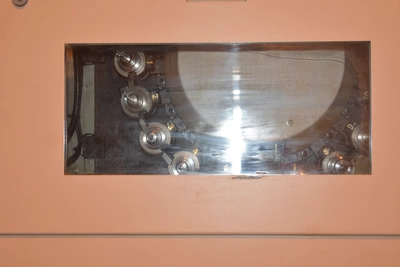

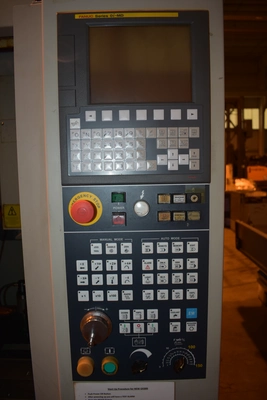

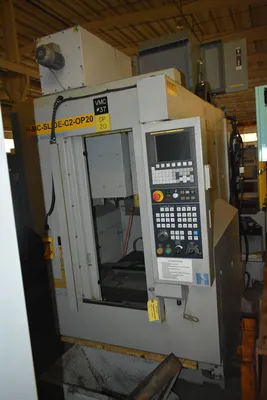

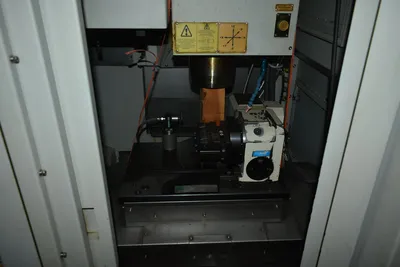

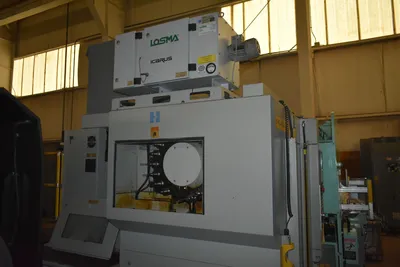

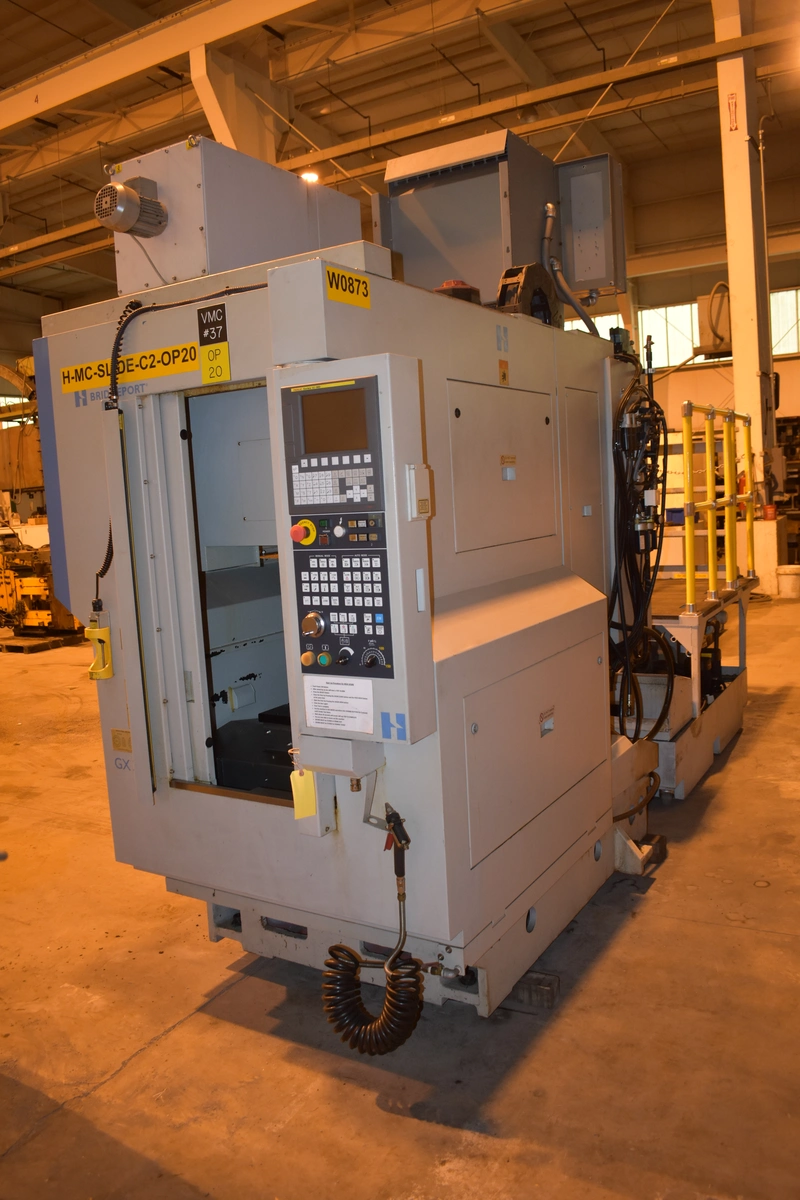

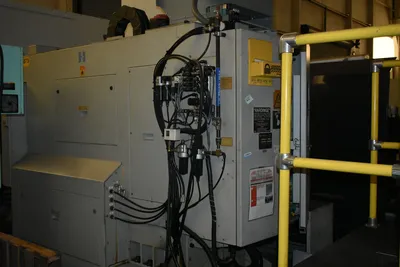

GX-300 BRIDGEPORT HARDINGE 4-AXIS CNC VERTICAL MACHINING CENTER w/FANUC OiMD CNC CONTROLS - RNA-160L TSUDAKOMA NC ROTARY TABLE- 20-POSITION AUTOMATIC TOOL CHANGER

Table Working Surface, W x L 15.8" x 23.6"

Table Load Capacity 396 LBS

Table Longitudinal Travel (X-Axis) 11.8"

Saddle Cross Travel (Y-Axis) 15.8"

Quill Vertical Travel (Z-Axis) 16.9"

Spindle Taper #40

Tool Diameter Full Drum, Maximum 3.15"

Tool Diameter Empty Pockets, Maximum 5.9"

Tool Length, Maximum 8.86"

Tool Weight, Maximum 13.2 LBS

Spindle Speeds, Range 0 to 7083 RPM

Positioning Speed Manual Mode, Range 0 to 354 IPM

Rapid Traverse Rates, X, Y, & Z-Axis' 1181 IPM

Distance Table to Gauge Plane, Range 5.9" to 22.8"

Spindle Motor, Horsepower Rating 20 HP

Machine Dimensions, L x D 57.09" x 100.87"

Machine Height 93.35"

Weight Approximately 11000 LBS

NOTE: These Machines Were Designed With A Very Compact Footprint

In Order To Better Utilize Valuable Floor Space. These Specifications

Make The GX Machines Ideal For The Aerospace, Medical Defense,

3C, Automotive And Other Industries Who Require High-Value, Complex,

Parts From Difficult To Machine Materials.

F.O.B. OUR WAREHOUSE
