6-16 BARBER-COLMAN "MULTI-CYCLE" GEAR HOBBER w/TRIPLE THREAD INDEX WORM - AUTOMATIC HOB SHIFTER - 180-DEGREE TURRET TAILSTOCK

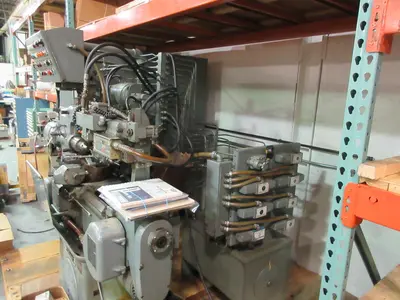

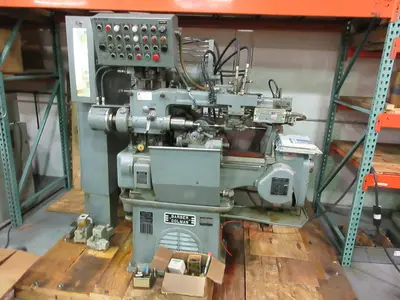

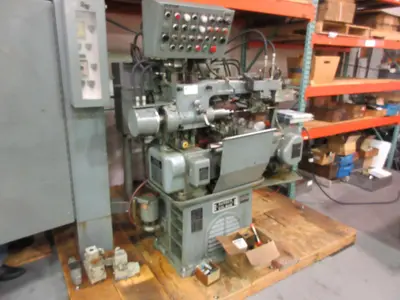

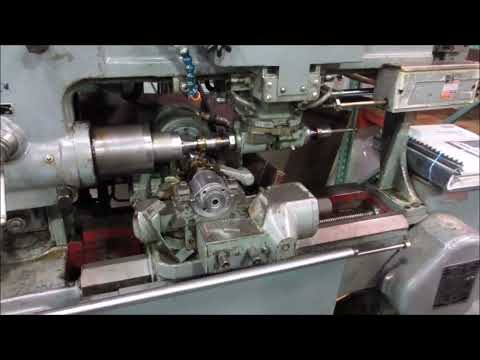

6-16 BARBER-COLMAN "MULTICYCLE" GEAR HOBBER
Serial No. 5182, Model 6-16, Series Multicycle

EQUIPMENT/FEATURES:
MULTICYCLE Interchangeable Automatic Hobbing Cycles
Triple Thread Index Worm
Automatic Hob Shifter
180-Degree Turret Tailstock
Double-Acting Hydraulic Chuck

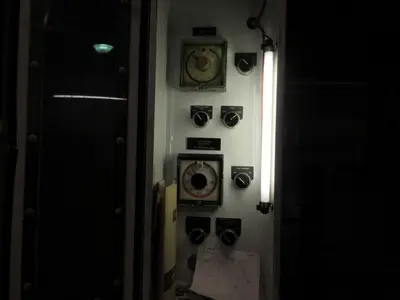

Dwell Timer For Blind Cuts
Dovetail Overarm
3/4" Interchangeable Hob Arbor
Hydraulic Power Unit

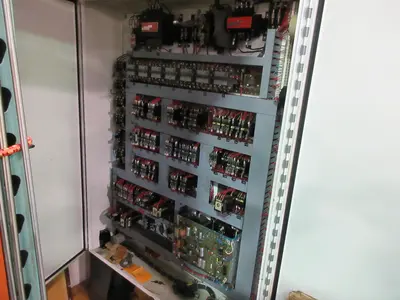

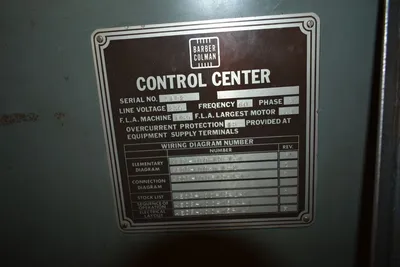

Electrical Control Panel
Automatic Lubrication System

CATALOG SPECIFICATIONS:
Work Diameter, Maximum 6"
Travel Of Hob Slide, Maximum 16.5"
Distance Spindle to Tailstock, Maximum 21.75"
Distance Spindle To Tail Center
(Turret Machine), Maximum 15.75"
Hob Diameter, Maximum 3"
Hob Swivel Angle, Maximum 45-DEGREES
Hob Speed, Maximum 533 RPM

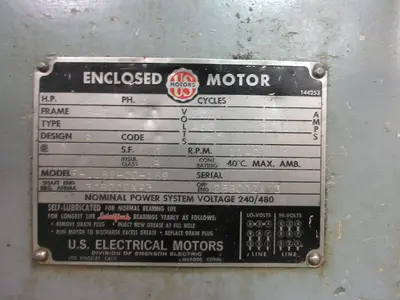

Main Motor, Horsepower 2 HP
Electrical System 220-440/3/60
Weight, Approximately 2550 LBS.
F.O.B. OUR WAREHOUSE
