28” REDIN "18GP BURR-MATIC" UNIVERSAL GEAR DEBURRER w/AUTOCYCLE - 10” TILT & INDEX CHUCK - (2) UNIVERSAL GRINDING HEADS
Have one to sell?
$14,500.00 USD
ConditionUsed
1 available

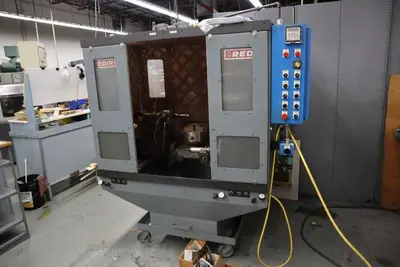

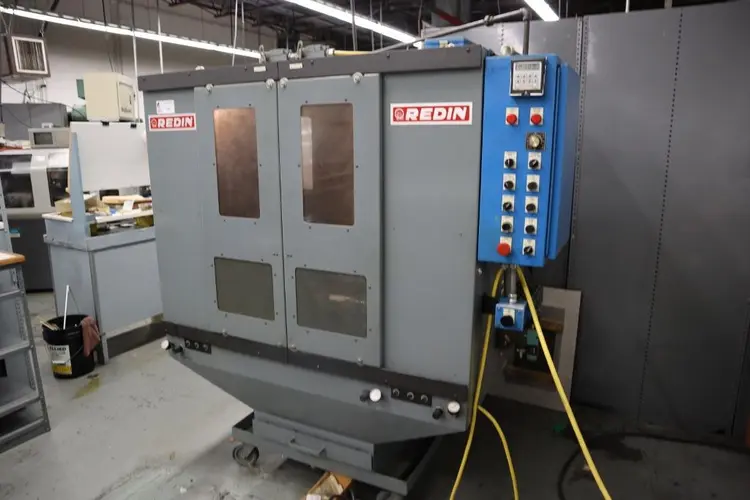

18GP REDIN "BURR-MATIC" UNIVERSAL GEAR DEBURRING MACHINE

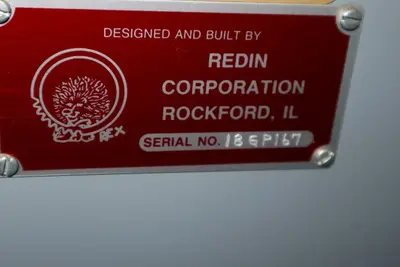

Serial No 18GP167, Model 18GP, Series BURR-MATIC

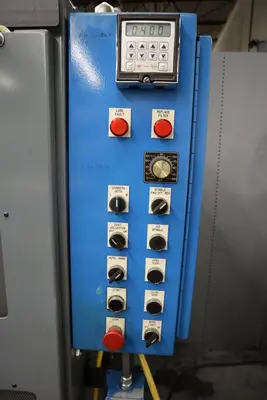

Automatic Cycle Controls - Cycle Timer

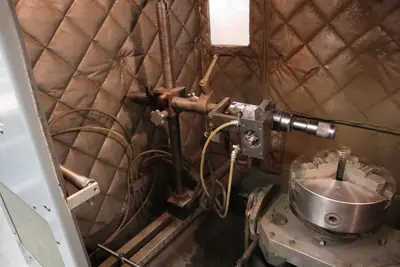

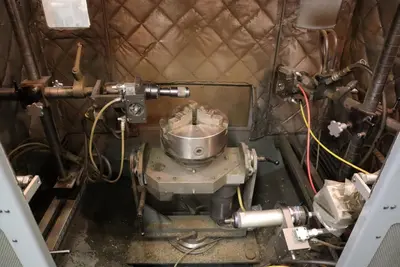

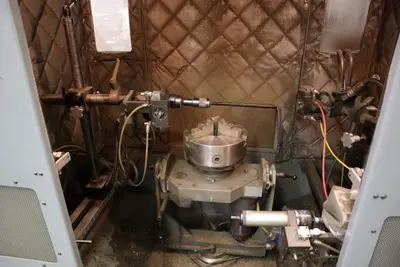

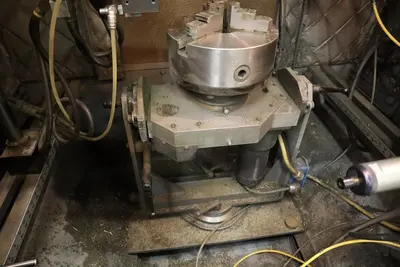

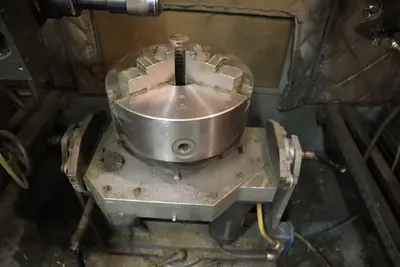

10" 3-Jaw Universal Chuck - Tilting & Indexing

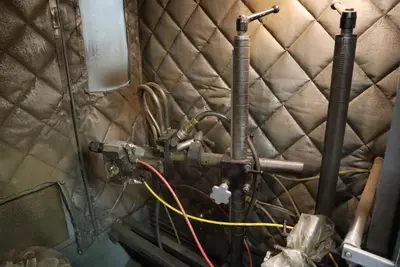

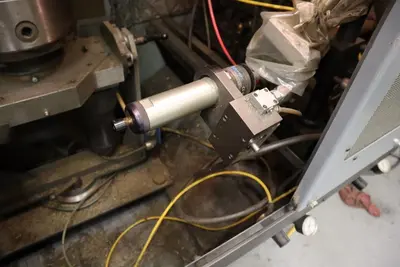

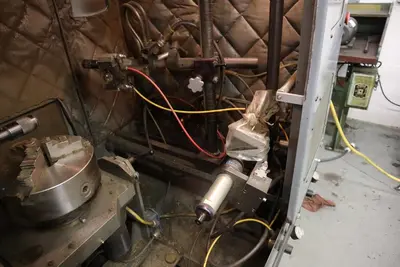

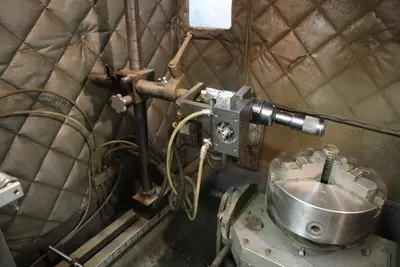

Left & Right Universal Grinding Heads
Reversible Grinder
Full Work Enclosure

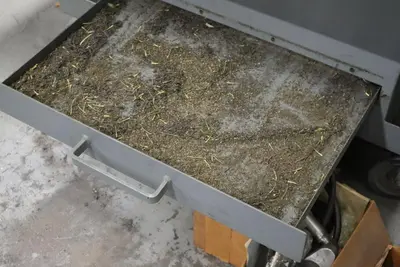

Built-In Dust Collector
Diameter Capacity, Maximum 28"
Pitch Diameter, Range .75" to 28"
Internal Pitch Diameter, Maximum 16"
Face Capacity, Maximum 6"
Part Weight, Maximum 800 LBS
Wheel Grinding Speed 13500 RPM
Wheel Diameter, Maximum 4"
Floor Space Required, W x L 40" x 75"
Weight Approximately 1250 LBS
NOTE: Except For Loading And Unloading, The Machine Is
Entirely Automatic In Operation. The Set-Up Is Simple
And Requires Only Minutes To Change From One Job
To Another.
F.O.B OUR WAREHOUSE
