12.5 x 20" MONARCH "10EE" PRECISION TOOLROOM LATHE w/ELECTRIC LEADSCREW REVERSE - COLLET CHUCK - ALORIS TOOL POST

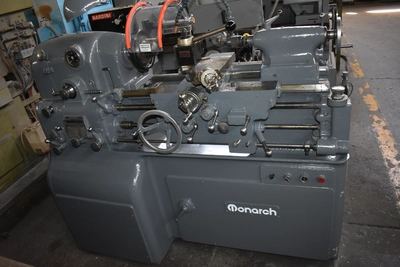

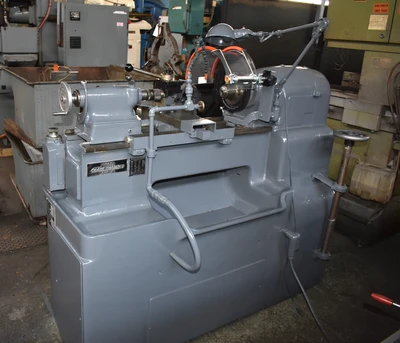

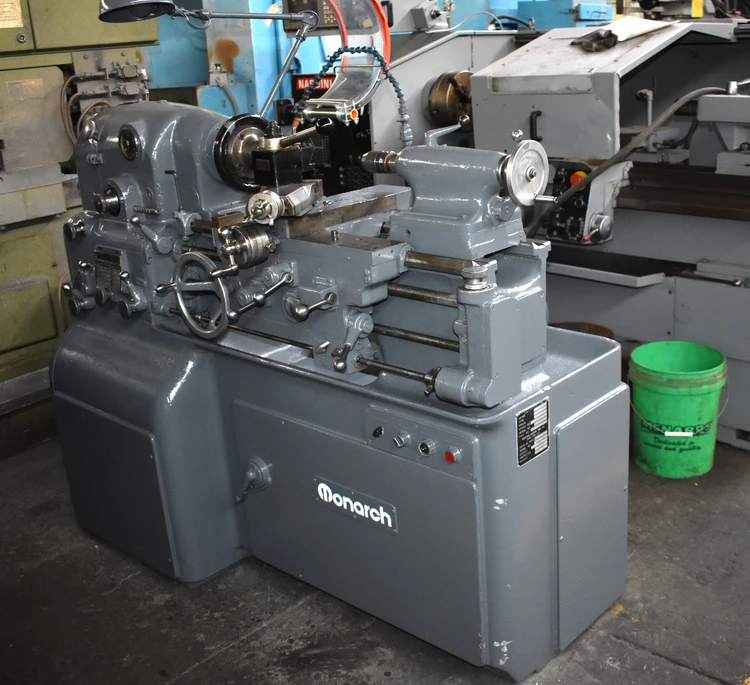

12.5" x 20" MONARCH "10EE" PRECISION TOOLROOM LATHE
Serial No 49601, Model 10EE

EQUIPPED WITH:
Electric Leadscrew Reverse

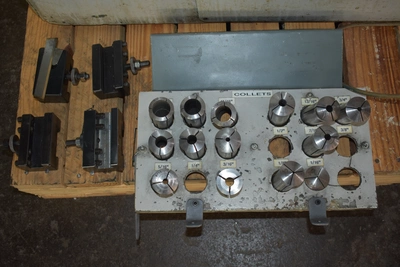

Collet Chuck - Some Collets
Aloris Tool Post - (5) Tool Holders
Flame Hardened & Ground Bed Ways

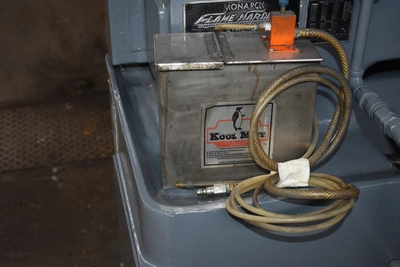

Coolant System

CATALOG SPECIFICATIONS:
Hole Thru Spindle 1.41"
Swing Over Bed Ways, Rated 12.5"
Swing Over Cross-Slide 7.25"
Distance Between Centers 20"
Compound Rest Cross Slide Travel 2"
Tailstock Spindle Diameter 1.75"
Tailstock Spindle Travel 3.5"
Spindle Speeds, Variable Range 8 to 4000 RPM
(50) Carriage Longitudinal Feeds .0005 to .016 IPR
(60) Thread Changes, Range 3 to 184 TPI
Spindle Motor, Horsepower 5 HP
Electrical System 220-440/3/60
Floor Space Required, L x W 61" x 29"
Weight, Approximately 3450 LBS

NOTE: Electric Leadscrew Reverse Is A Great Time Saver When
Chasing External Or Internal Threads. It Is Particularly
Valuable For Internal Threading Of Blind Holes Or Short
Threaded Lengths.
F.O.B. OUR WAREHOUSE
