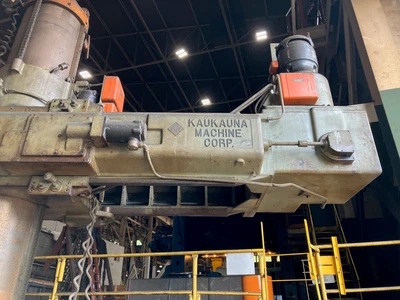

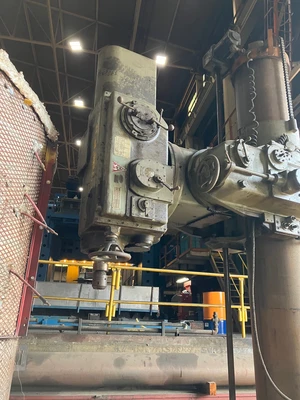

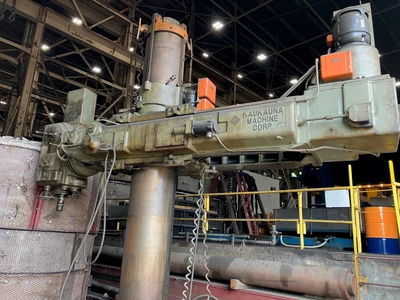

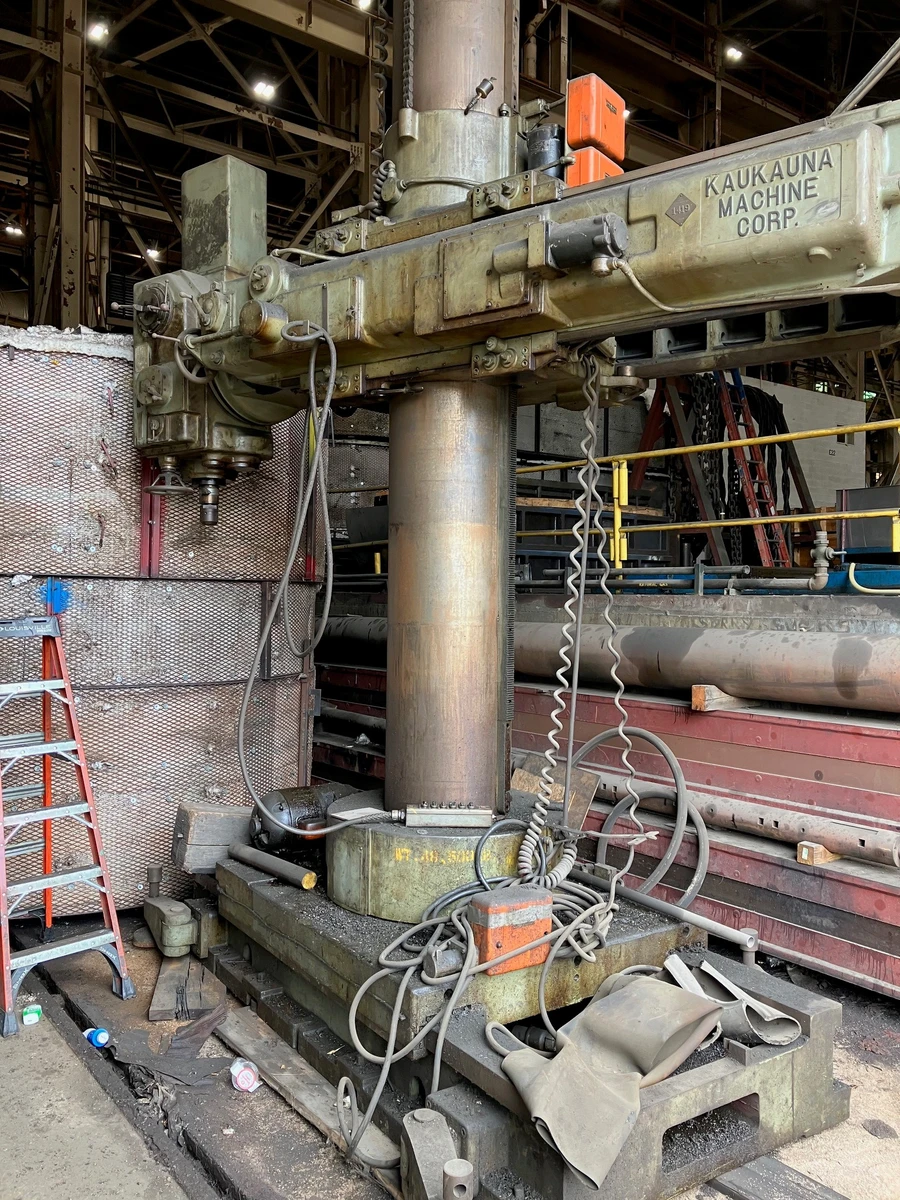

8'22" GIDDINGS & LEWIS/KAUKAUNA "140U" PORTABLE UNIVERSAL RADIAL DRILL & TAPPING MACHINE w/HIGH SPEED SPINDLE - PENDANT CONTROL

Arm Length 8'

Column Diameter 22"

Spindle Travel, Power 18"

Vertical Travel, Head on Column 60"

Horizontal Head Adjustment On Rails 36"

Horizontal Travel, Column on Runway 48"

Swivel Of Column On Base, Manual 360 DEGREES

Headstock Swivel, Power 360 DEGREES

Trunnion Swivel, Power 180 DEGREES

Spindle Diameter 4"

Spindle Taper #5MT

(9) Spindle Speeds, Range 45 to 800 RPM

(9) Spindle Feeds, Range .0035 to .062 IPR

Power Rapid Traverse, Rate 80 IPM

Spindle Motor, Horsepower/RPM 10 HP/1800 RPM

Rapid Travese Motor, Horsepower 5 HP

Electrical System 220-440/3/60

Weight, Approximately 48500 LBS

NOTE: The Combination of 360 Degree Head Swivel, 180

Degree Vertical Trunnion Swivel, 360 Degree Column

Swivel Provides An Angle For Any Position Of Machining.

F.O.B. OUR WAREHOUSE
