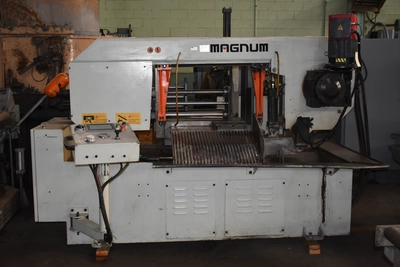

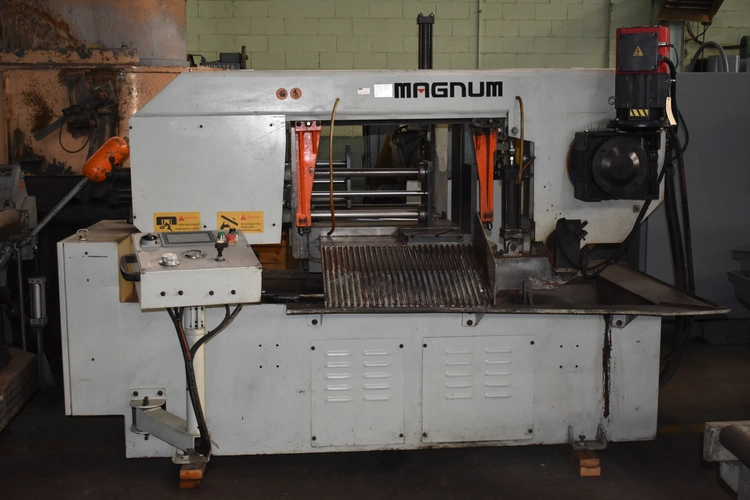

26" x 18" MAGNUM "BS-2618A" CNC AUTOMATIC MITERING HORIZONTAL BAND SAW w/PLC PROGRAMMABLE CONTROL - OVERHEAD BUNDLING ATTACHMENT - New 2021

26" X 18" MAGNUM FULLY-AUTOMATIC MITERING
HORIZONTAL BAND SAW W/BUNDLING

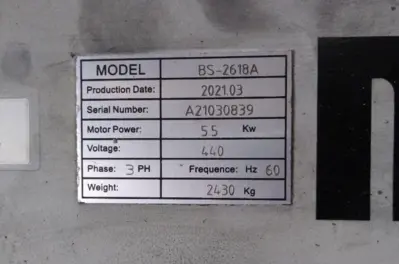

New 2021, Serial No A21030839, Model BS-2618A

EQUIPPED WITH:

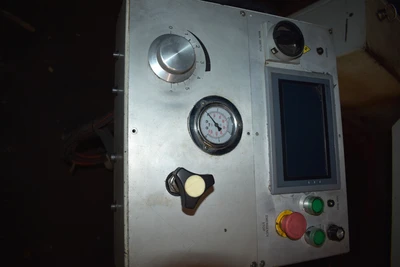

PLC Programmable Control w/Multiple Functions
Angle Cutting Capability - Automatic Cut
Single Cut - Continuous Cut - Manual Cut

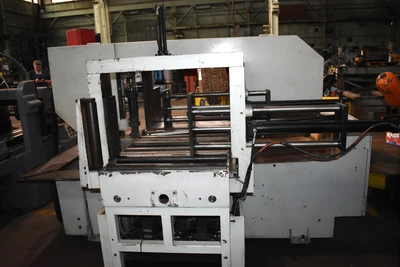

Overhead Bundling Attachment
Heavy-Duty Hydraulic Automatic Feed System And Vises
Discharge Chute - Coolant System (Built-In)

CATALOG SPECIFICATIONS:
Flat Stock Capacity @ 90-Degrees 25.5" x 13.75"
Round Stock Capacity @ 90-Degrees 18"
Flat Stock Capacity @ 60-Degrees 12.25" x 13.75"
Round Stock Capacity @ 60-Degrees 12.25"
Flat Stock Capacity @ 45 Degrees (L and R) 18.125" x 13.75"
Round Stock Capacity @ 45 Degree (L and R) 18.125"
Material Load Capacity 5000 LBS +
Feed Length Automatic, Maximum 25.5"
Band Length 205.5"
Band Width 1.5"
Band Thickness 0.045"
Blade Speeds, Infinitely Variable 23 To 95 RPM
Blade Motor, Horsepower 7.37 HP 5.5 KW
Overall Dimensions, W x D 112" x 118"
Overall Height 75"
Electrical System 440/3/60
Weight, Approximately 5346 LBS

F.O.B. OUR WAREHOUSE
