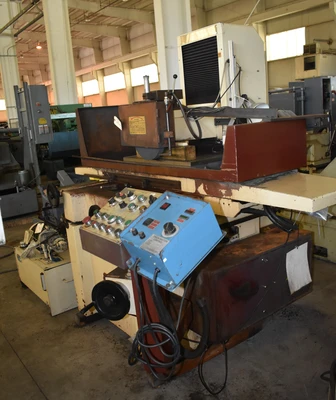

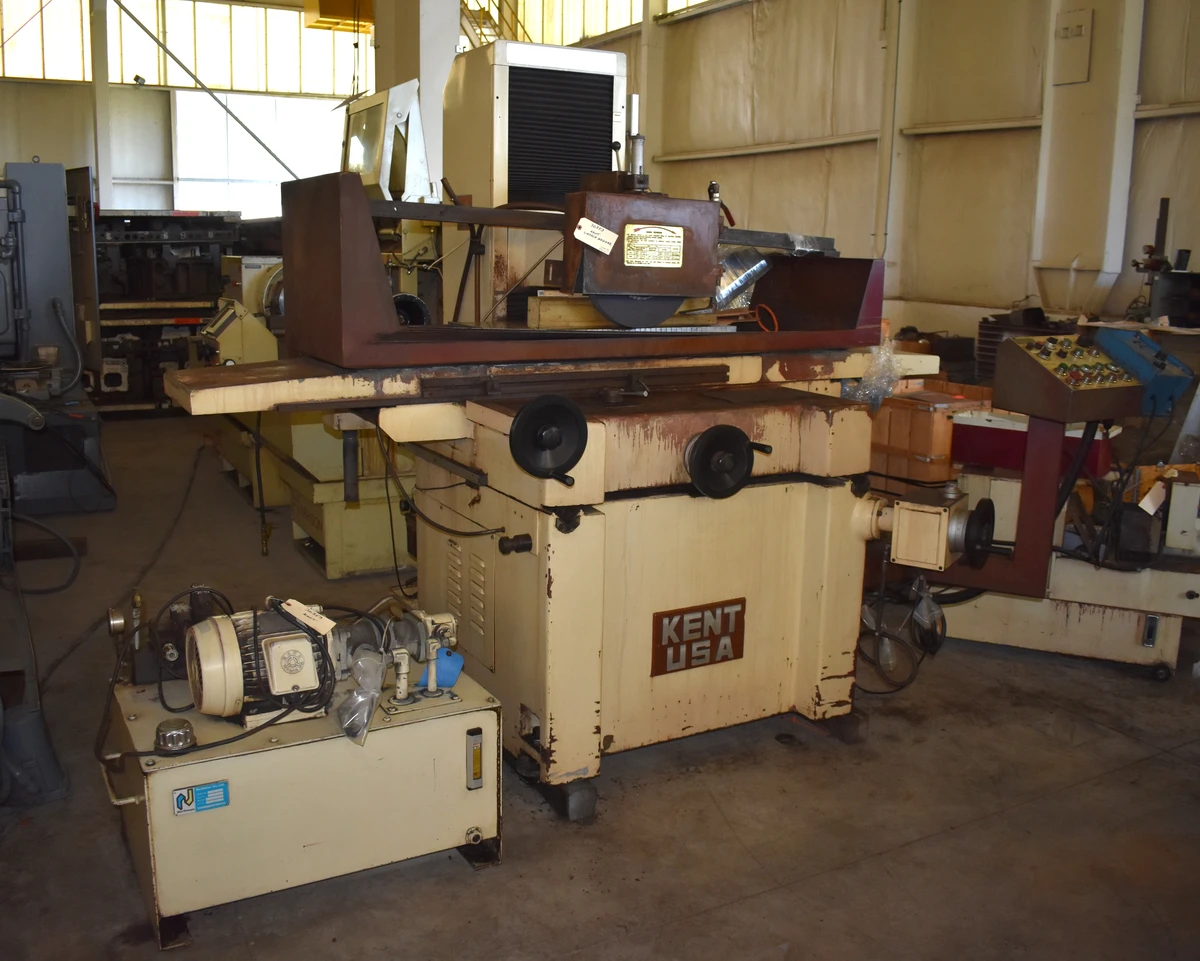

16" x 32" KENT USA "SGS-1632AHD" 3-AXIS AUTOMATIC HORIZONTAL-SPINDLE SURFACE GRINDER w/ELECTRO-MAGNETIC CHUCK - ACU-RITE DIGITAL READOUTS - INCREMENTAL CROSS & POWER DOWNFEED

Table Working Surface, W x L 16" x 32"

Grinding Width Capacity, Maximum 16"

Grinding Length Capacity, Maximum 32"

Table Load Capacity with Chuck 1300 LBS

Table Longitudinal Travel, Maximum 32"

Table Cross Travel, Maximum 19"

Spindle-Center to Table, Maximum 25"

Grinding Wheel Diameter, Standard 14"

Grinding Wheel Width, Standard 2"

Grinding Wheel Hole Diameter 5"

Grinding Spindle Speed 1750 RPM

Table Longitudinal Feeds, Range 16 to 80 FPM

Table Cross In-Feeds, Incremental .004 to .4 IPR

Incremental Automatic Downfeed, Range .0001" to .001"

Grinding Wheel Spindle Motor 7.5 HP

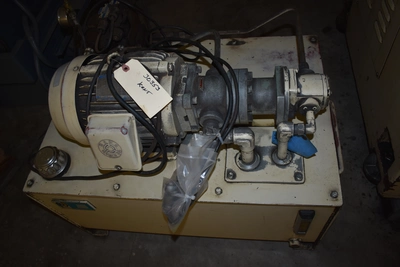

Hydraulic System Motor 3 HP

Crossfeed Motor 1/5 HP

Weight, Approximately 6160 LBS

F.O.B. OUR WAREHOUSE
