EC-1600-3X HAAS 3-AXIS CNC HORIZONTAL MACHINING CENTER w/50-POSITION SIDE-MOUNT ATC - (4TH AXIS READY) - 64” X-AXIS TRAVEL - 40” Y-AXIS TRAVEL - 32” Z-AXIS TRAVEL - #50 TAPER TOOLING

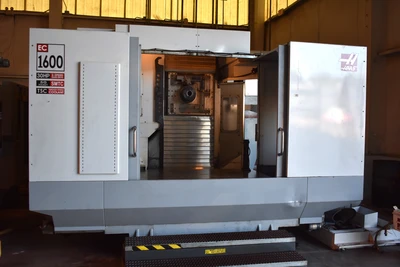

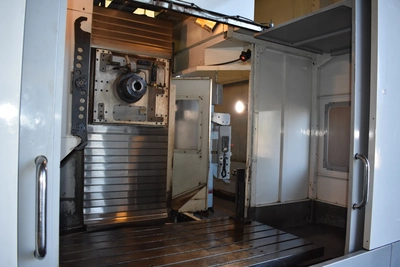

EC-1600-3X HAAS 3-AXIS CNC HORIZONTAL MACHINING CENTER
New 2007, Serial No 2052229, Model EC-1600-3X,

EQUIPPED WITH:

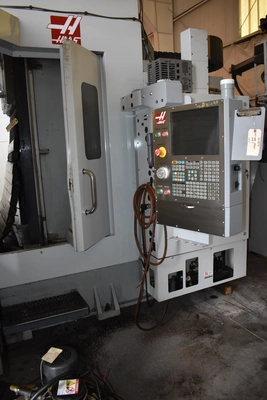

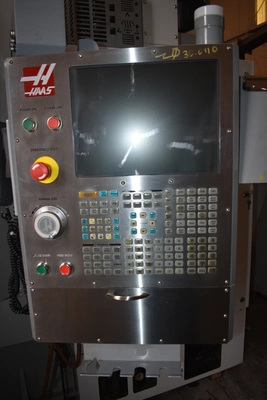

Haas CNC Control

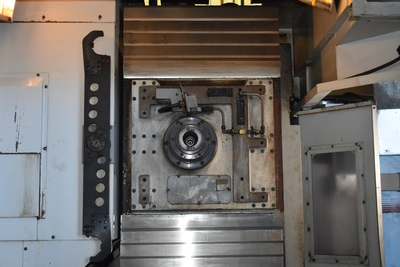

4th Axis Ready
Wired and Equipped w/Haas 4th Axis Drive (No Table)
50-Position Side-Mounted Automatic Tool Changer
30 HP 2-Speed Geared Head Drive System
Thru-Spindle Coolant System
Haas Probe

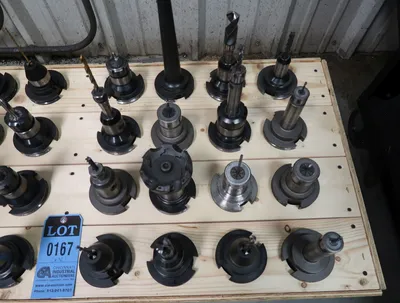

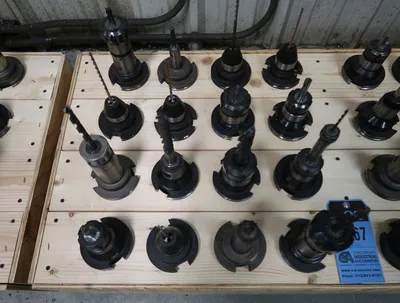

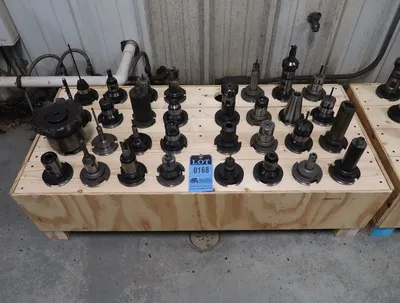

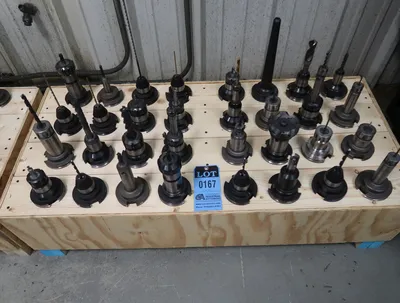

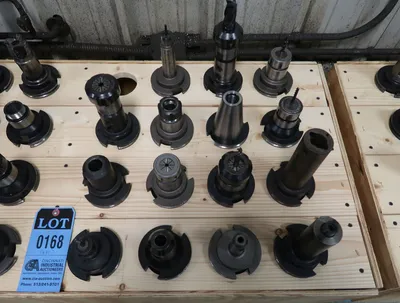

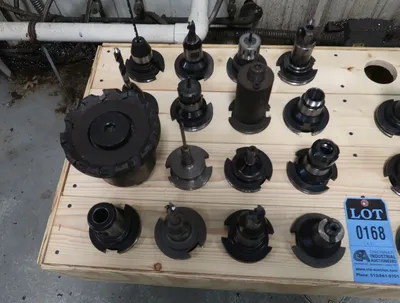

Large Quantity of 50 Taper Tooling (Approximately 63 Tool Holder)

CATALOG SPECIFICATIONS:
Table Dimensions, L x W 64" x36"
Table Load Capacity, Maximum 10000 LBS
X-Axis Column Longitudinal Travel 64"
Y-Axis Head Vertical Travel 40"
Z-Axis Table Cross Travel 32"
Spindle Taper #50
Tool Diameter Full, Maximum 3"
Tool Diameter Adjacent Empty, Maximum 10"
Spindle Speeds, Range 0 to 6000 RPM
Cutting Feedrate Range 500 IPM
Rapid Traverse Rate 540 IPM
Motor Horsepower 30 HP
Overall Dimensions, W x D 143" x 173"
Overall Height 119"
Weight Approximately 31000 LBS
F.O.B. OUR WAREHOUSE
