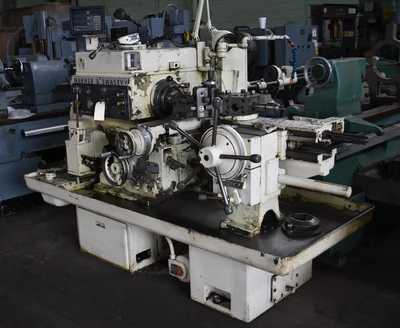

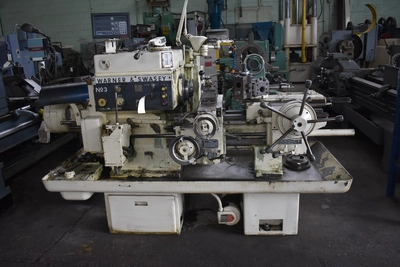

3 WARNER & SWASEY "M4630" SQUARE-HEAD RAM-TYPE TURRET LATHE w/BAR-FEED - COLLET CHUCK - TOOLING

3 WARNER & SWASEY "SQUARE-HEAD" RAM-TYPE
TURRET LATHE w/COLLET CHUCK & BAR FEED

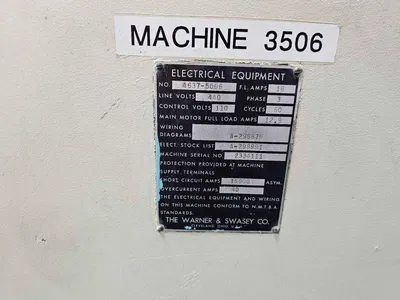

Serial No 2334111, Model 3, Series M4630

EQUIPPED WITH:

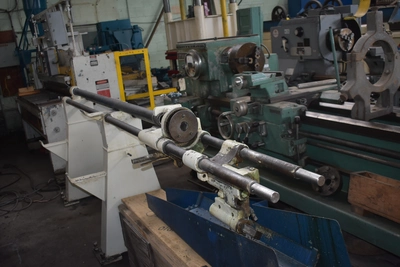

Hydraulic Collet Chuck & Bar Feed

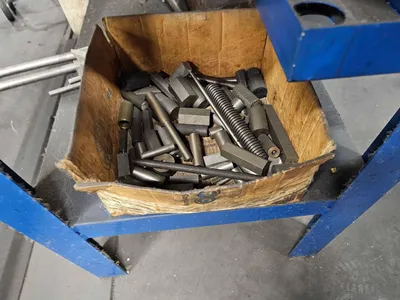

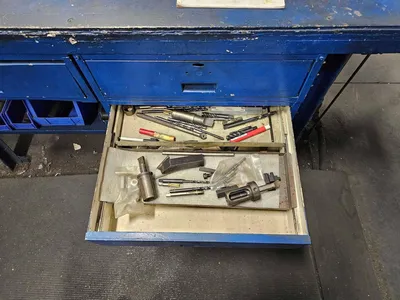

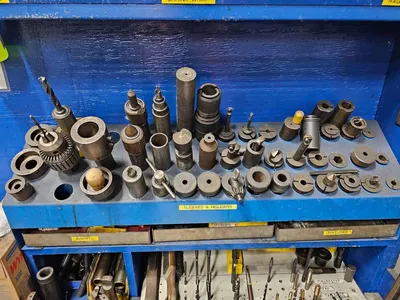

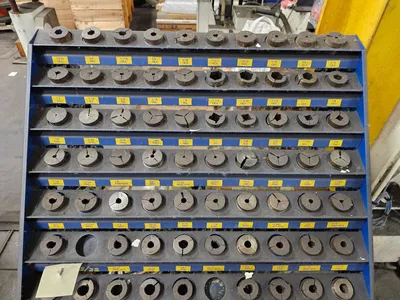

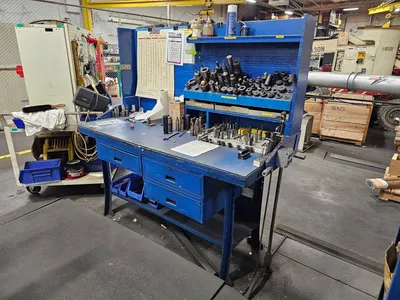

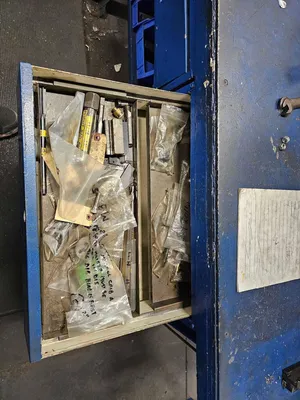

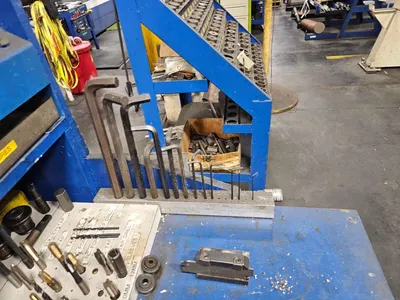

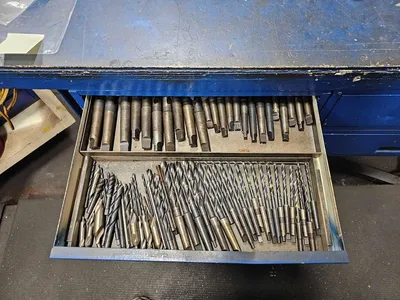

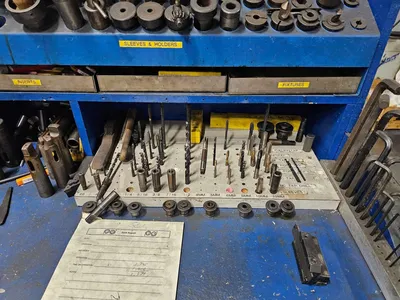

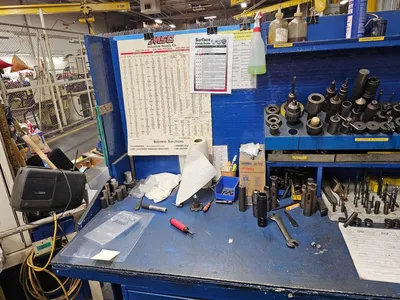

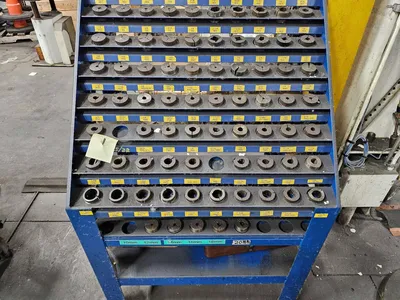

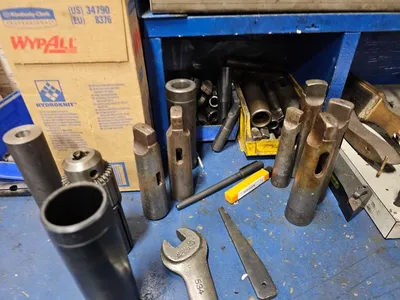

Large Quantity Of Tooling Including Collets, Tool Holders, Centers, ETC
Coolant System (Built-In)

CATALOG SPECIFICATIONS:
Hole Thru Spindle 1.84"
Bar Capacity, Round 1.5"
Bar Capacity, Square 1.06"
Bar Capacity, Hexagon 1.31"
Chuck Diameter 8 "
Swing Over Bed Ways 15.375"
Swing Over Guides 13.250"
Swing Over Cross-Slide 7"
Carriage Longitudinal Travel (Z-Axis) 17.375"
Cross-Slide Cross Travel (X-Axis) 8"
Turret Longitudinal Travel (Z-Axis) 9.875"
(16) Spindle Speeds, Range 45 to 2262 RPM
(6) Carriage Long Feeds (Z-Axis) .003 to .029 IPR
(6) Cross-Slide Cross Feeds (X-Axis) .002 to .020 IPR
(6) Turret Longitudinal Feed (Z-Axis) .003 to .032 IPR
Spindle Motor, Horsepower/RPM 10 HP/5 HP
Overall Dimensions, L x D 21'9" x 5'1"
Weight, Approximately 6690 LBS
F.O.B. OUR WAREHOUSE
