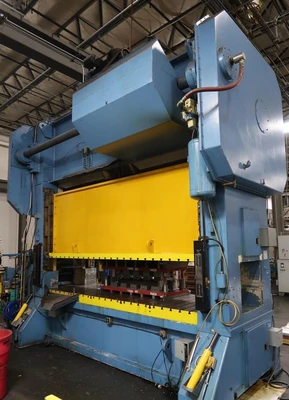

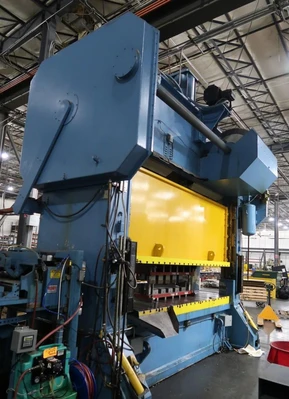

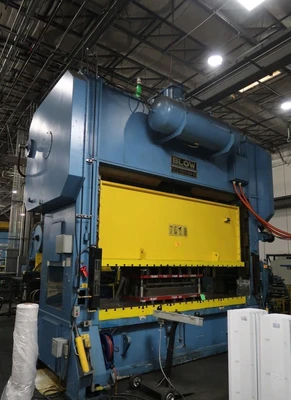

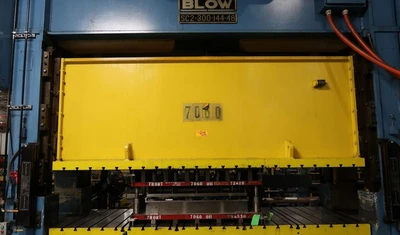

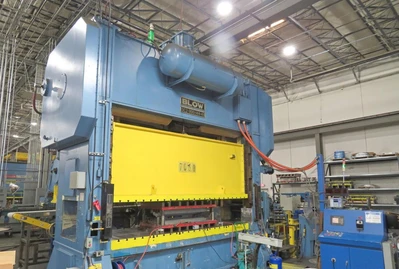

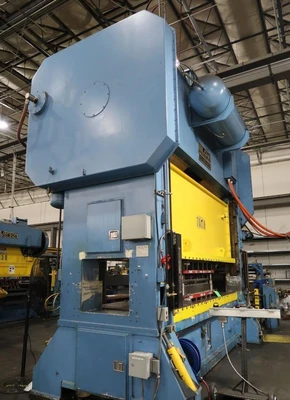

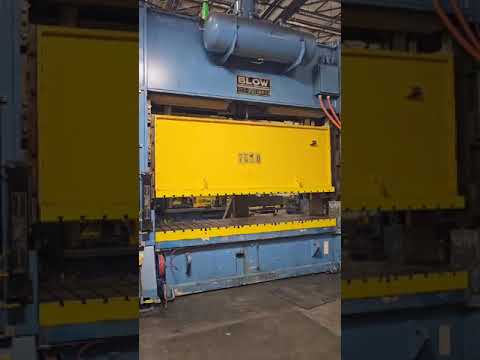

300 TON BLOW "SC2-300-144-48" HEAVY-DUTY STRAIGHT-SIDE VARIABLE-SPEED DOUBLE-CRANK PRESS - 144" X 48" BED & RAM - 6" STROKE
Have one to sell?
$189,500.00 USD
ConditionUsed
1 available
300 TON BLOW HEAVY-DUTY STRAIGHT-SIDE
TWO POINT VARIABLE SPEED PRESS

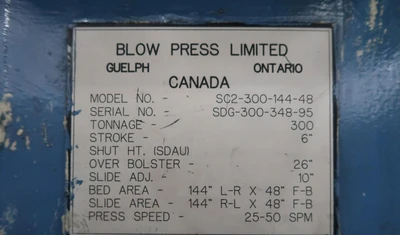

New 1995, Serial No SDG-300-348-95, Model SC2-300-144-48

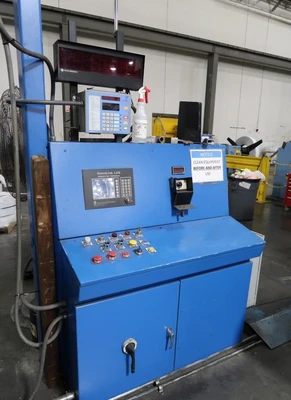

OmniLink LCD Operator Control Terminal
Air Clutch & Brake - Air Counterbalance
Variable Speed Drive - Tie Rod Construction
Power Ram Adjustment

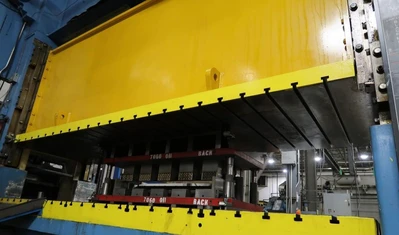

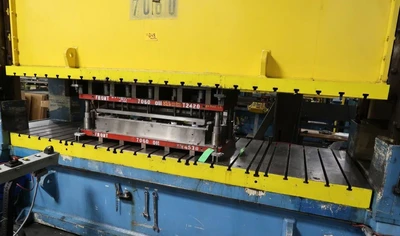

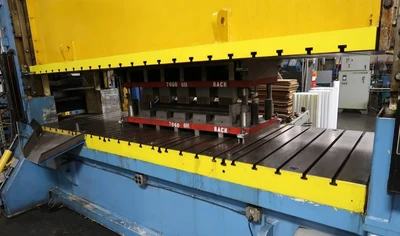

T-Slotted Slide & Bolster

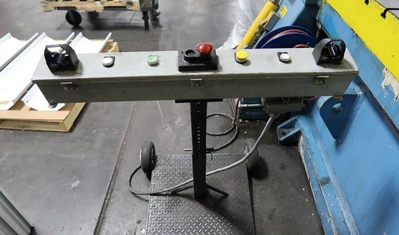

Operators Control Stand
Floor Standing Design
Tonnage Capacity 300 TON
Stroke Length 6"
Shut Height Over Bolster (SDAU) 26"
Slide Adjustment, (Power) 10"
Slide Area, L-R x F-B 144" x 48"
Bed Area, L-R x F-B 144" x 48"
Bolster, L-R x F-B x THK 144" x 48" x 6"
Distance Between Uprights 145"
Strokes Per Minute, Variable 25 to 50 SPM
Main Motor Horsepower/RPM 50 HP/1800 RPM
Slide Motor Horsepower/RPM 7.5 HP/1800 RPM
Dimensions W x D 203-1/2" x 112-1/2"
Height 217-3/4"
Weight Approximately 140000 LBS
F.O.B. OUR WAREHOUSE
