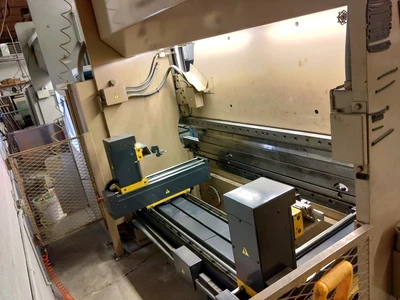

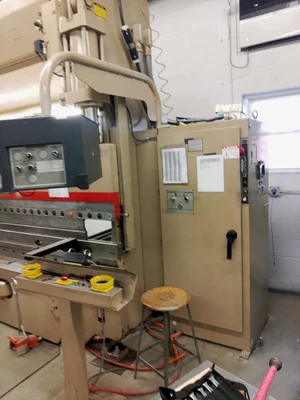

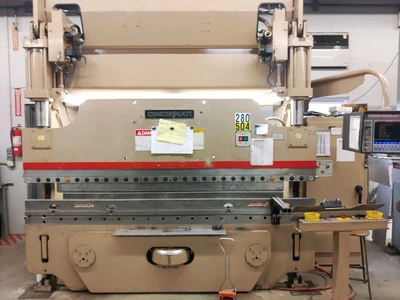

10' CINCINNATI-INC "90AFX8FT AUTOFORM" CNC
HYDRAULIC PRESS BRAKE

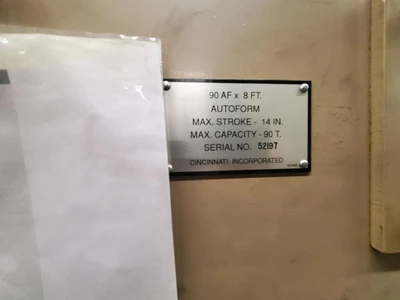

Serial No 52197, Model 90AFX8FT

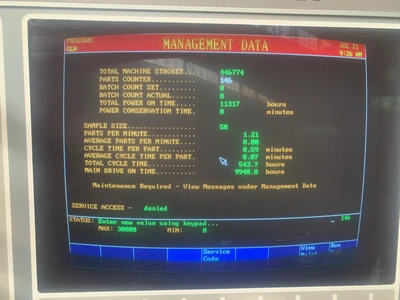

Cincinnati-Inc Adaptive Autoform CNC Controls w/6-Axis Back Gauge
Upper Ram Hydraulic Clamping
Auto Crowning Capabilities
14" Extra Long Stroke
Floppy Disc & USB Expanded Memory
Tonnage Capacity, Maximum 90 TON
Tonnage Capacity, Full Forming Speed 70 TON
Overall Length of Bed and Ram 10'
Distance Between Housings 102.5"
Bending Capacity 9' x 10 GA
Bending Capacity 6'10' x 3/16"
Bending Capacity 5' x 1/4"
Stroke Length 14"
Open Height 21"
Closed Height 7"
Throat Depth 7"
Ram Speed Full Tonnage, Maximum 94 IPM
Ram Speed, High Approach 380 IPM
Ram Speed, Variable Forming 1 to 120 IPM
Ram Speed, Variable Return 1 to 405 IPM
Hydraulic Motor, Horsepower 25 HP
Weight, Approximately 17500 LBS
F.O.B. OUR WAREHOUSE
