10' CINCINNATI-INC "135AFX8FT AUTOFORM" 135-TON CNC HYDRAULIC PRESS BRAKE w/CINCINNATI AUTOFORM CNC CONTROLS & 6-AXIS BACK GAUGE - AUTO-CROWNING - 14" EXTRA LONG STROKE - HYDRAULIC CLAMPING
Have one to sell?
$69,500.00 USD
ConditionUsed
1 available

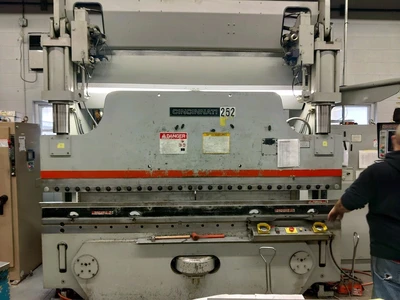

10' CINCINNATI-INC "135AFX8FT AUTOFORM" CNC
HYDRAULIC PRESS BRAKE

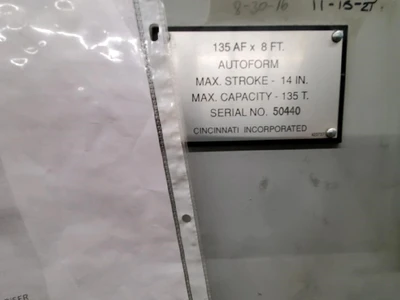

Serial No 50440, Model 135AFX8FT

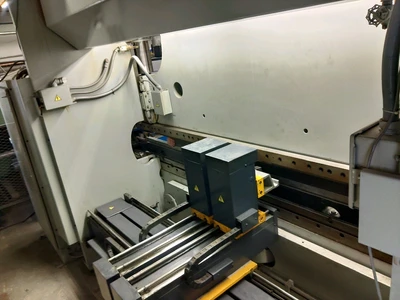

Cincinnati-Inc Autoform CNC Controls w/6-Axis Back Gauge
Auto Crowning Capabilities
Upper Ram Hydraulic Clamping
14" Extra Long Stroke
Floppy Disc & USB Expanded Memory
Tonnage Capacity, Maximum 135 TON
Tonnage Capacity, Full Forming Speed 105 TON
Overall Length of Bed and Ram 10'
Distance Between Housings 102.5"
Bending Capacity 10' x 3/16"
Bending Capacity 7'6" x 1/4"
Bending Capacity 4'8 x 1/2"
Stroke Length 14"
Open Height 21"
Closed Height 7"
Throat Depth 12"
Ram Speed Full Tonnage, Maximum 64 IPM
Ram Speed, High Approach 290 IPM
Ram Speed, Variable Forming 1 to 80 IPM
Ram Speed, Variable Return 1 to 270 IPM
Hydraulic Motor, Horsepower 25 HP
Weight, Approximately 19500 LBS
F.O.B. OUR WAREHOUSE
