300 TON DAKE “923-335” DOUBLE-ACTING "H"-FRAME HYDRAULIC PRESS w/52” X 62” WELDED TABLE - 24” STROKE - 40” DAYLIGHT - PARKER HANNIFIN HYDRAULIC PUMP - PENDANT CONTROL
Have one to sell?
$39,500.00 USD
ConditionUsed
1 available

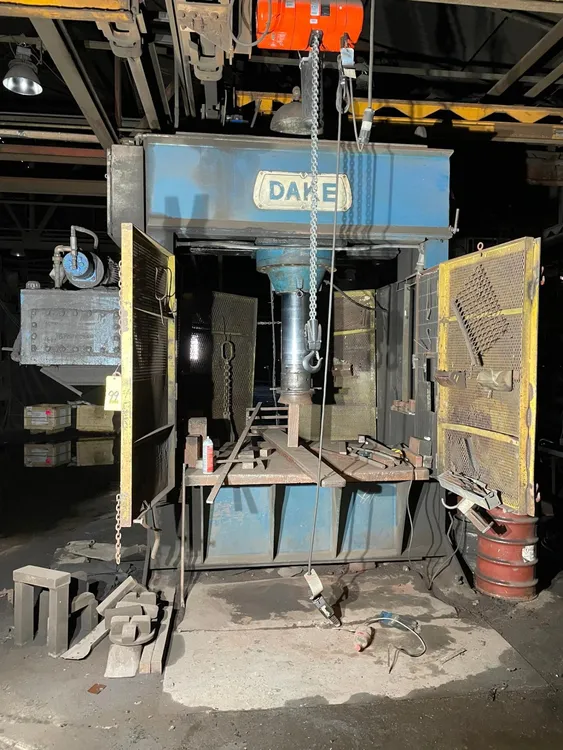

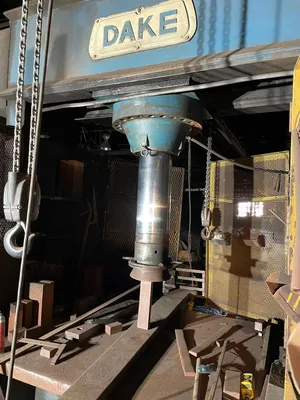

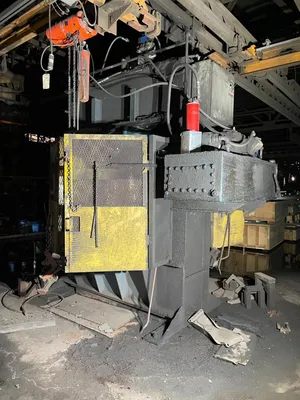

300 TON DAKE DOUBLE-ACTING "H"-FRAME HYDRAULIC PRESS
Serial No 170779, Model 923-335,
Pendant Control UP/Down
Welded Table
Parker Hannifin Hydraulic Pump
Tonnage Capacity, Down Stroke 300 TON
Tonnage Capacity, Up Stroke 115 TON
Stroke Length, Maximum 24"
Table Working Surface, F-B x L-R 52" x 62"
Daylight Opening, Maximum 40"
Distance Between Housings 70"
Ram Speed, Pressing 8 IPM
Ram Speed, Advance 41 IPM
Ram Speed, Return 106 IPM
Ram Speed, Breakaway 20 IPM
Head Travel, Speed 28 FPM
Motor Horsepower 10 HP
Electrical System 230-460/3/60
Overall Dimensions, F-B x L-R 75" x 95"
Overall Height 144"
Weight Approximately 15223
F.O.B. OUR WAREHOUSE
