20" CLAUSING "2270" SINGLE-SPINDLE FLOOR-STANDING DRILL PRESS w/MANUAL DOWN FEED

20" CLAUSING "2270" SINGLE-SPINDLE FLOOR-STANDING DRILL PRESS w/MANUAL DOWN FEED

Have one to sell?
513-771-1952
sales@mohawkmachinery.com
$1,750.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Single-Spindle Drills
Manufacturer:
CLAUSING
Model:
2270
Stock #:
30378
Status:
For Sale

Description

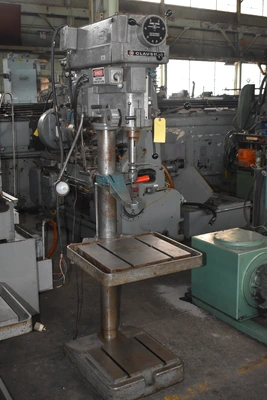

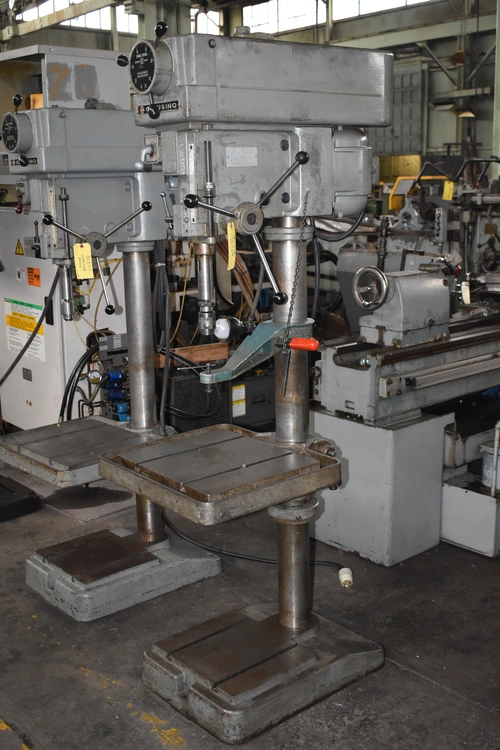

20" CLAUSING SINGLE-SPINDLE FLOOR DRILL PRESS

Serial No 611719, Model 2270

Manual Down-Feed to Spindle

Infinitely Variable Spindle Speeds

Adjustable Table

Round Column Design

Jacobs Style Chuck

2-Speed Motor

Swing20"508 mm
Capacity (Mild Steel)1.25"31.75 mm
Power1.5 hp1.1 kW
RPM2,000 RPM2,000 RPM
Dimensions22 x 3622 x 36
Weight600600

Drilling Capacity, Manual 1.25"

Spindle Travel, Vertical 6.5"

Swing to Center of Circle, Maximum 20"

Table Working Surface, W x L 22" x 19.5"

Base Working Surface, W x L 15.5" x 13"

Spindle to Table, Maximum 33.125"

Spindle to Base, Maximum 43.375"

Quill Diameter 2.5"

Spindle Taper #3 MT

Spindle Speeds, Range 150 to 2000 RPM

Column Length 66"

Column Diameter 4"

Spindle Motor, Horsepower 1.5/.75 HP

Overall Dimensions, L x W 22" x 36"

Overall Height 69"

Weight Approximately 600 LBS

NOTE: Replacement Price Of Over $4,995.00.

F.O.B. OUR WAREHOUSE
