16 TON SAVAGE "CFS16" C-FRAME HYDRAULIC STRAIGHTENING PRESS w/RAM POSITION CONTROLLER - ADJUSTABLE STROKE
Have one to sell?
$14,500.00 USD
ConditionUsed
1 available

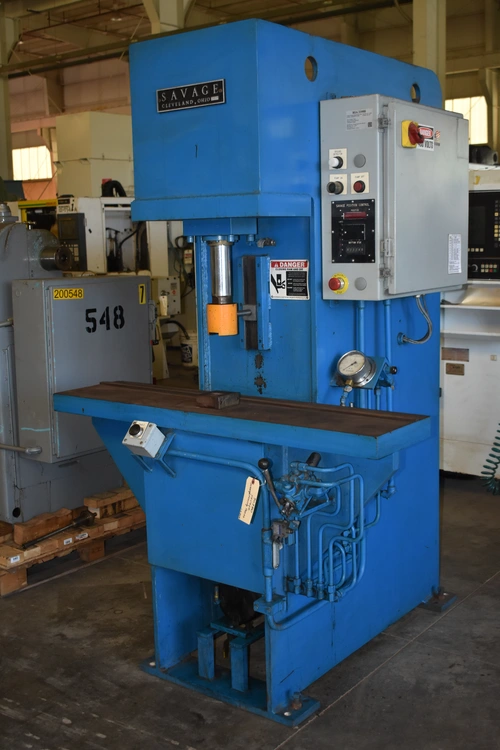

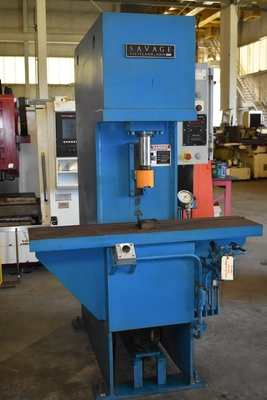

16 TON SAVAGE "C"-FRAME HYDRAULIC
STRAIGHTENING PRESS

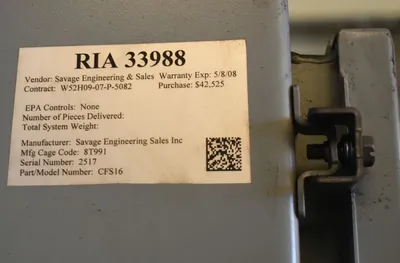

New 2007, Serial No 2517, Model CFS16

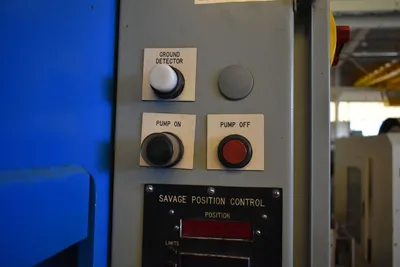

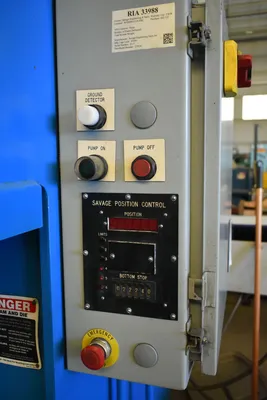

Savage Ram Position Controller (RPC)
Pushbuttons - Hand Lever
Adjustable Stroke
Tonnage Capacity 16 TON
Stroke Length Adjustable 10"
Daylight Opening, Maximum 12"
Throat Depth 6-3/8"
Cylinder Bore Diameter 4"
Rod Diameter 2-1/2"
Table Dimensions (Overall) W x L 12-1/2" x 51"

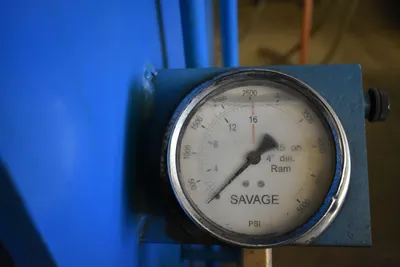

Operating Pressure 1530 PSI
Speeds, Advance 80 IPM
Speeds, Press 9 IPM
Speeds, Retract 135 IPM
Hydraulic Motor, HP/RPM 3 HP/3450 RPM
Overall Dimensions, W x D 51" x 48"
Overall Height 82"
Weight, Approximately 4500 LBS
NOTE: Appears To Be In Very Good Condition As Taken
From Government Storage.
F.O.B. OUR WAREHOUSE
