80” TRUMPF 94-TON “V85X TRUMABEND" EXTRA-HIGH 6-AXIS CNC PRESS BRAKE w/DELEM CONTROL - HYDRAULIC QUICK CLAMPING - EXTRA DIES
Have one to sell?
$34,500.00 USD
ConditionUsed
1 available

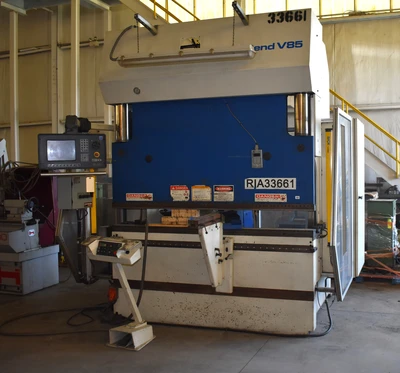

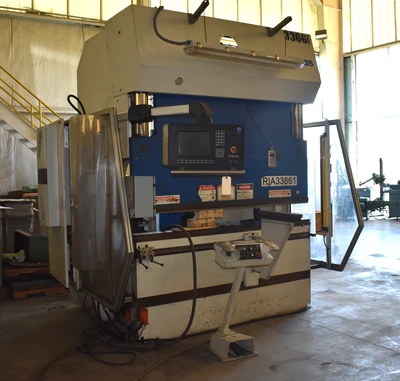

93.67 TON TRUMPF "TRUMABEND V85X" EXTENDED-HEIGHT
6-AXIS CNC HYDRAULIC PRESS BRAKE
Serial No 882222, Production No F1012F, Model TrumaBend V85X

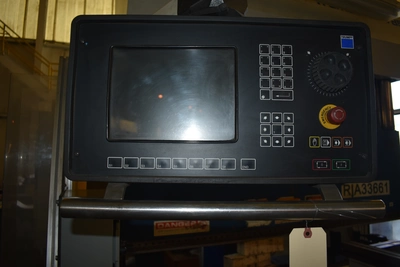

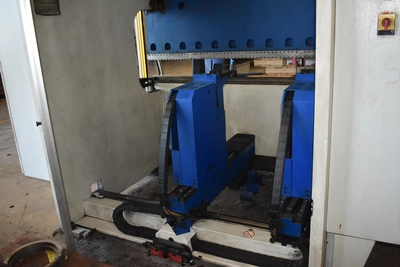

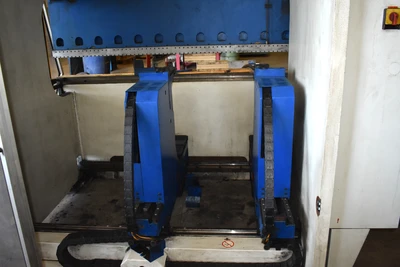

Delem Control w/6-Axis CNC Backgauge
CNC Programmable Crowning
Hydraulic Quick Clamp On Both Upper & Bottom Tool Holders
Adjustable Front Support

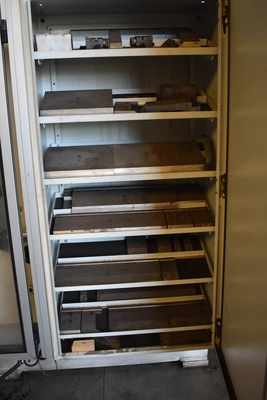

Large Quantity Of Dies
Sick "C4000" Light Curtains
Tonnage Capacity .......... 93.67 Tons
Maximum Bending Length .......... 80"
Distance Between Housings .......... 70"
Stroke Length (Y-Axis) .......... 14.37"
Open Height .......... 21"
Throat Depth .......... 16.5"
Bed Width .......... 4.7"
Travel In X-Axis (Back Gauge In/Out) .......... 23.6"
Travel In R-Axis (Back Gauge Up/Down) .......... 9.8"
Travel Speed In X1, Maximum .......... 2358 IPM
Travel Speed In R1, Maximum .......... 780 IPM
Travel Speed In Z1, Maximum .......... 2358 IPM
Rapid Speed, Y-Axis .......... 520 IPM
Press Speed, Y-Axis .......... .24 to 24 IPM
Return Speed, Y-Axis .......... 522 IPM
Drive Motor .......... 15 H.P.
Approximate Weight .......... 19910 LBS
NOTE: Machine Appears To Be In Very Good Condition As Taken
From Government Storage.
F.O.B. OUR WAREHOUSE
