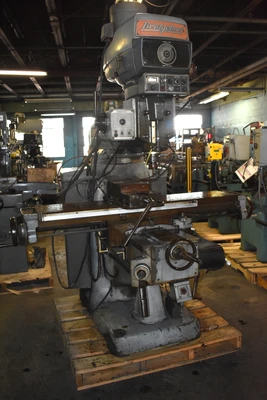

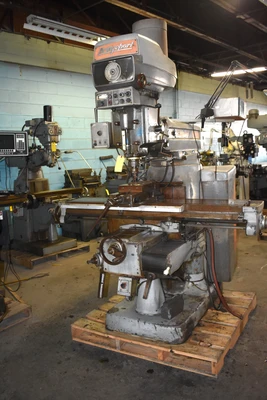

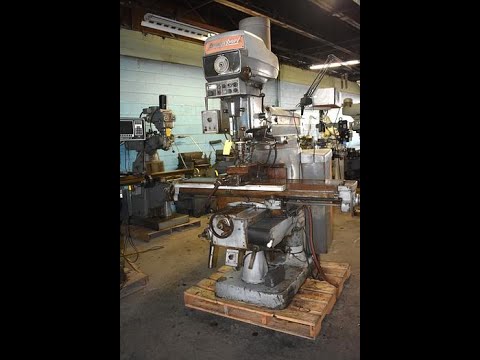

4HP BRIDGEPORT "SERIES II 4J" VERTICAL MILL w/SONY DIGITAL READOUTS - 11” X 58” TABLE - VISE

4J BRIDGEPORT "SERIES-II" VERTICAL MILL
Serial No 720, Model 4J, Series "SERIES-II"

EQUIPPED WITH:
Sony "Magnescale LH II" 2-Axis Digital Readouts
Bridgeport Power Down-Feed to Quill
Bijur Auto Lube System
Heavy-Duty Vise

CATALOG SPECIFICATIONS:
Table Working Surface, W x L 11" x 58"
Table Longitudinal Travel (X-Axis) 30"
Saddle Cross Travel (Y-Axis) 15"
Knee Vertical Travel (Z-Axis) 16"
Quill Travel 5"
Throat Distance, Minimum 10.625"
Throat Distance, Maximum 26.625"
Workpiece Load Capacity, Maximum 1500 LBS
Quill Diameter 4.25"
Spindle-Nose, Diameter 2.125"
Spindle Taper #40
Spindle-Head Swivel Degrees, L-R 90-DEGREES
Spindle-Head SWivel Degrees, F-B 30-DEGREES
Spindle Speeds, Infinitely Variable 50 to 3500 RPM
Longitudinal and Cross Feeds 3/8 to 24 IPM
Power Rapid Traverse, Long & Cross 24 IPM
Spindle Motor, Horsepower/RPM 4 HP/ 1740 RPM
Floor Space Required, W x D 10' x 7'
Overall Height 7'9"
Weight, Approximately 5220 LBS
F.O.B. OUR WAREHOUSE
