| Swing | 9" | 228.6 mm |
| RPM | 3,500 RPM | 3,500 RPM |
| Weight | 1000 LBS | 1000 LBS |

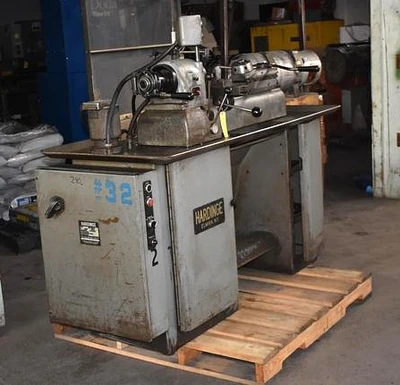

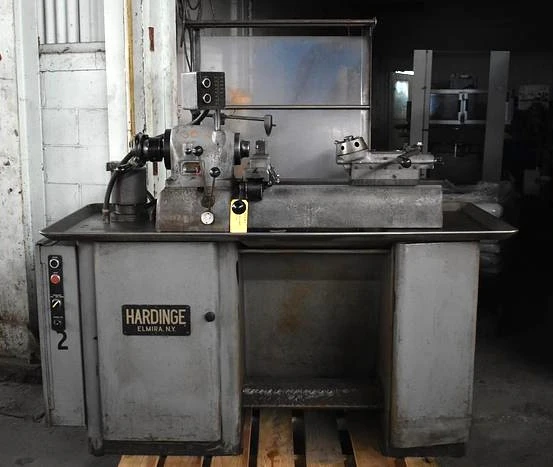

DSM59 HARDINGE SECOND-OPERATION PRECISION TURRET LATHE
Serial No V59-13753, Model DSM59
EQUIPPED WITH:
Collet Type Chuck
Double Tool Manual Cross Slide
Manual Turret
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Swing Over Bed 9"
Length of Bed 36"
Spindle Capacity, Round 5C Collets 1-1/16"
Spindle Capacity, Hexagon 5C Collets 7/8"
Spindle Capacity, Square 5C Collets 3/4"
Spindle Capacity, Step Chucks 1-1/16" to 6"
Spincle Capacity, Jaw Chucks 5"
Cross Slide, Travel 3-3/4"
Turret Slide, Travel 4"
Turret Holes, Diameter 5/8"
Spindle Speeds, Range 8 to 3500 RPM
Weight, Approximately 1000 LBS.
F.O.B. OUR WAREHOUSE
