12" x 16" WELLSAW "1270" PRODUCTION HORIZONTAL BAND SAW w/45-DEGREE SWIVEL VISE

12" x 16" WELLSAW "1270" PRODUCTION HORIZONTAL BAND SAW w/45-DEGREE SWIVEL VISE

Have one to sell?
513-771-1952
sales@mohawkmachinery.com
$3,950.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Band Saws
Manufacturer:
WELLSAW
Model:
1270
Stock #:
30390
Status:
For Sale

Description

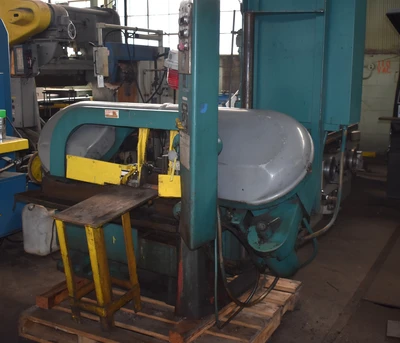

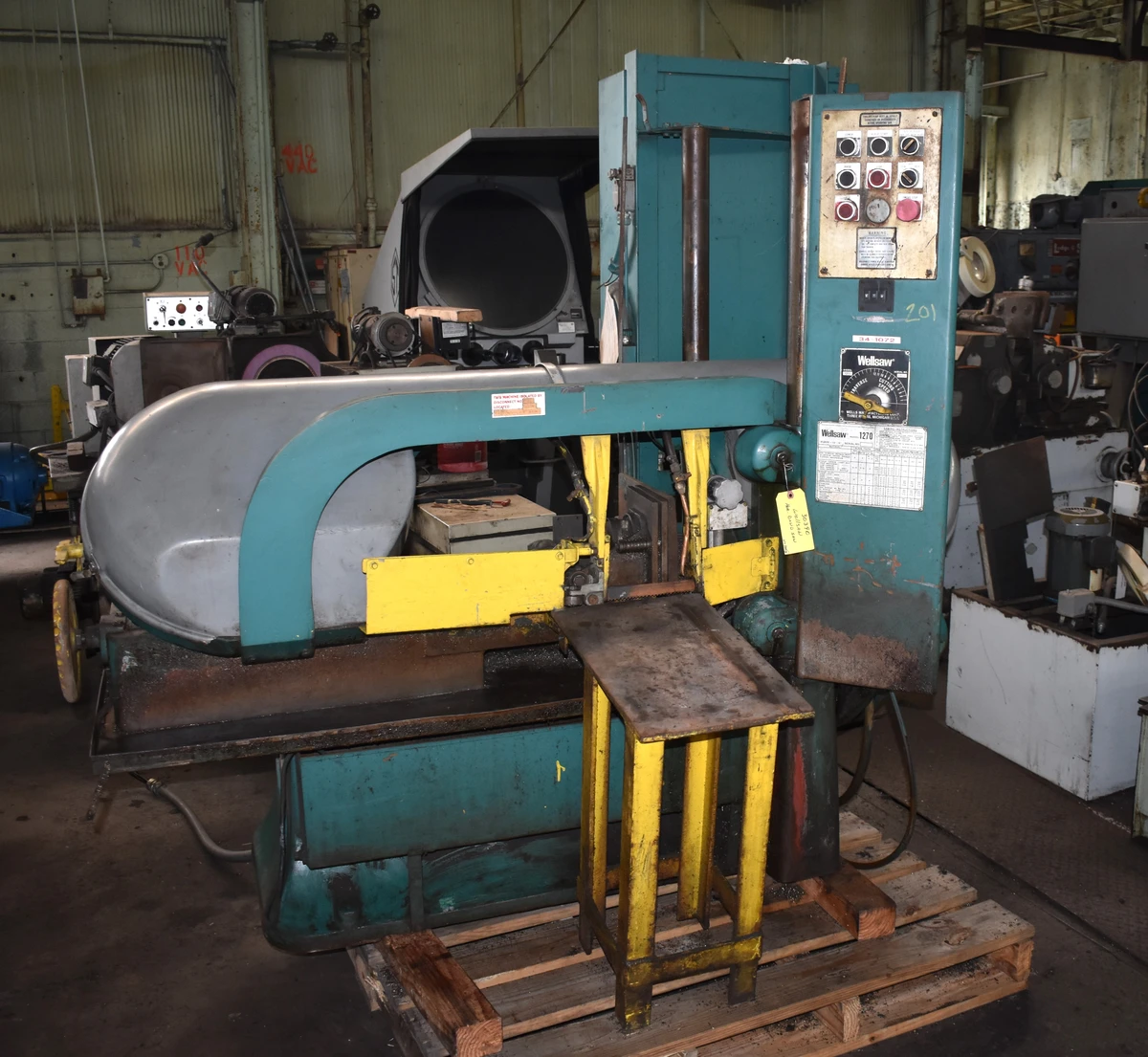

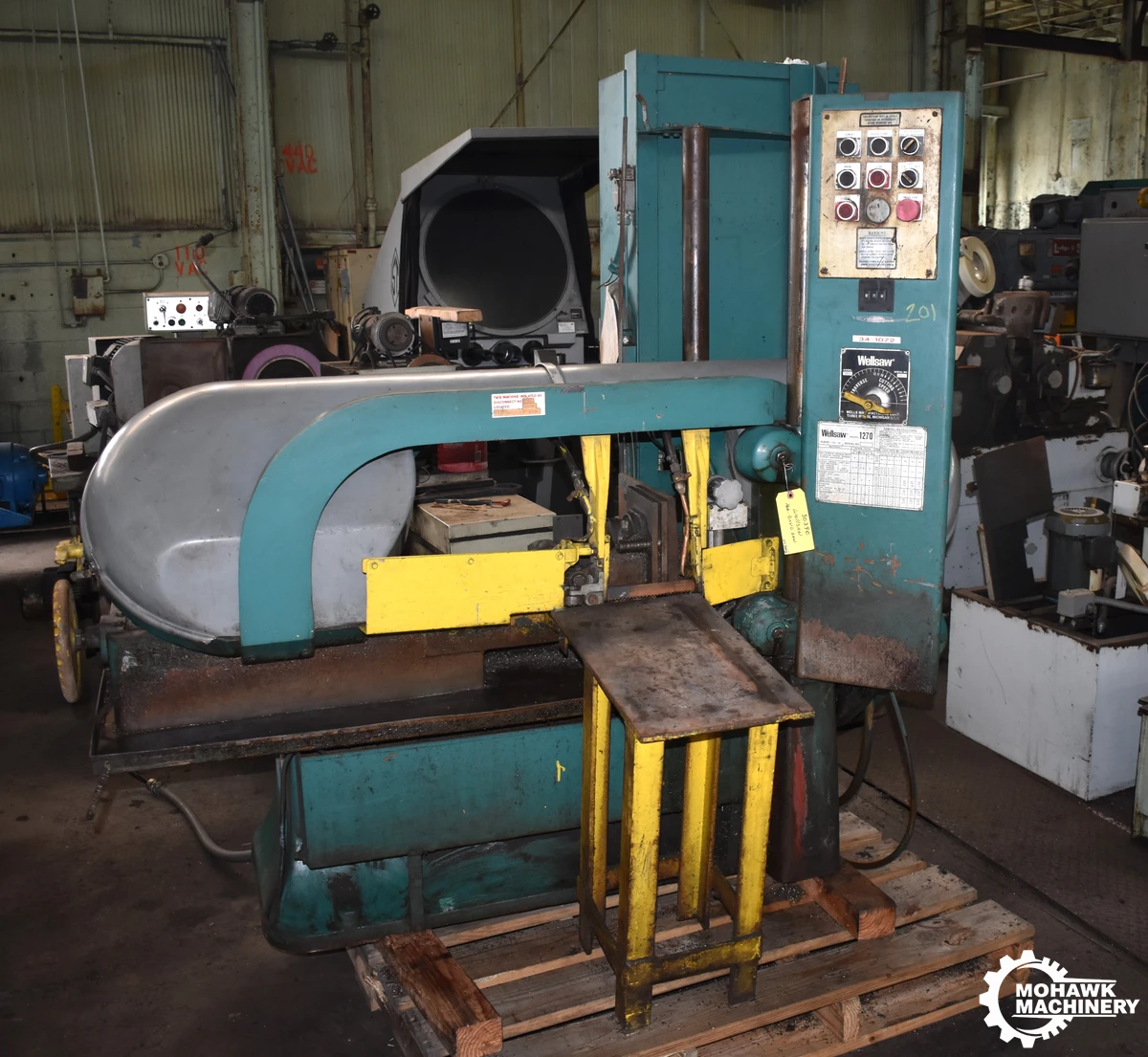

12" x 16" WELLSAW PRODUCTION HORIZONTAL BAND SAW

Serial No 1919, Model 1270

45-Degree Swivel Vise

Push Button Operation

Hydraulic Band Saw Up-Feed and Down-Feed

Coolant System (Tank & Pump)

Rect-Cap (H)11"279.4 mm
Rect-Cap (W)18"457.2 mm
Rounds-Cap12.75"323.85 mm
Square-Cap7.5"190.5 mm
Power2 hp1.5 kW
Type (Auto, Manual, Semi)ManualManual
Blade Width1"25.4 mm
Blade Thickness0.035"0.889 mm
Blade Length162"4,114.8 mm
Dimensions47 x 78 x 6347 x 78 x 63
Weight2100 LBS2100 LBS

Round Stock Capacity, Maximum 12.75"

Flat Stock Capacity, Maximum 12" x 16"

Flat Stock Capacity, Maximum 11" x 18"

Flat Stock Capacity, 45-Degree 7.5" x 7.5"

Band Length 13'6"

Band Width 1"

Band Thickness .035"

Band Speeds, Range 60 to 300 FPM

Motor, Horsepower 1.5 HP

Hydraulic Motor, Horsepower 1/2 HP

Overall Dimensions, W x L 47" x 78"

Overall Height 63"

Weight, Approximately 2100 LBS

F.O.B. OUR WAREHOUSE
