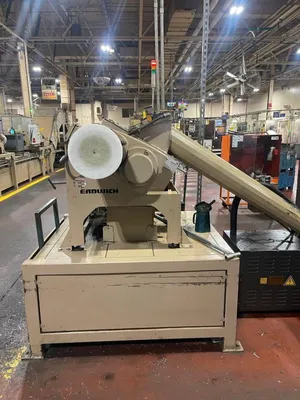

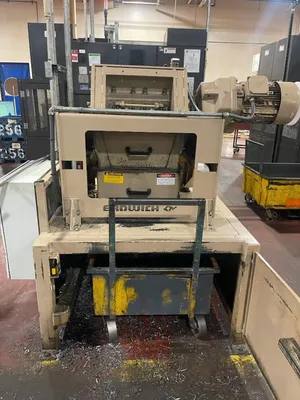

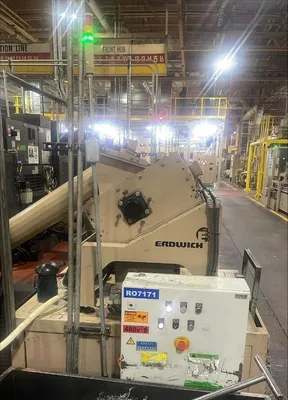

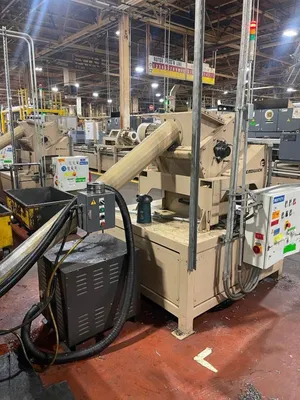

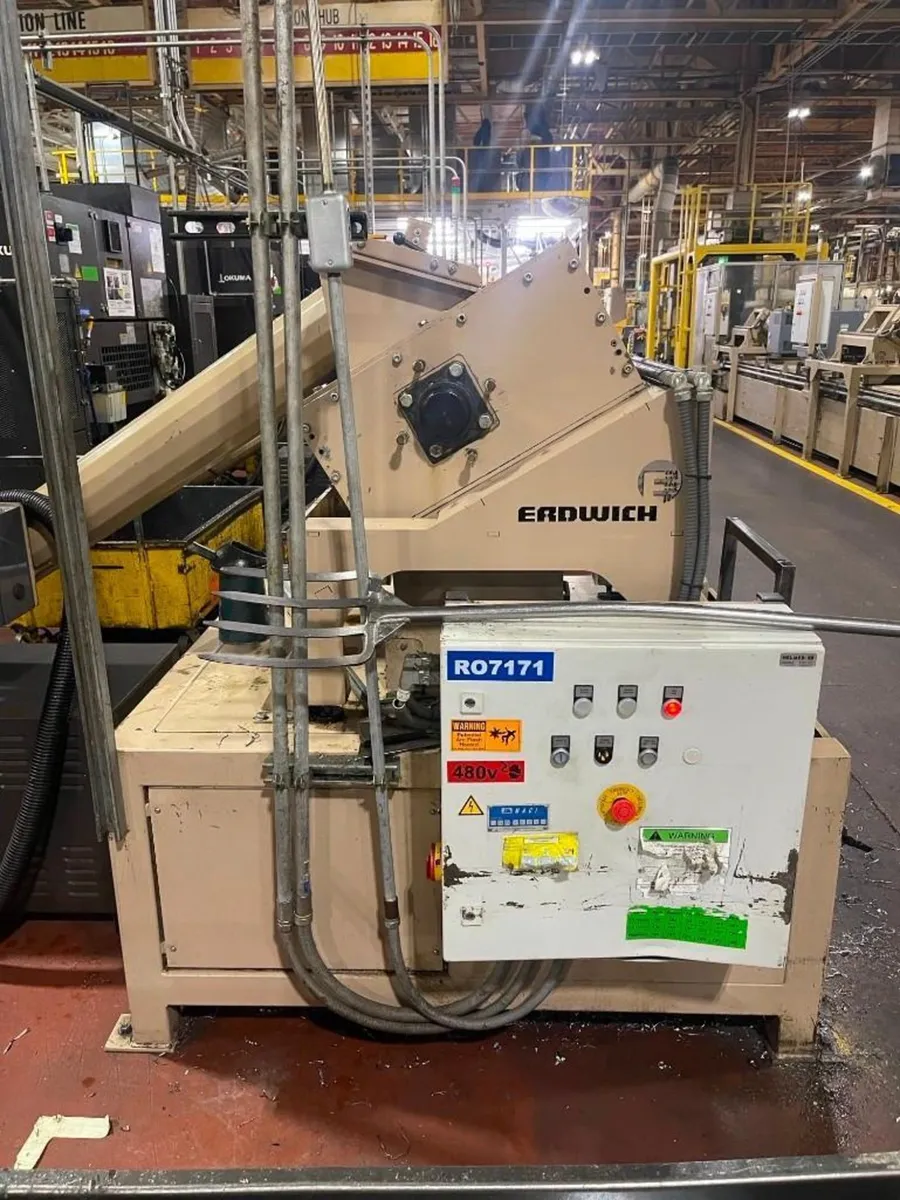

7.5 HP ERDWICH “M600/1-400” TABLE-MOUNTED SINGLE-SHAFT SHREDDER - 15.75” X 19.7” MAXIMUM CUTTING UNIT SIZE - ROTOR/STATOR CUTTING SYSTEM

Cutting Unit Size, L x W 15.75" x 19.7"

Cutting Unit Size, L x W 400MM x 500MM

Diameter Of Punched Sieve .98" - 1.38"

Diameter Of Punched Sieve 25MM - 35MM

Rotor Knife Width .98" 25MM

Drive Motor Horsepwer

Drive Motor KW Rating 5.5 KW

Electrical System 460/3/60

Cutting Unit Weight, Approximately 1100 LB 500KG

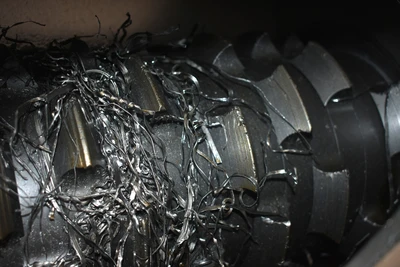

NOTE; This Shredder Is Designed To Have The Material Taken Up By

The Cutting Rotor And Shredded Repeatedly Against The Stator Blade

Using The Tried And Tested Rotor/Stator Principle. This Continues

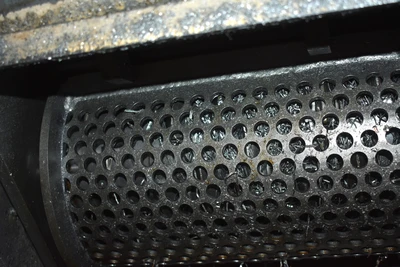

Until The Desired Size Has Been Achieved And The Material Can Pass

Through The Perforated Screen Underneath. This Shredder Can Be

Used For Plastic And Metal Swarf, Metal Castings And Punched

Components, Hospital Waste, Zinc, Slag, Aluminum, Steel, Plastics,

Further Reduction Of Electronic Waste, ETC.

F.O.B. OUR WAREHOUSE
