41.5" x 21" TANNEWITZ "RH" VERTICAL BAND SAW w/DIRECT DRIVE - TILT TABLE - 7.5 HP MOTOR

41.5" x 21" TANNEWITZ "RH" VERTICAL BAND SAW w/DIRECT DRIVE - TILT TABLE - 7.5 HP MOTOR

Have one to sell?
513-771-1952
sales@mohawkmachinery.com
$14,500.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Band Saws
Manufacturer:
TANNEWITZ
Model:
RH
Stock #:
30402
Status:
For Sale

Description

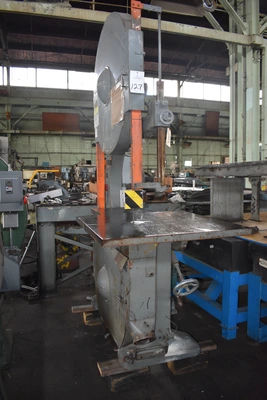

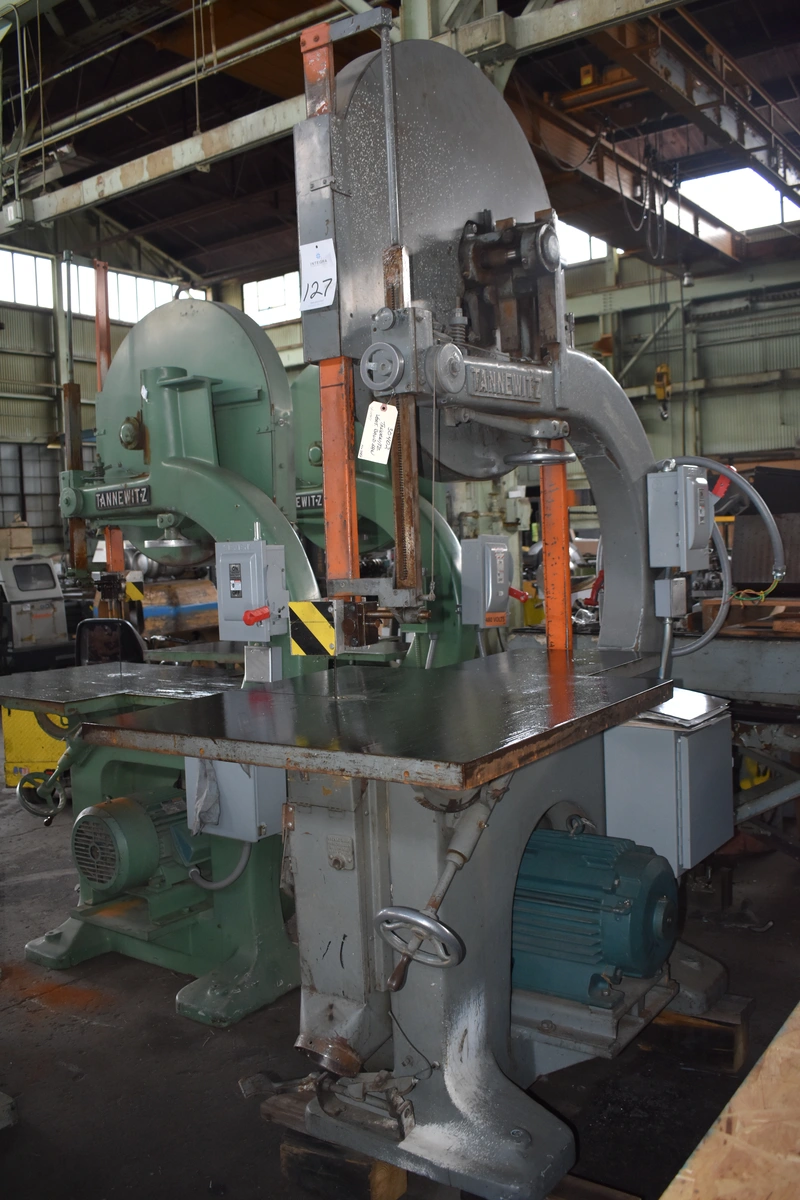

41.5" x 21" TANNEWITZ "RH" VERTICAL BAND SAW

Serial No 14947, Model RH,

Direct Motor Drive

Tilting Main Table & Auxiliary Table

Throat41.5"1,054.1 mm
Work Height21"533.4 mm
Power7.5 hp5.6 kW
Blade Width2"50.8 mm
Blade Length264"6,705.6 mm
FPM76007600
Dimensions37 x 7337 x 73
Weight31503150

Work Capacity, Nominal 41.5" x 21"

Throat Depth, Rated 41.5"

Auxiliary Table Dimensions, W x L 16" x 19"

Main Table Dimensions, W x L 37" x 36"

Table Tilt, Left 5-DEGREES

Table Tilt, Right 45-DEGREES

Table Height 41"

Blade Speed 7600 FPM

Blade Length 22'

Blade Width, Range .125" to 2"

Blade Wheel Diameter 42"

Upper Blade Wheel Adjustment 7"

Motor Horsepower 7.5 HP

Floor Space Required, W x D 37" x 73"

Overall Height 108"

Weight, Approximately 3150 LBS

F.O.B. OUR WAREHOUSE
