35.5" x 20" TANNEWITZ "GH" VERTICAL BAND SAW w/DIRECT DRIVE - TILTING TABLES - 5 HP MOTOR

35.5" x 20" TANNEWITZ "GH" VERTICAL BAND SAW w/DIRECT DRIVE - TILTING TABLES - 5 HP MOTOR

Have one to sell?
513-771-1952
sales@mohawkmachinery.com
$9,950.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Band Saws
Manufacturer:
TANNEWITZ
Model:
GH
Stock #:
30404
Status:
For Sale

Description

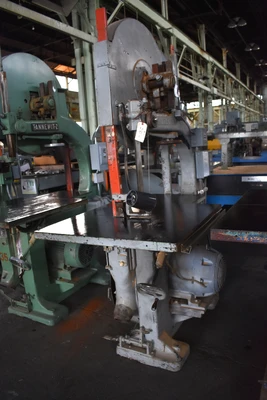

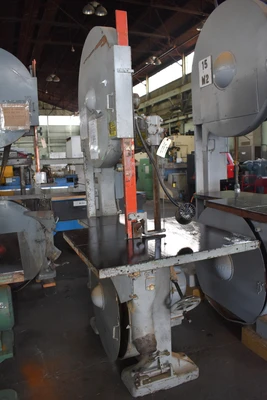

35.5" x 20" TANNEWITZ "GH" VERTICAL BAND SAW

Serial No 8718, Model GH,

Direct Motor Drive

Tilting Main Table & Auxiliary Table

Throat35.5"901.7 mm
Work Height20"508 mm
Power5 hp3.7 kW
Blade Width2"50.8 mm
Blade Length237"6,019.8 mm
FPM80008000
Dimensions37 x 6537 x 65
Weight29002900

Work Capacity, Nominal 35.5" x 20"

Throat Depth, Rated 35.5"

Auxilliary Table Dimensions, W x L 16" x 19"

Main Table Dimensions, W x L 37" x 36"

Table Tilt, Left 5-DEGREES

Table Tilt, Right 45-DEGREES

Table Height 41"

Blade Speed 8000 FPM

Blade Length 19'9"

Blade Width, Range .125" to 2"

Blade Wheel Diameter 36"

Upper Blade Wheel Adjustment 7"

Motor Horsepower 5 HP

Floor Space Required, W x D 37" x 65"

Overall Height 104"

Weight, Approximately 2900 LBS

F.O.B. OUR WAREHOUSE
