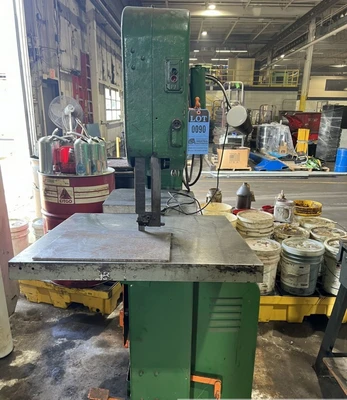

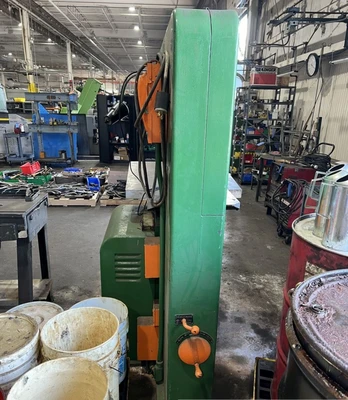

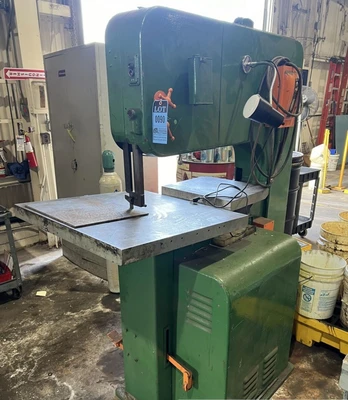

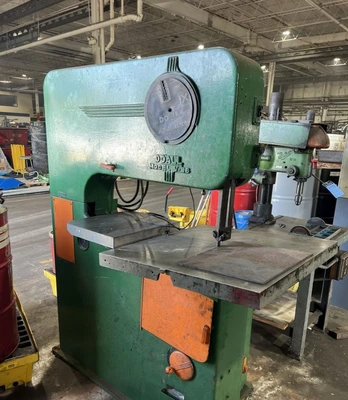

36" x 10" DOALL "V36” CONTOUR VERTICAL BAND SAW w/MAIN & AUXILIARY TABLE

Work Capacity, Nominal .......... 36" x 10"

Work Height Capacity, Maximum .......... 10"

Throat Depth, Rated .......... 36"

Table Dimensions (Overall), W x L .......... 30" x 30"

Table Tilt, Forward 35-DEGREES

Table Tilt, Backward 10-DEGREES

Table Tilt, Right 10-DEGREES

Table Tilt, Left 10-DEGREES

Auxilliary Table Dimensions, W x L .......... 17" x 20"

Blade Length .......... 162"

Blade Wheel Diameter .......... 16"

Blade Speeds, Infinitely Variable .......... 50 to 1500 FPM

Main Motor, Horsepower/RPM .......... 1-1/2 HP/1755 RPM

Electrical System .......... 440/3/60

Floor Space Required, W x D .......... 3'4" x 6'4"

Overall Height .......... 6'5"

Weight, Approximately .......... 2485 LBS

F.O.B. OUR WAREHOUSE
