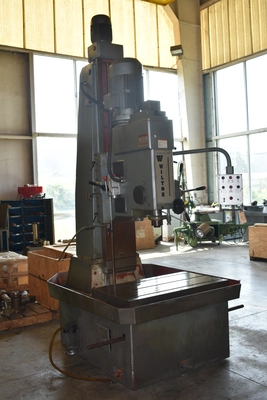

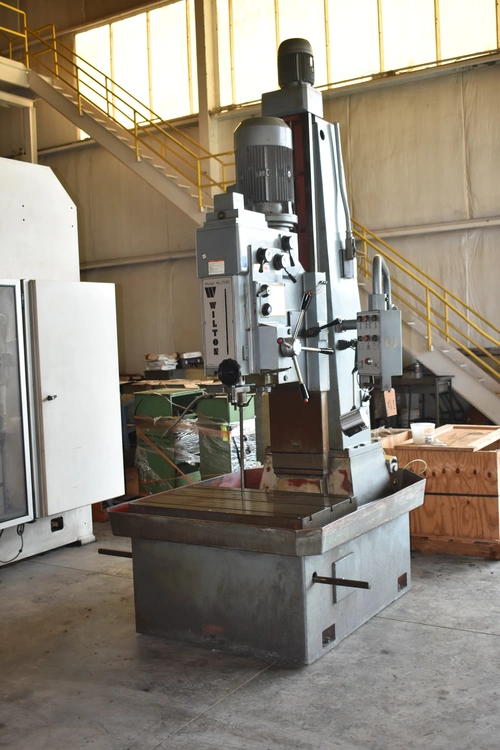

48" WILTON "2580" GEARED-HEAD EXTRA-HEAVY-DUTY BOX COLUMN DRILL PRESS w/POWER DOWN FEED - AUTO TOOL EJECTION -21” X 41” TABLE - 1000 LB LOAD CAPACITY

48" WILTON EXTRA-HEAVY-DUTY BOX COLUMN DRILL PRESS
Serial No 186/2240, Model 2580,

EQUIPPED WITH:
Geared Head
Box Column Design
Power Down-Feed to Spindle
Automatic Tool Ejector
Coolant System in Base

CATALOG SPECIFICATIONS:
Swing to Center of Circle, Maximum 48"
Drilling Capacity, Mild Steel 2-7/8"
Drilling Capacity, Cast Iron 3-3/16"
Tapping Capacity, Mild Steel 2-3/8"
Tapping Capcity, Cast Iron 3-5/16"
Table Dimensions, W x L 23.6" x 40.9"
Table Load Capacity 1000 LBS
Vertical Spindle Travel, Power 11"
Spindle-Face to Table, Maximum 57.9"
Spindle-Face to Table, Minimum 21.1"
Spindle-Center to Column 24"
Spindle Taper #5 MT
(12) Spindle Speeds, Range 42 to 1485 RPM
Motor, Horsepower 10 HP
Base Dimensions Overall, W x D 47.25" x 65.375"
Weight, Approximately 4675 LBS
F.O.B. OUR WAREHOUSE
