6'6" U.S. INDUSTRIAL MACHINERY "US446" 44-TON CNC HYDRAULIC PRESS BRAKE w/2-AXIS CNC BACK GAUGE - RAM DEFLECTION ADJUSTMENT

Have one to sell?

sales@mohawkmachinery.com

$14,500.00 USD

ConditionUsed

Quantity

1 available

U.S. INDUSTRIAL MACHINERY US446 Brakes (Press Brakes) | Mohawk Machinery (1)

U.S. INDUSTRIAL MACHINERY US446 Brakes (Press Brakes) | Mohawk Machinery (2)

U.S. INDUSTRIAL MACHINERY US446 Brakes (Press Brakes) | Mohawk Machinery (3)

U.S. INDUSTRIAL MACHINERY US446 Brakes (Press Brakes) | Mohawk Machinery (4)

U.S. INDUSTRIAL MACHINERY US446 Brakes (Press Brakes) | Mohawk Machinery

Have one to sell?

Overview

Type:

Brakes (Press Brakes)

Manufacturer:

U.S. INDUSTRIAL MACHINERY

Model:

US446

Stock #:

30416

Status:

For Sale

Description

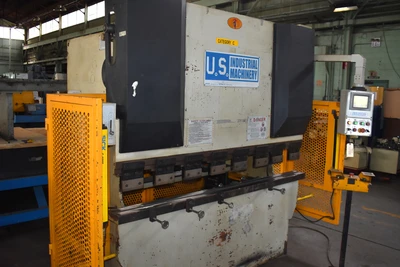

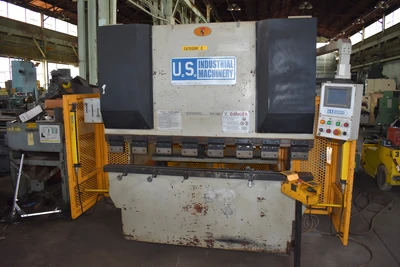

6'6" U.S. INDUSTRIAL MACHINERY 44-TON CNC HYDRAULIC

PRESS BRAKE

Serial No W2004-138, Model US446

Equipped With

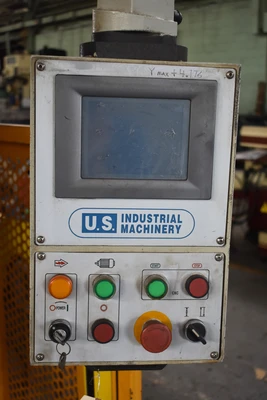

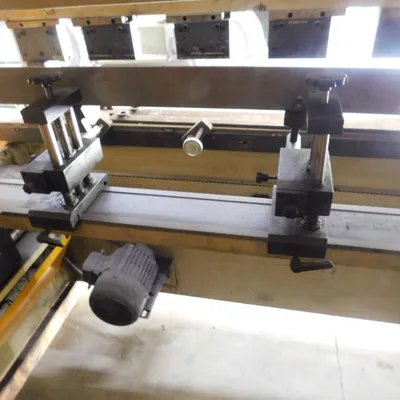

US Industrial 2-Axis CNC Back Gauge

Ram Deflection Adjustment

Mechanical Ram Depth Control

Massive Torsion Bar or Parallelism

Sick Model C4000 Light Curtain System

Specifications

ImperialMetric

Tonnage	44 T	39.916 t
Type	HYD	HYD
Overall Length	6.55'	2 m
Between Housings	5.31'	1.6 m
Stroke	3.93"	99.822 mm
Dimensions	101'' x 60''	101'' x 60''
Weight	7700 LBS	7700 LBS

Tonnage Capacity 44 TONS

Overall Bending Length 78.7"

Distance Between Housings 63.7"

Open Height 12.5"

Stroke Of Ram 3.93"

Stroke Adjustment of Ram 1.96"

Throat Depth 7.8"

Approach Speed, Rated 2.4 IPS

Return Speed, Rated 2.0 IPS

Motor Horsepower 7.5 HP

Overall Dimensions, L x W 101" x 60"

Overall Height 80"

Weight, Approximately 7,700 LBS

F.O.B. OUR WAREHOUSE
