5 HP SWISHER STYLE VERTICAL-SPINDLE ROTARY SURFACE GRINDER w/6” x 12” MAGNETIC CHUCK - 8” MAXIMUM WHEEL TO CHUCK

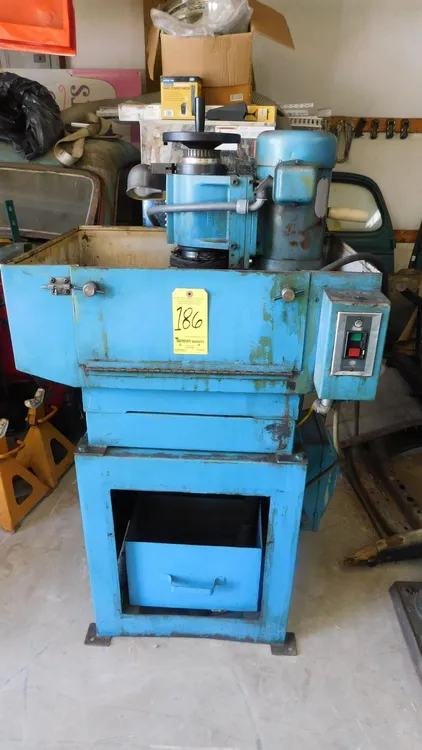

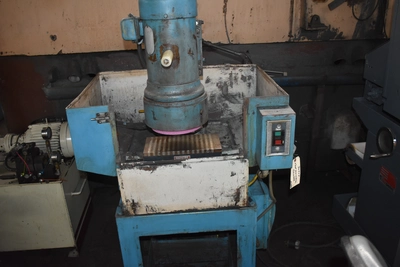

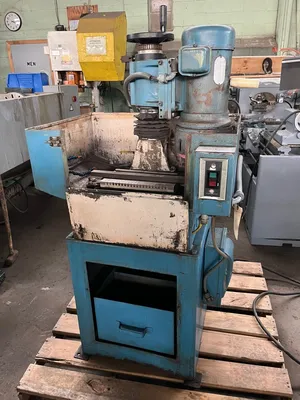

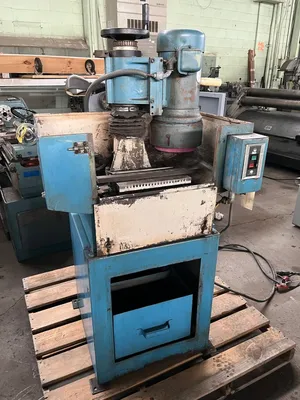

5 HP SWISHER STYLE VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 30002

EQUIPPED WITH:

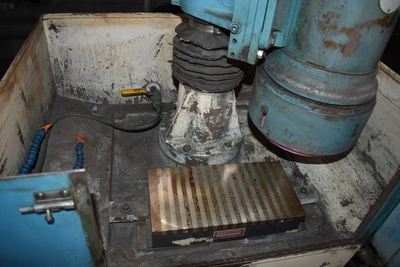

6" x 12" Magnetic Chuck

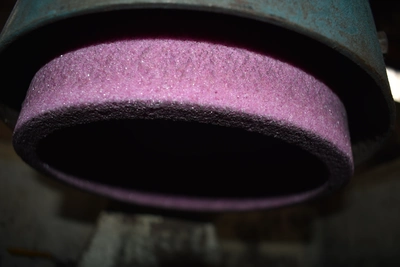

Type 6 Straight Cup Grinding Wheel Design
(8" O.D. x 3" High x 3/4" Back x 1/2" Wall x 3.3 Bore)
Coolant System (Built-In)

CATALOG SPECIFICATIONS:
Swing Inside Splash Pan 180 Degrees
Height Under Grinding Wheel, Maximum 11"
Height Under Wheel To Chuck, Maximum 8"
Grinding Wheel Diameter, Maximum 8"
Grinding Wheel Height, Maximum 3"
Grinding Wheel Wall, Maximum 0.5"
Grinding Wheel Back .75"
Grinding Wheel Hole Diameter 3.3"
Grinding Wheel Speed 1725 RPM
Spindle Motor, Horsepower 5 HP
Overall Dimensions, W x D 3' x 3'4"
Overall Height 6'2"
Weight, Approximately 1030 LBS
F.O.B. OUR WAREHOUSE
