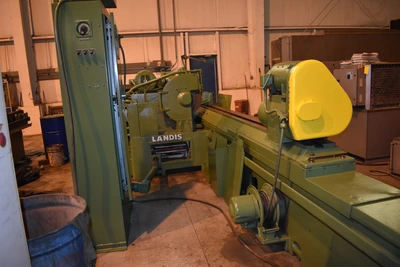

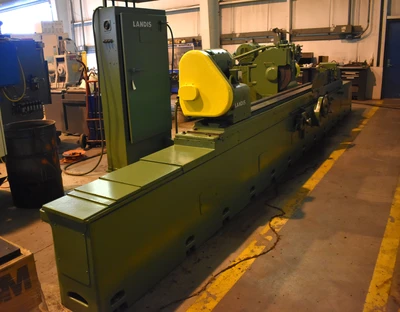

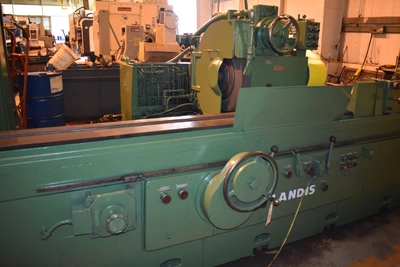

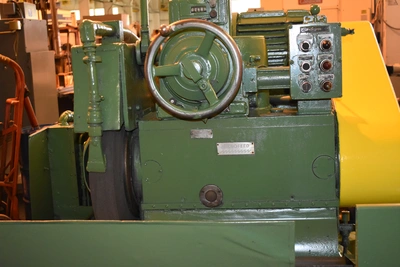

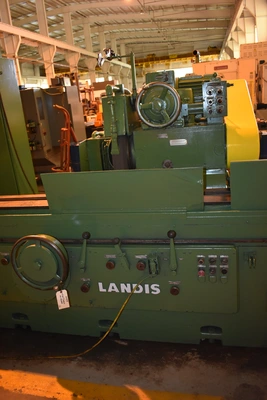

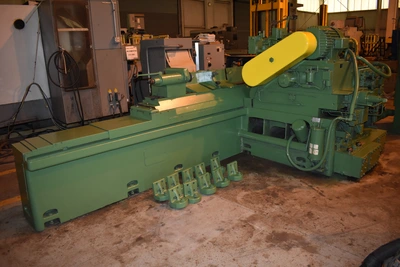

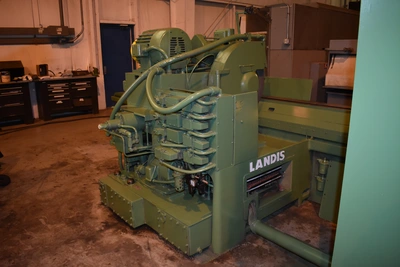

14" X 120" LANDIS "LC" PLAIN HYDRAULIC CYLINDRICAL GRINDER w/FOLLOW RESTS - WHEEL DRESSER

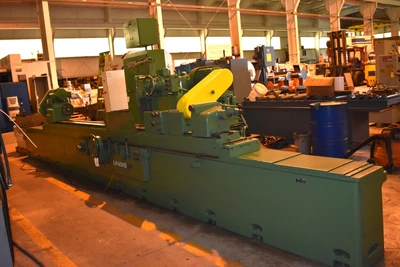

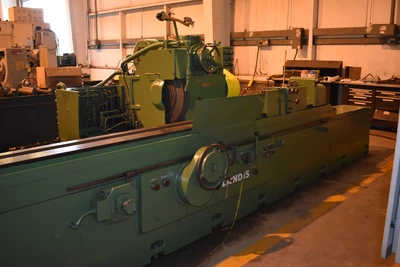

14" X 120" LANDIS PLAIN HYDRAULIC CYLINDRICAL GRINDER
Serial No. 760-13, Model LC

EQUIPPED WITH:

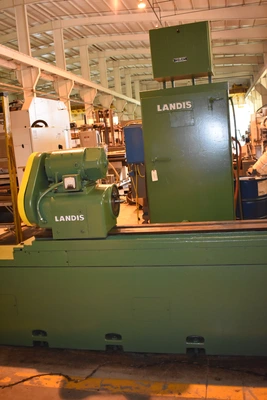

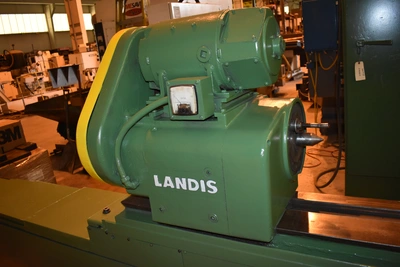

DC Variable-Speed Headstock

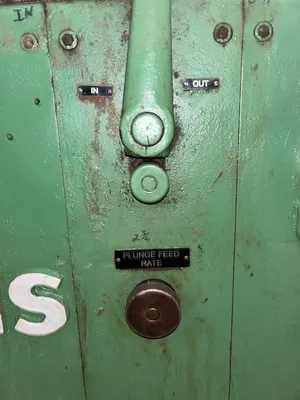

Plunge Feed

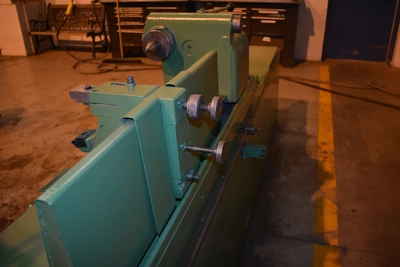

Lever/Handwheel Adjustable Tailstock
Trabon Lubrication System
Tailstock-Mounted Grinding Wheel Dresser
(2) Follow Rests
Federal Gauging

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 14-3/4"
Grinding Diameter, w/30" Wheel 14"
Distance Between Centers, Maximum 120"
Table Swivel, Included Angle 3-DEGREES
Table Swivel, Taper Per Foot 5/8"
Grinding Wheel, Standard Diameter 30"
Grinding Wheel, Width 3"
Grinding Wheel, Hole Diameter 12"
Grinding Wheel Speeds 810 & 1060 RPM
Longitudinal Table Feeds, Infinite 3 to 130 IPM
Workhead & Tailstock Center Tapers 14 JARNO
Grinding Wheelhead Spindle Motor 15 HP/1755 RPM
Workhead Motor, Horsepower 1 HP DC
Electrical System 220-440/3/60
Floor Space Required, L x D 27'8" x 6'11"
Weight, Approximately 19200 LBS
F.O.B. OUR WAREHOUSE
