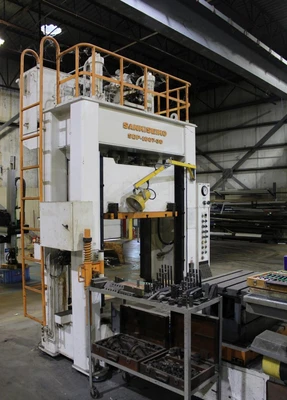

30 TON SANKISEIKO "SDP1007-30TA/F180" STRAIGHT-SIDE HYDRAULIC REVERSING-TYPE DIE & MOLD SPOTTING TRYOUT PRESS w/28” X 40” TRAVELING TABLE - EJECTOR

30 TON SANKISEIKO "SDP1007-30TA/F180" STRAIGHT-SIDE
HYDRAULIC REVERSING-TYPE DIE & MOLD SPOTTING/TRYOUT PRESS

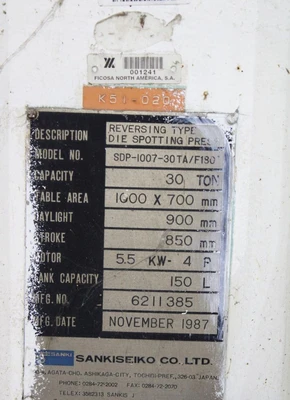

New 1987, Serial No 6211385, Model SDP1007-30TA/F180

EQUIPPED WITH:
Straight-Side Frame - Traveling Table Design

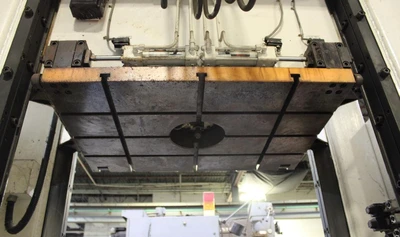

T-Slotted Table & Ram - Ejector
180-Degree Reversing Device
Trial Device - Gauging - Hydraulics
Some Clamps & Shims

CATALOG SPECIFICATIONS:
Tonnage Capacity Pressing, Variable 6 to 30 TONS
Tonnage Capacity Lifting 17 TONS
Slide Stroke Length 33.4" 850MM
Table Stroke Length 57" 1450MM
Reversing Device Stroke Length 18.3" 465MM
Trial Device Stroke Length 8.6" 220MM
Ejector Device Stroke Length 7.4" 190MM
Daylight 35.4" 900MM
Slide & Table Area, L x W 39.4" x 27.55"
Slide & Table Area, L x W 1000MM x 700MM
Table Load Capacity 3 TONS
Load Capacity Clapper 1.2 TONS
Press Speed, Down 2 IPS 51 MMPS
Press Speed, Pressing .4 IPS 11 MMPS
Press Speed, Up 3.5 IPS 89 MMPS
Table Speed In & Out 3.9 IPS 100 MMPS
Reversing Device, Open Speed 1.1 IPS 30 MMPS
Reversing Device, Close Speed 1.5 IPS 40 MMPS
Motor Horsepower Rating 7.3 HP
Motor KW Rating 5.5 KW

NOTE: This Machine Was Designed For Plastic Molds & Diecast Mold Spotting.
Box Table And Tooling Stand In Photos Are Not Included With This Press.
F.O.B. OUR WAREHOUSE
