10 TON DENSON "DMC1410" HYDRAULIC MOLD FLIPPER LIFT TABLE w/DUAL TILTING LIFT TABLES - PENDANT CONTROL
Have one to sell?
$12,500.00 USD
ConditionUsed
1 available

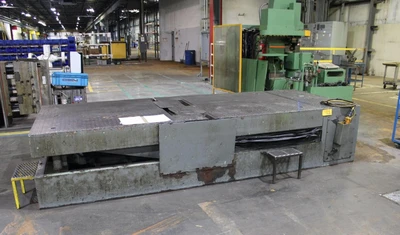

10 DENSON HYDRAULIC MOLD FLIPPER LIFT TABLE

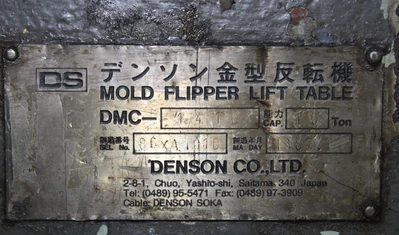

New 1987, Serial No 86XA1010, Model DMC-1410
Dual Tilting Lift Tables
Hand Held Pendant Control
Floor Mounted Design
Tonnage Capacity 10 TONS
Lift Table Dimensions, W x L 55" x 55" EACH
Lift Table Dimensions, W x L 1400 x 1400MM
Table Working Surface, W x L 55" x 122"
Cylinder Stroke Length 26.3" 670MM
Cylinder Diameter 6.29" 160MM
Oil Tank Reservoir 13.4 GALLONS 51 LITERS
Motor Horsepower 10 HP 7.5 KW
Overall Table Dimensions, L x W 144" x 55"
Overall Height, Tables Down 29"
Overall Machine Dimensions, Including Steps 152" x 71"
Weight Approximately 11800 LBS
F.O.B. OUR WAREHOUSE
