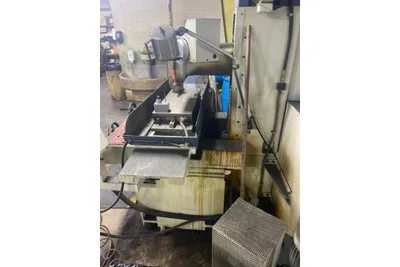

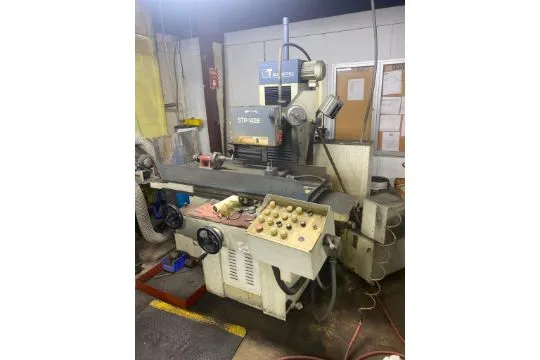

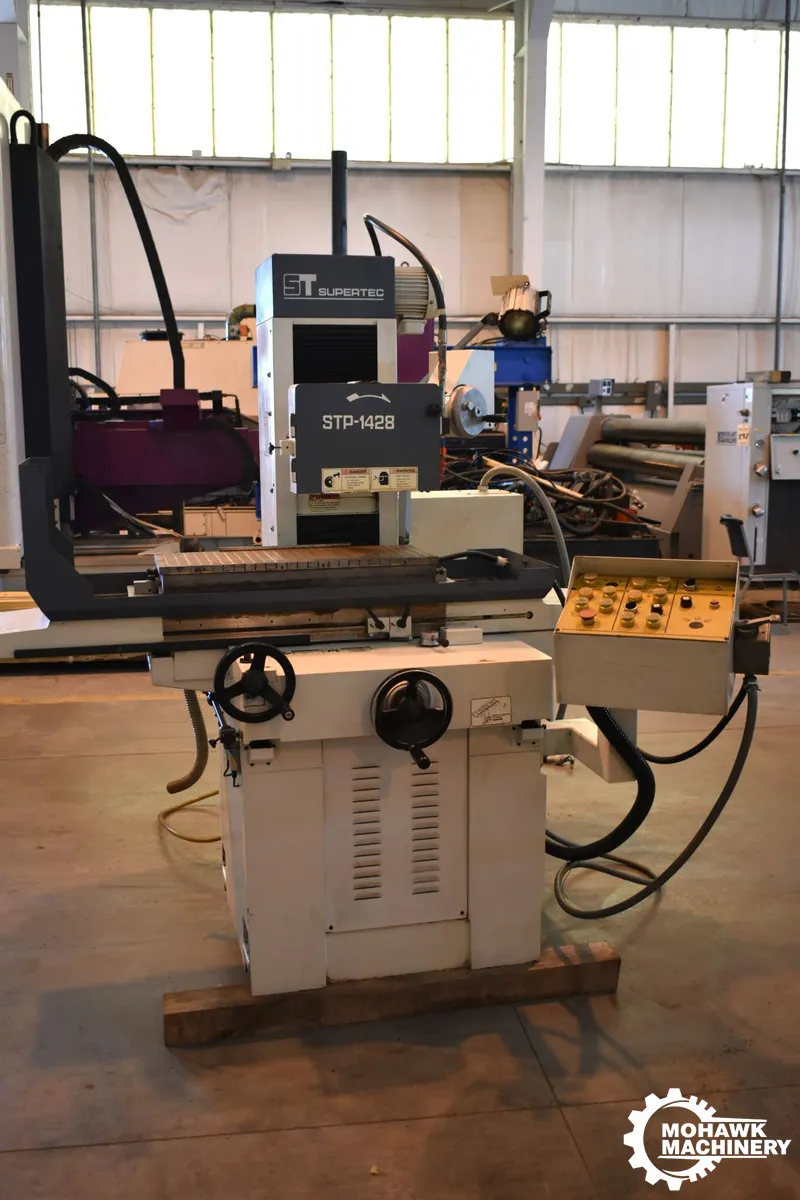

12" x 24" SUPERTEC "STP1428A" AUTOMATIC SADDLE-TYPE HORIZONTAL-SPINDLE SURFACE GRINDER w/ELECTRO-MAGNETIC CHUCK

12" x 24" SUPERTEC AUTOMATIC SADDLE-TYPE
HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER
New 2006, Serial No PB06015, Model STP-1428A,

EQUIPPED WITH:
12" x 24" Electro-Magnetic Chuck
Automatic Lubrication System
Coolant System

CATALOG SPECIFICATIONS:
Table Working Surface, W x L 12" x 24"
Grinding Width Capacity, Maximum 12"
Grinding Length Capacity, Maximum 26"
Height Spindle Center to Table, Maximum 20"
Table Load Capacity, Maximum 880 LBS
Table Longitudinal Travel, Hydraulic 26"
Table Longitudinal Travel, Manual 28"
Table Cross Travel 14"
Grinding Wheel Diameter, Standard 12"
Grinding Wheel Width, Standard 1.25"
Grinding Wheel Hole Diameter 3"
Grinding Spindle Speed 1710 RPM
Table Longitudinal Feeds, Range 10 to 82 FPM
Crossfeed Travel Feeds, Automatic 0.02 to 0.32" IPR
Rapid Traverse, Vertical 7.5 IPM
Spindle Horsepower 3 HP
Hydraulic Motor Horsepower 2 HP
Overall Dimensions, L x W 78" x 89"
Overall Height 89"
Weight, Approximately 4510 LBS
F.O.B. OUR WAREHOUSE
