| Rect-Cap (H) | 20" | 508 mm |
| Rect-Cap (W) | 20" | 508 mm |
| Rounds-Cap | 20" | 508 mm |
| Square-Cap | 20" | 508 mm |
| Power | 7.5 hp | 5.6 kW |
| Type (Auto, Manual, Semi) | 'Auto' | 'Auto' |
| Blade Width | 2" | 50.8 mm |
| Blade Thickness | 0.05" | 1.27 mm |
| Blade Length | 229" | 5,816.6 mm |
| Weight | 8580 | 8580 |

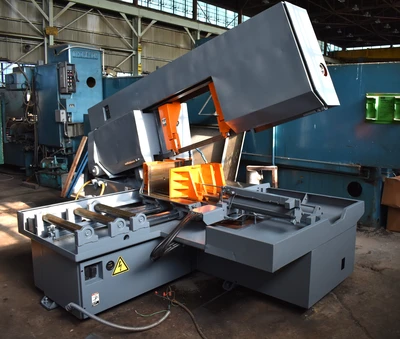

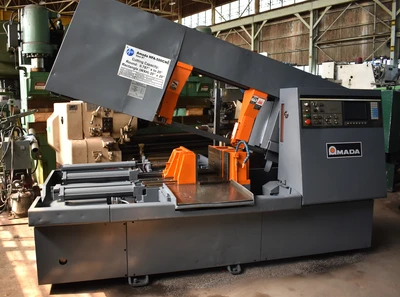

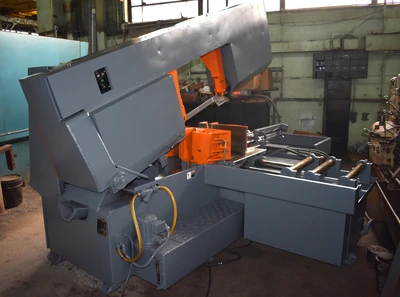

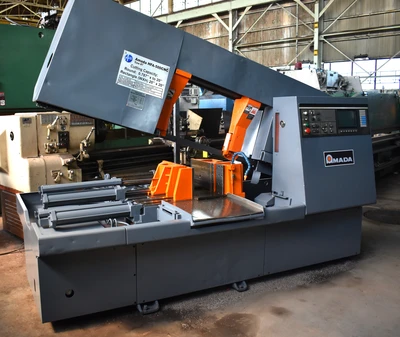

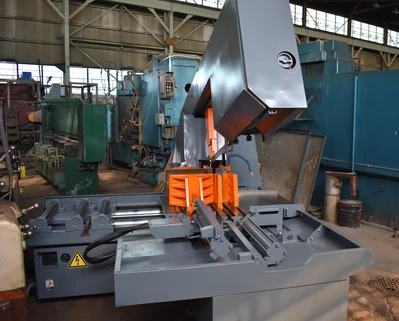

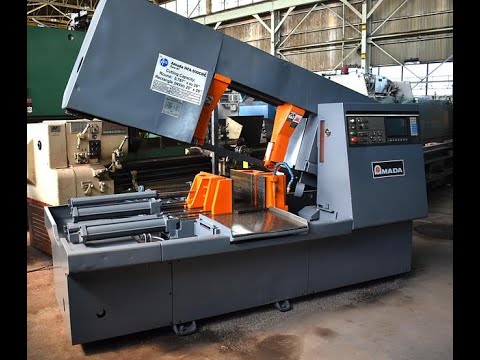

20" x 20" AMADA "HFA-500CNC" FULLY-AUTOMATIC
HORIZONTAL BAND SAW
Serial No 51340105, Model HFA-500CNC
EQUIPPED WITH:

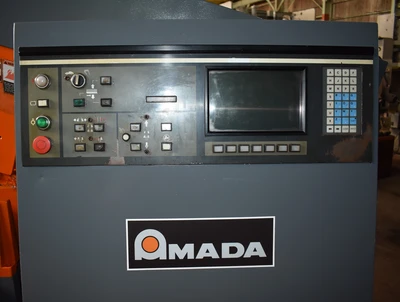

Amada Programmable Control

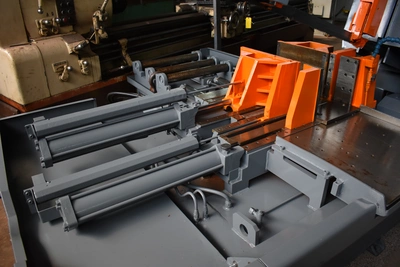

Hydraulic-Driven Stock-Feed Table w/Multi-Feed
Hydraulic Band Saw Up-Feed and Down-Feed
Hydraulic Blade Tensioning
CATALOG SPECIFICATIONS:
Round Stock Capacity, Maximum 20"
Square Stock Capacity, Maximum 20" x 20"
Work Load Capacity 5733 LBS
Band Length 19'1"
Band Width 2"
Band Thickness .050"
Feed Length, Range 0.2 to 393"
Blade Speeds Range, Inf Var 66 to 472 FPM
Blade Motor, Horsepower 7.5 HP
Hydraulic Motor, Horsepower 2 HP
Weight Approximately 8580 LBS
F.O.B. OUR WAREHOUSE
