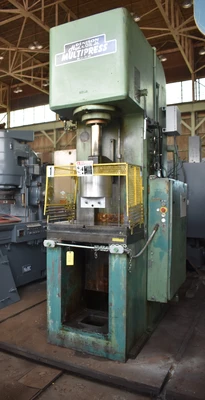

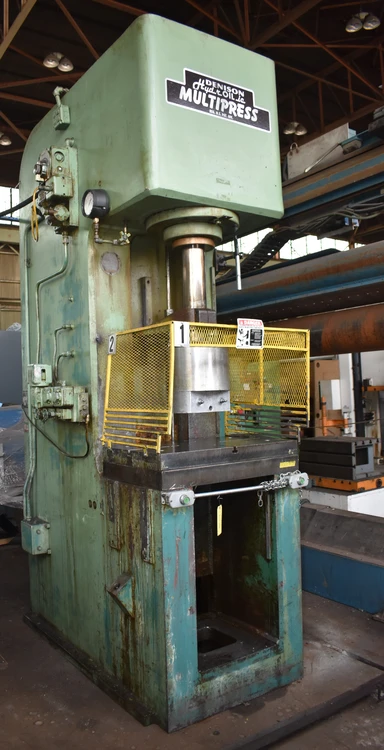

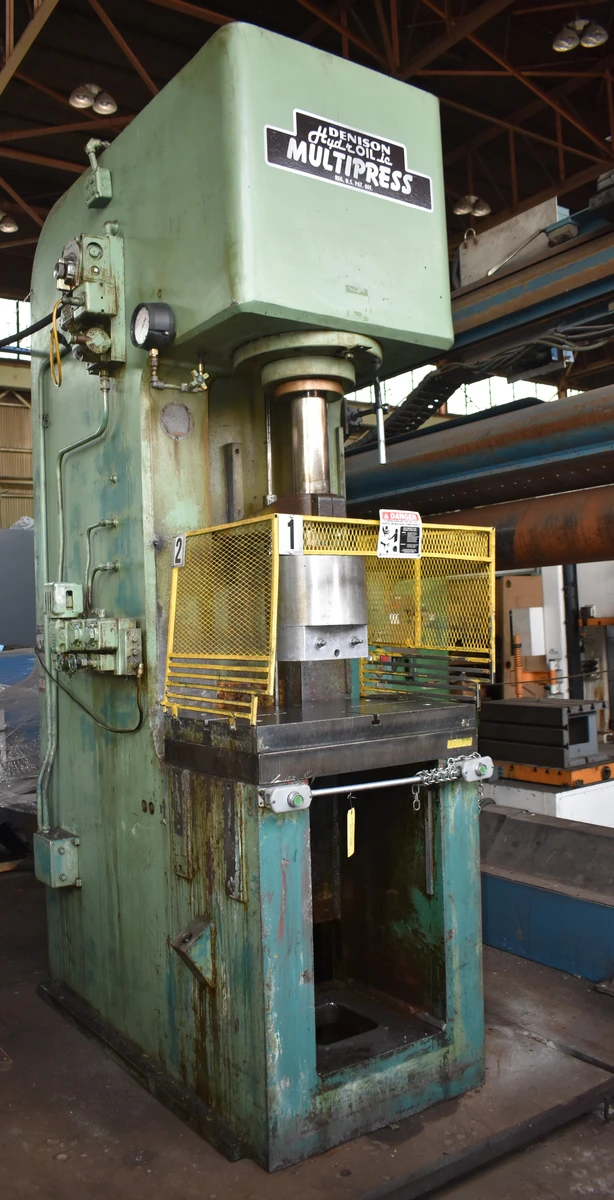

50 TON DENISON "MULTIPRESS" EXTRA-HIGH GAP-FRAME HYDRAULIC PRESS w/36” DAYLIGHT - 31” X 20” BOLSTER
Have one to sell?
$12,500.00 USD
ConditionUsed
1 available
50 TON DENISON "MULTIPRESS" EXTRA-HIGH GAP-FRAME
HYDRAULIC PRESS
Serial No 18348, Model NA50C95DO2A129KO SPECIAL
Shop Order 92190A
36" Daylight
31" x 19.75" T-Slotted Bolster Plate
C95 Automatic Cycling Control Valve - PF07Q-020-51W Hydraulic Pump
Tonnage Capacity 50 TON
Stroke Length 15"
Daylight, Maximum 36"
Main Cylinder Diameter 6"
Ram Diameter 4.25"
Bed Area, L-R x F-B 32" x 19.5"
Throat Depth 12"
Ram Speed, Rapid Approach 290 IPM
Ram Speed, Pressing 145 IPM
Ram Speed, Rapid Return 290 IPM
Hydraulic System Pressure, Maximum 3950 PSI
Hydraulic Motor, Horsepower/RPM 30 HP
Overall Dimensions, W x D 2'11" x 4'8"
Overall Height 106"
Weight, Approximately 10000 LBS
F.O.B. OUR WAREHOUSE
