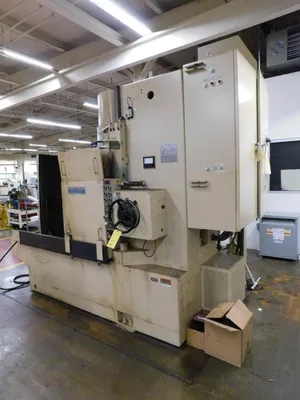

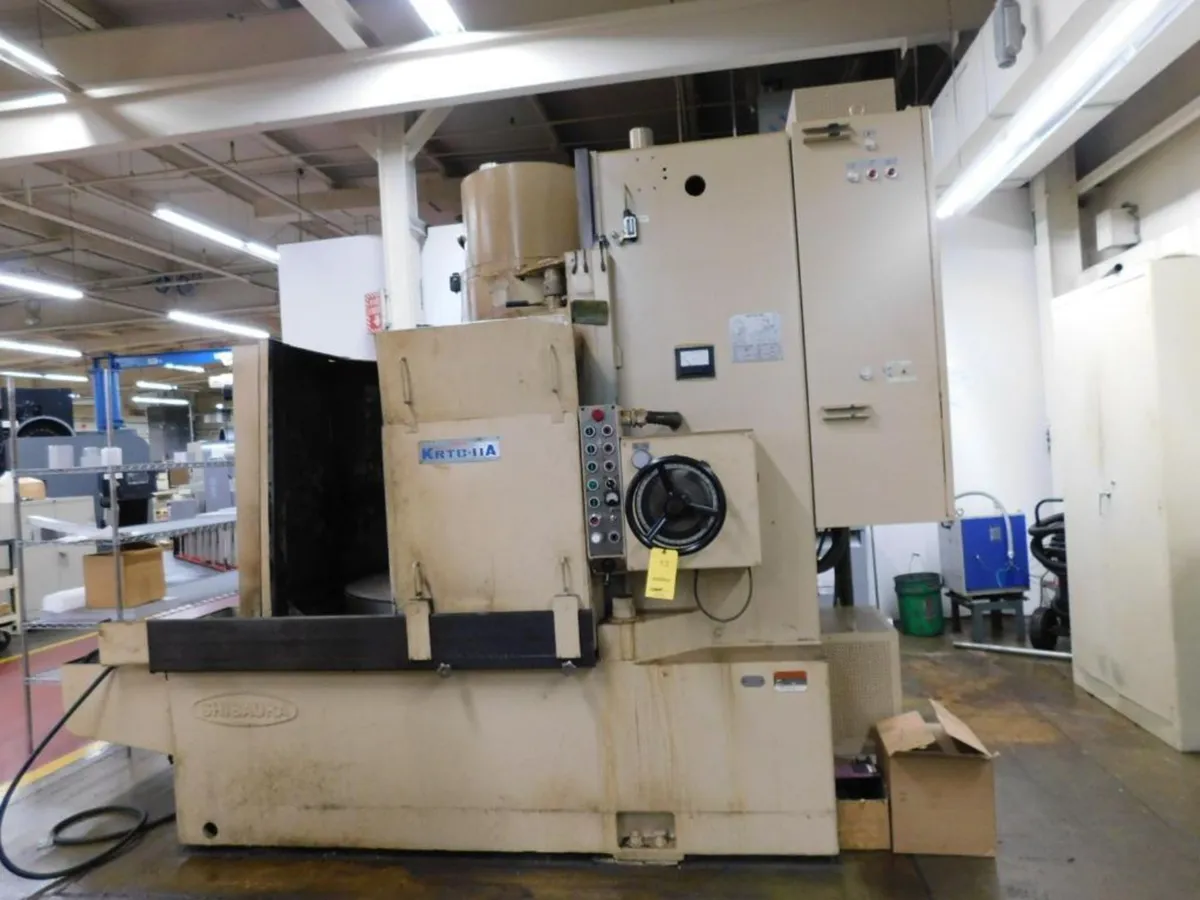

42.5/45" TOSHIBA-SHIBAURA "KRTC-11A" VERTICAL-SPINDLE ROTARY SURFACE GRINDER w/SEGMENTED GRINDING WHEEL -23.6” HEIGHT UNDER WHEEL - 50 HP MOTOR
Have one to sell?
$24,500.00 USD
ConditionUsed
1 available

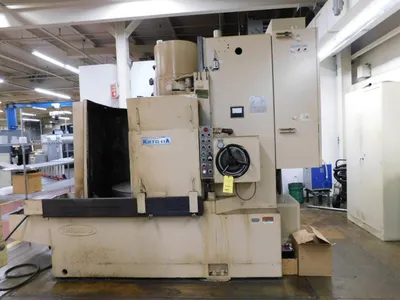

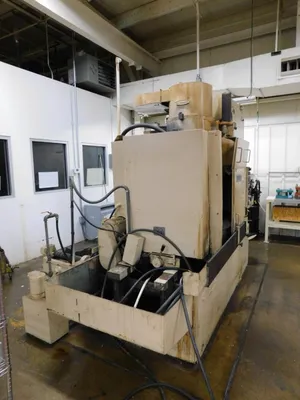

42.5/45" TOSHIBA/SHIBAURA VERTICAL-SPINDLE
ROTARY SURFACE GRINDER

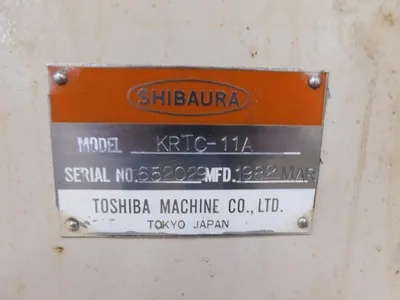

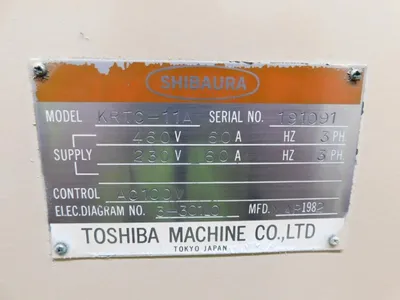

New 1982, Serial No 652029, Model KRTC-11A
Vertical-Spindle Machine Design

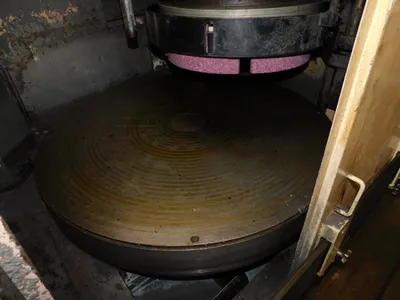

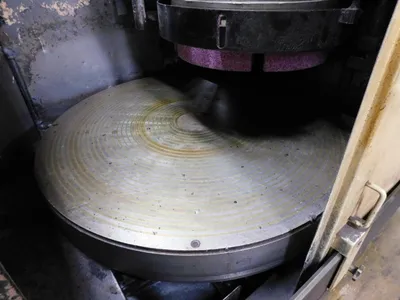

42.5" Diameter Magnetic Chuck w/Neutrofier

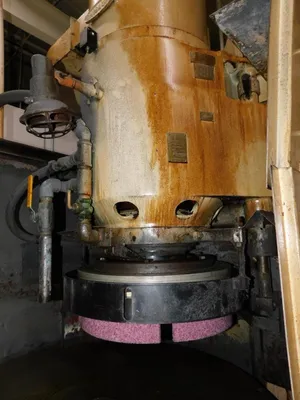

22" Segmented Grinding Wheel
Ammeter For Wheel Motor
Automatic Lube System

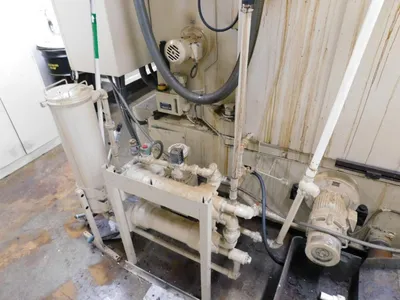

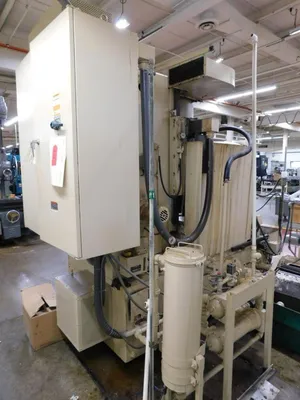

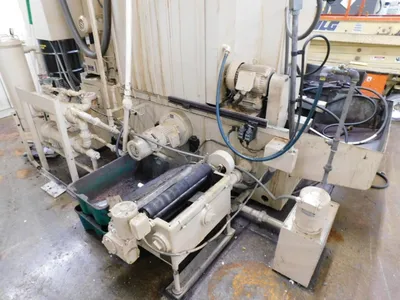

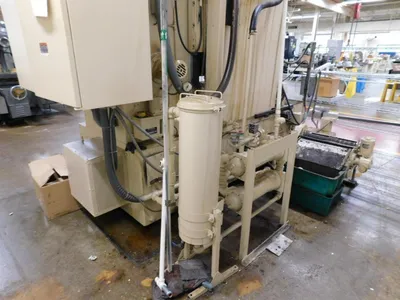

Coolant System w/Seperator
Magnetic Chuck, Diameter 42.5"
Swing Between Coolant-Guards 45"
Work Height Under Wheel, Maximum 23.6"
Grinding Wheel Diameter, Maximum 22"
Wheel Head Feed Variable, Range .004 TO .12 IPM
Table Speeds Variable, Range 6 TO 22 RPM
Spindle Motor, Horsepower 50 HP
Table Rotation Motor, Horsepower 3/1.5 HP
Table Feed Motor, Horsepower 1 HP
Floor Space Required, L x W 65" x 125"
Overall Height 97"
Weight, Approximately 15000 LBS
F.O.B. OUR WAREHOUSE
