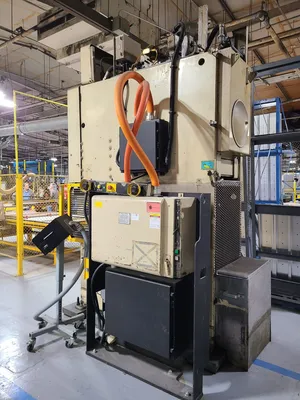

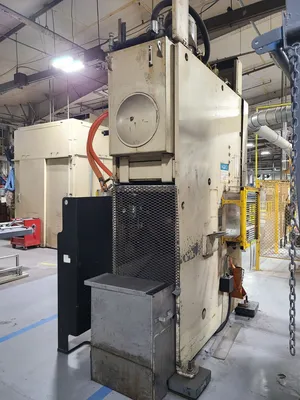

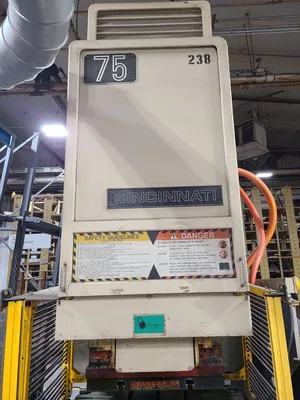

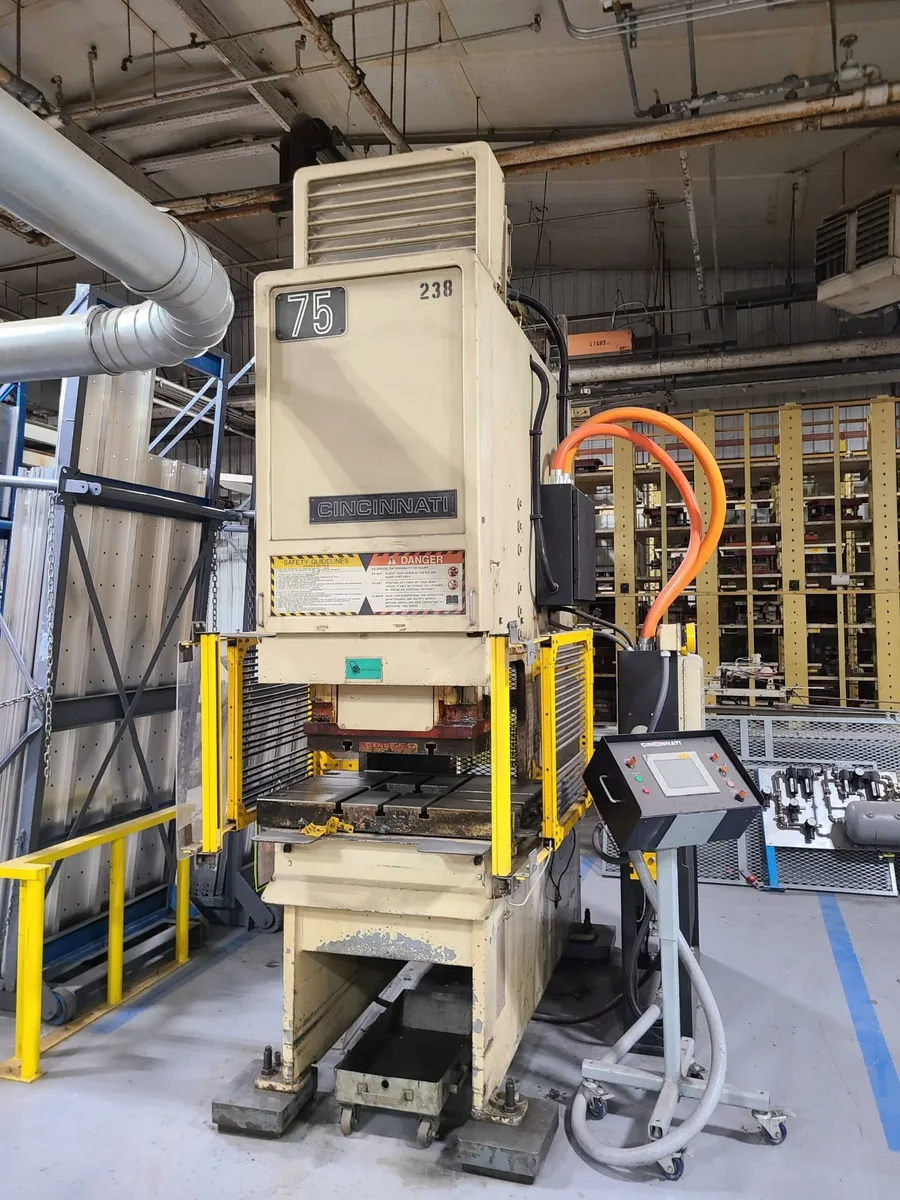

75 TON CINCINNATI-INC "75 OBS" CNC OPEN-BACK GAP-FRAME HYDRAULIC PRESS w/UPDATED CINCINNATI-INC TOUCH SCREEN CONTROL (2021) - SIDE MOUNTED KNOCKOUT

Tonnage Capacity, Low Speed 75 TON

Tonnage Capacity, Medium Speed 42 TON

Stroke Length, Adjustable to 8"

Gap Length 14"

Open Height, Maximum 18.5"

Closed Height, Minimum 10.5"

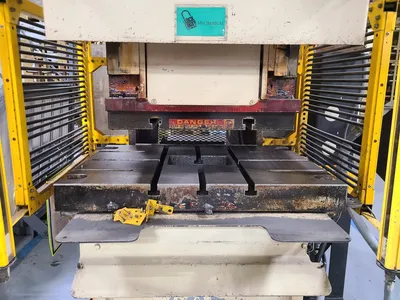

Slide Bolster Area, L-R x F-B 24" x 18"

Bed Bolster Area, L-R x F-B 36" x 24"

Distance Between Housings 25"

Slide Speed, Pressing (High) 600 IPM

Slide Speed, Pressing (Medium) 175 IPM

Slide Speed, Pressing (Low) 60 IPM

Slide Speed, Return (High) 700 IPM

Slide Speed, Return (Low) 450 IPM

Hydraulic Motor, Horsepower 20 HP

Weight, Approximately 17500 LBS

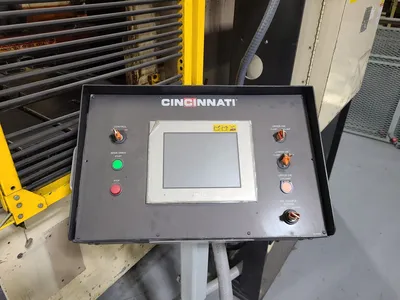

NOTE: This Machine Was Updated By Cincinnati-Inc With A Brand New

Touch-Screen Controller w/Stand And Casters In 2021.

F.O.B. OUR WAREHOUSE
