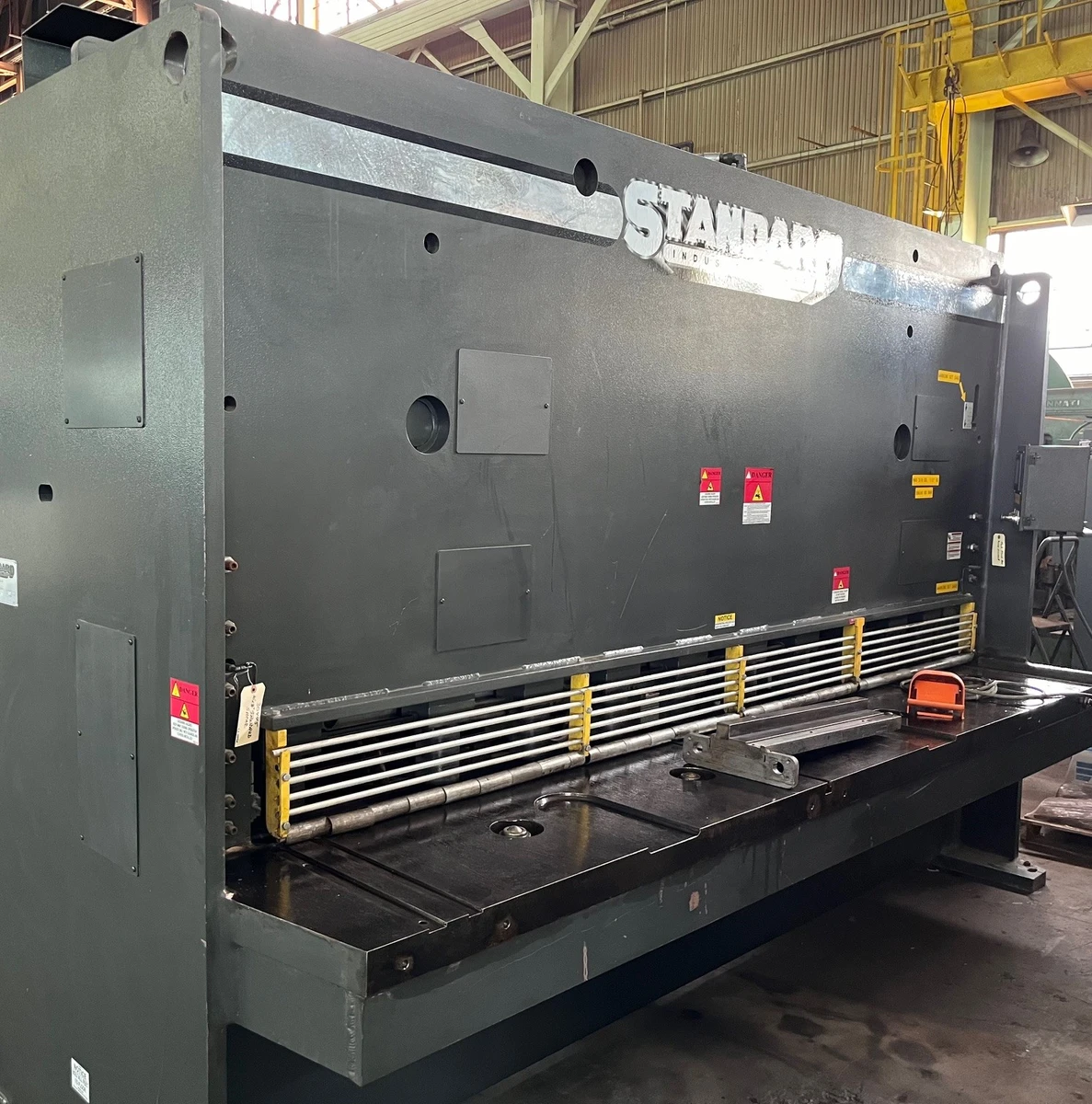

10' X 1/2" STANDARD INDUSTRIAL "AS500-10" CNC HYDRAULIC POWER SQUARING SHEAR w/MITSUBISHI CONTROL - FLOOR STANDING DESIGN
Have one to sell?
$49,500.00 USD
ConditionUsed
1 available

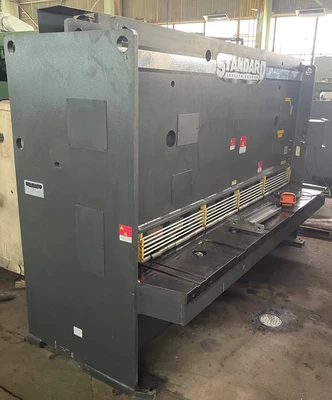

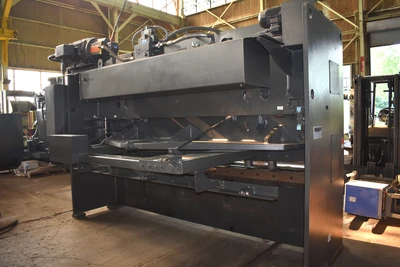

10' x 1/2" STANDARD-INDUSTRIAL CNC HYDRAULIC POWER
SQUARING SHEAR

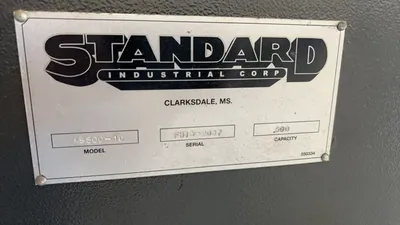

New 2013, Serial No F813-2067, Model AS500-10

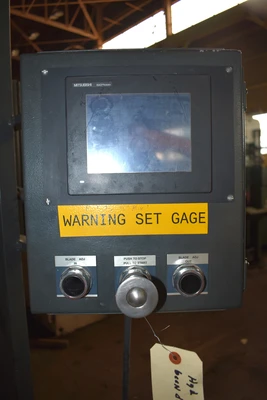

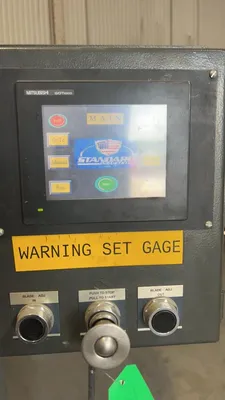

Mitsubishi GOT1000 PLC Control

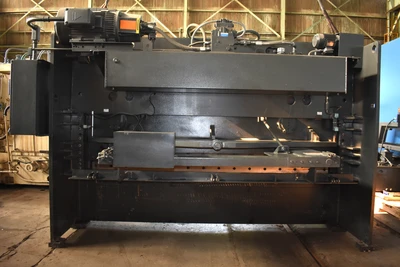

36" Extremely Heavy-Duty Power Back Gauge w/Manual Swing-Up

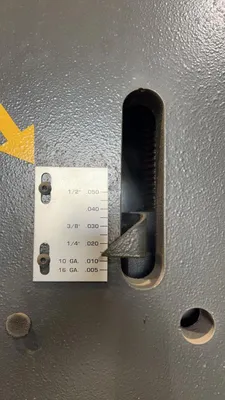

Infinitely Variable Quick Change Blade Gap Adjustment
4' Squaring Arm - Ball Rollers In Table
Hydraulic Hold-Downs
No Pit Required

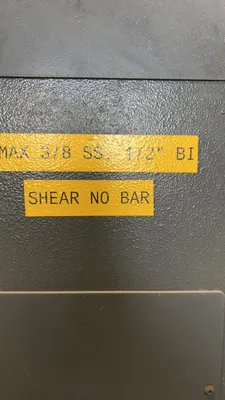

Shearing Capacity, Mild Steel 10' x 1/2"
Shearing Capacity, Stainless Steel 10' x 3/8"
Shearing Tons Available 90 TONS
Number of Hydraulic Hold-Downs 11
Total Hold-Down Pressure 99 TON
Rake Taper, Inch/Foot .4"
Blade Size 1" x 4" x 124"
Strokes Per Minute, Full-Width 9 SPM
Strokes Per Minute, 12"-Wide 24 SPM
Ram Speed Down 99 IPM
Ram Speed Up 179 IPM
Motor, Horsepower 40 HP
Overall Dimensions, L x W 150" x 85"
Overall Height 103"
Weight, Approximately 30000 LBS
NOTE: Machine Appears To Be In Very Good Condition
With A Replacement Price Of $96,485.00.
F.O.B. OUR WAREHOUSE
